Acuvance RAD ESC Black 60688

Acuvance RAD ESC Black 60688

Realizes torqueful output characteristics by adopting new FET

• By adopting a new power type FET, we have achieved more torqueful output characteristics while inheriting the silky feel unique to Acuvance.
• It firmly follows aggressive throttle work from low speed range, enabling delicate and dynamic driving.

Equipped with battery reverse connection protection circuit and “alert LED” in case of reverse connection.

• The XARVIS XX is equipped with the popular reverse battery connection protection circuit.
• Of course, it is also equipped with an “alert LED” to notify you of reverse connection. Prevents ESC board damage due to reverse connection for about 10 seconds.
• This circuit protects the ESC circuit board. We do not guarantee protection for the Chevalier series, standard installed capacitors, or external devices.

PYRAMID Shape design produces higher cooling effect when equipped with FAN

• The world’s first pyramid-shaped top design is used.
• It has a structure that forces the air to escape to the bottom and in all directions, and by suppressing bouncing wind (turbulence of airflow on the top surface) when a FAN is installed, a higher cooling effect and a reduction in the load on the FAN motor are achieved. did.

Hologram cutting

• Adopts hologram cutting technology for aluminum cutting on the top surface.
• It creates a more luxurious and luxurious feel.

Equipped with [torque level] and [torque end point] functions included in XARVIS XX.

• By using the TAOIII or S.BUS compatible transmitter described below, you can use the [torque level] and [torque end point] functions installed in XARVIS XX.
• Torque level – Adjust the torque feeling of acceleration/deceleration.
• Torque End Point – Set the throttle range in which the torque level function operates.
• Torque level and torque end point functions cannot be set or may be set incorrectly when using our motors prior to LUXON BS or motors from other companies.

Compatible with setting changes by TAOIII

• RADSettings can be changed easily using the SET button on the main body, but by using TAOIII, the range of settings and values ​​can be greatly expanded, dramatically improving drivability.
• TAOIII (shipped by our company before May 2022) needs to be updated .
• After updating, select “ESC Select” command on TAOIII.RAD(MC971CR)”.

Wireless communication is possible using FUTABA’s S.BUS compatible transmitter.

• If you are using a Futaba Electronics Co., Ltd. S.BUS compatible transmitter, you can transmit by connecting the separately sold S.BUS link adapter ( OP-15127 ) or S.BUS adapter ( OP-15067 ). You can use the telemetry function to change setting data using the machine’s LCD screen and display motor rotation speed, ESC temperature, battery voltage, etc. on the transmitter in real time.
• It is necessary to update the S.BUS link adapter (shipped by us before mid-June 2022) or S.BUS adapter (all applicable) .
  When updating the S.BUS adapter, in addition to the Windows PC/Update Device Kit II ( OP-15064 ) or III ( OP-15087 ), the separately sold “S.BUS Adapter Update Conversion Cable ( OP-15095) ” is required. )” is required.
• Please contact Futaba Electronics Co., Ltd. for compatible transmitters. (It may be necessary to update the transmitter/receiver.)
• Please note that setting data cannot be saved in the transmitter , so please use TAOIII to save and manage setting data.
• Depending on the content of future updates, the items that can be set by TAOIII and the items that can be set by FUTABA’s S.BUS compatible transmitter may differ.

Status when boost turbo is not in use can be visually confirmed with LED

• When Boost/Turbo is not in use, the standby LED flashes to comply with regulations such as touring tournaments that restrict the use of these functions.

SPEC

• Input voltage                                                                   6.0V~8.5V
• Continuous/instantaneous maximum current        Up to the maximum current generated by the battery
• Applicable motor                                                            Sensored brushless motor *No limit on number of turns (when boost/turbo is disabled)
• Cable size                                                                         AWG 12 (12 gauge)
• Size                                                                                    W30.5×D35.0×H20.5mm (excluding protrusions)
• Weight (ESC body)                                                        48.7g
• Receiver/servo regulator                                              6.0V/3A

Aluminum cases may have sharp edges due to the cutting process, so please handle with care when installing the product in a vehicle or changing the layout.

UPDATARAD/ S.BUS adapter update

You can enjoy the latest functions and feel by updating the firmware (control program). Please refer to this page first , and when you are ready to update, please follow the steps below to update.

Available in 3 Colours

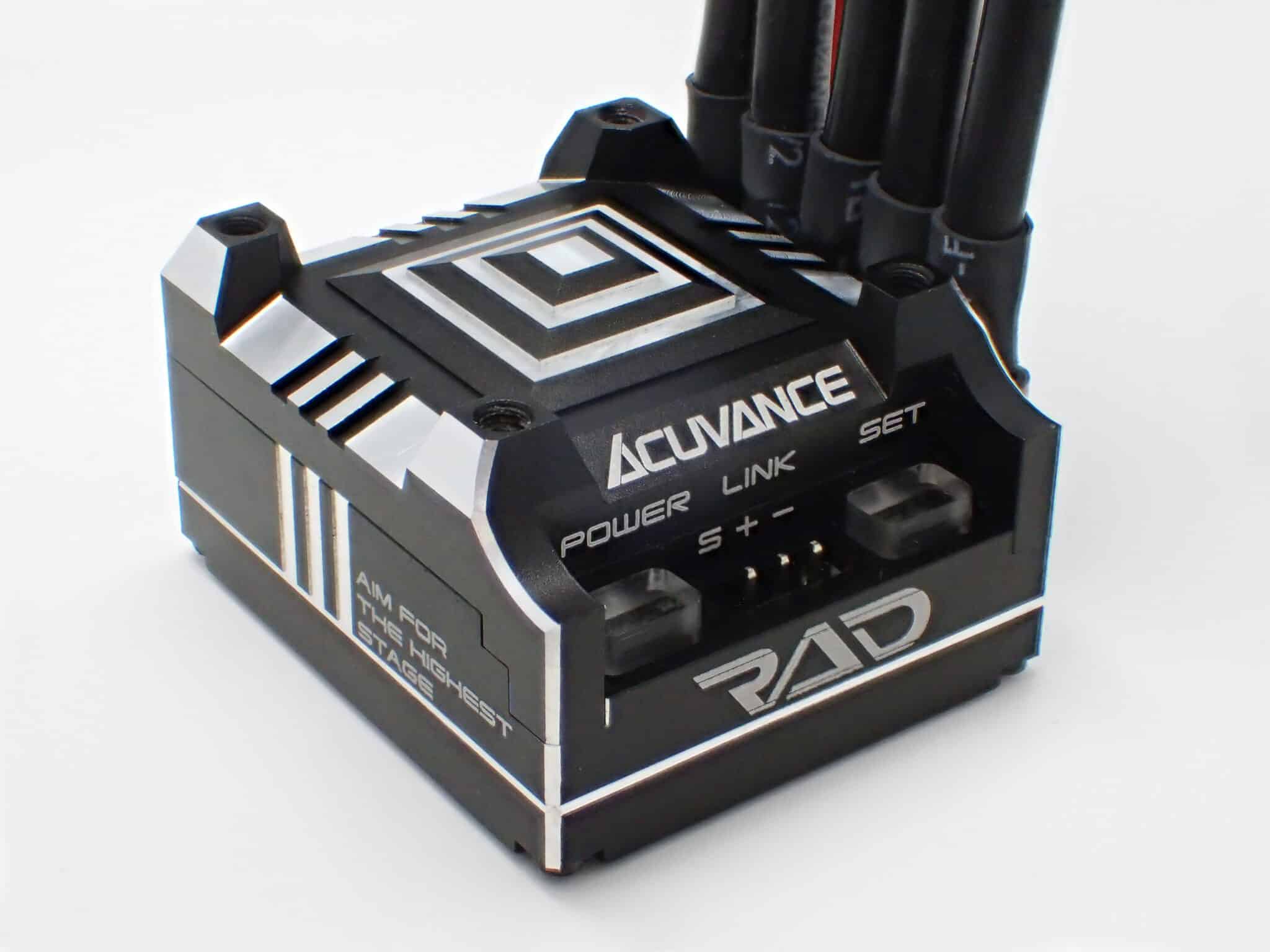

• RAD Black

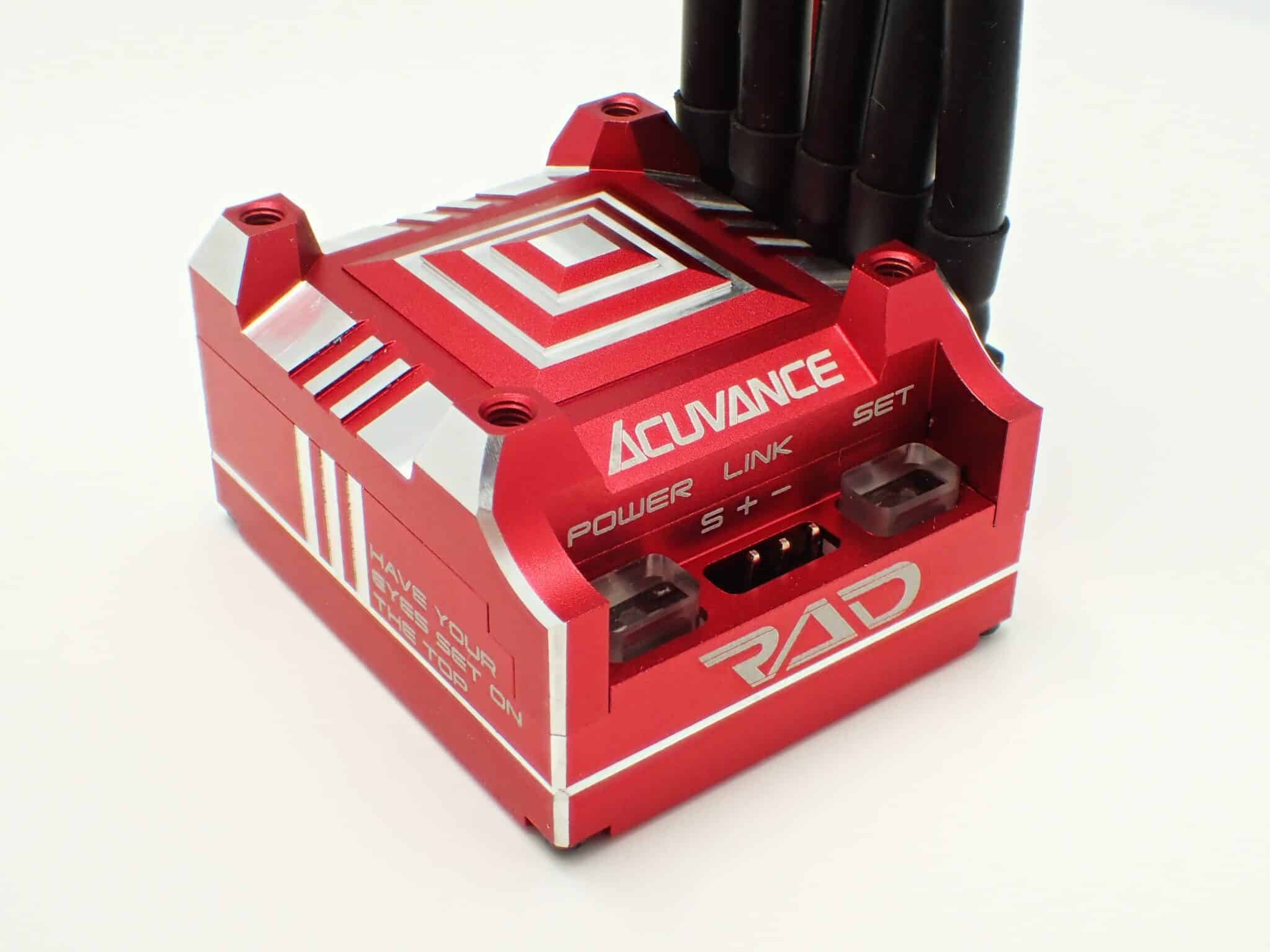

• RAD Red

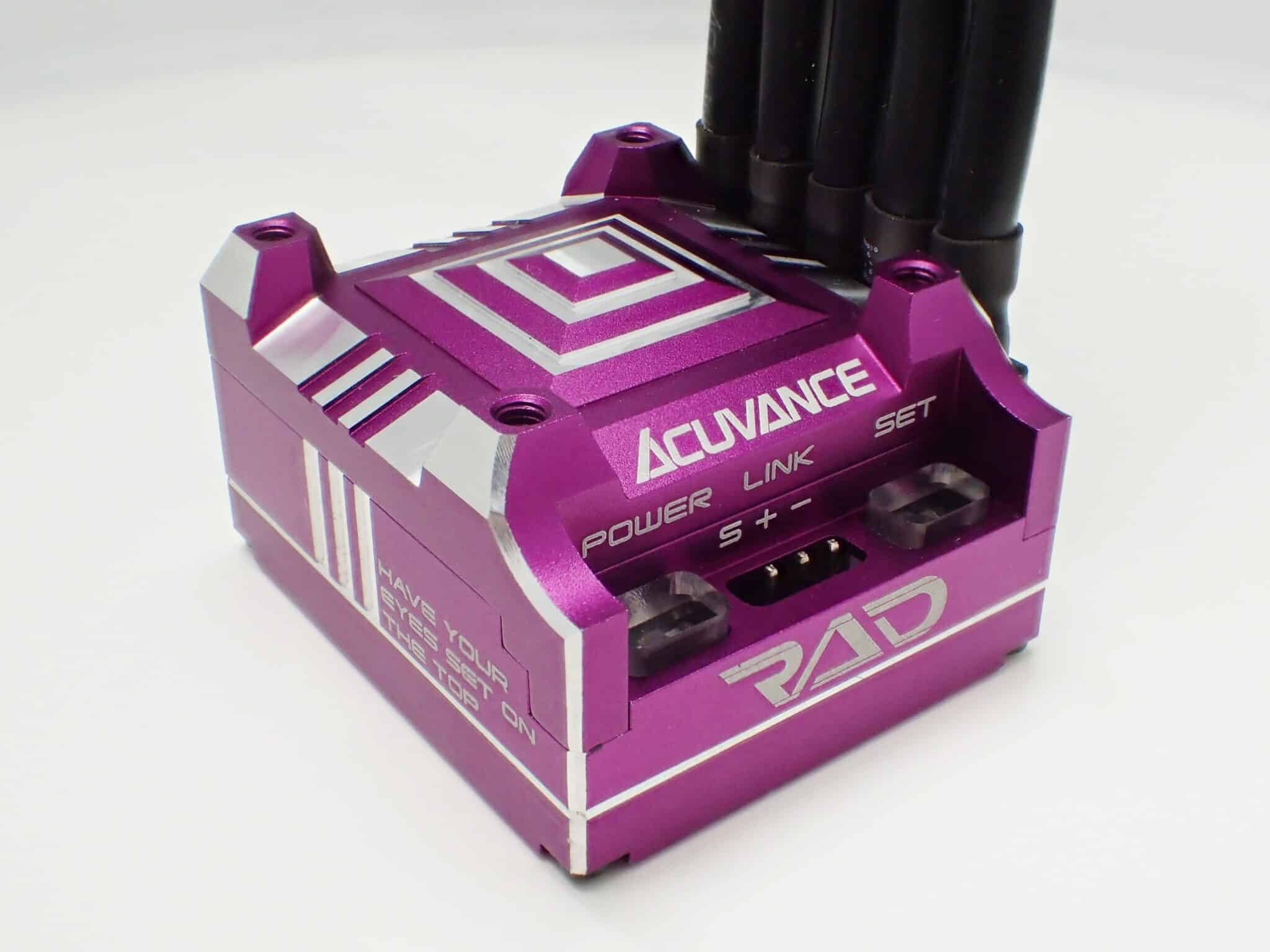

• RAD Purple
