Reve D ASF Aluminum Lightweight Front Knuckles (Pair) RD-001

Reve D ASF Aluminum Lightweight Front Knuckles (Pair) RD-001

Super lightweight! Super stylish!

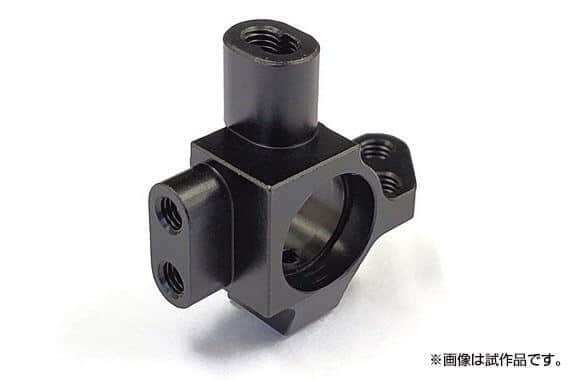

ASL (aluminum super light) front knuckle are here!

Each part has been thoroughly analysed and where possible cut to achieve ultra-light weight and avoid interference with each linkage.
Thorough testing Reve D have carefully selected the mounting positions of the upper arm and tie rod, etc., reducing the difficulty of setting.

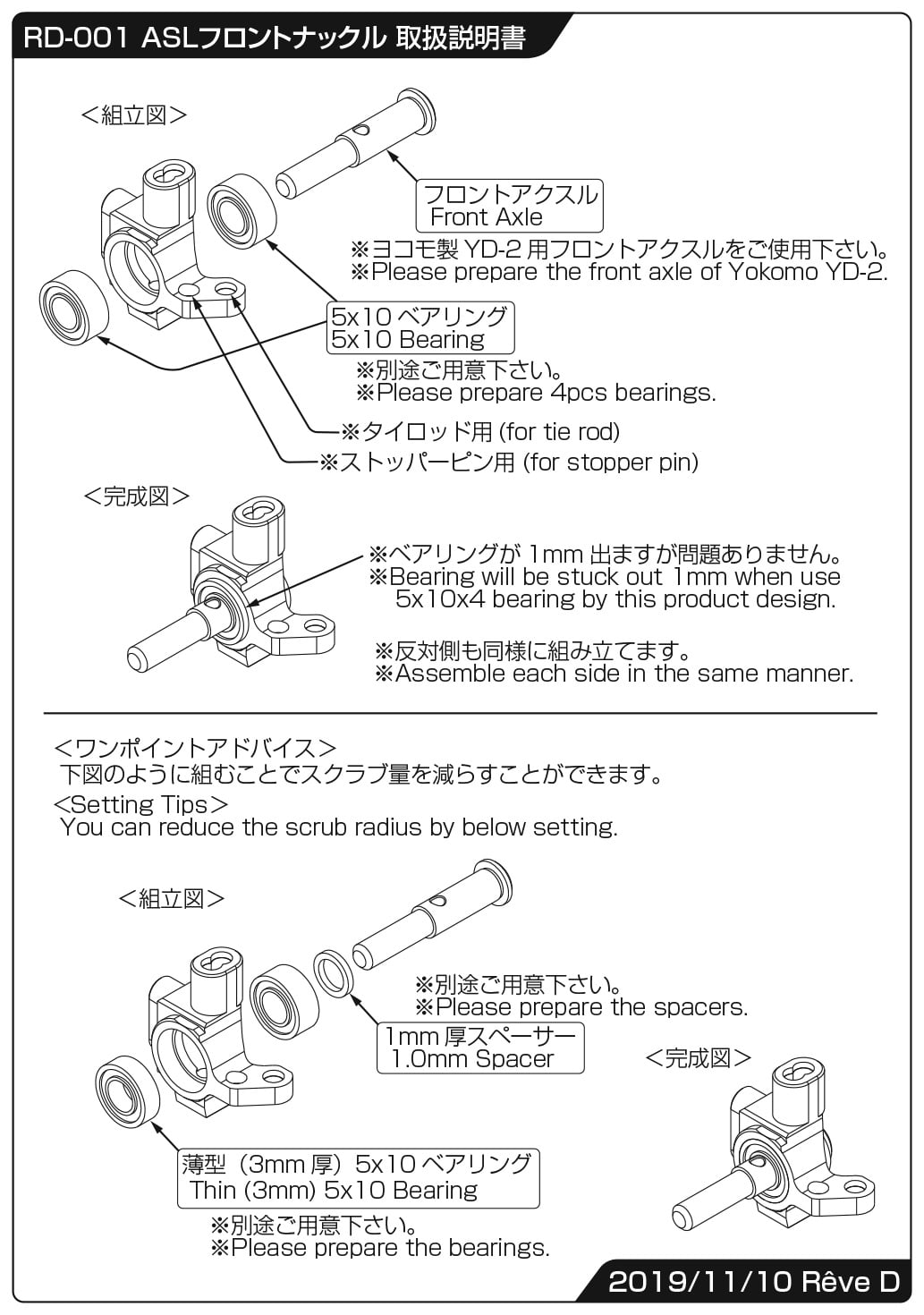

It is possible to use a normal size 10 x 5 bearing (4mm thick) as well as reduce the amount of scrub by using a thin (3mm thick) 10 x 5 bearing on the outside. (In that case, please use a 1.0mm thick spacer inside. Refer to the following instruction manual for details).

Set contents

• This product is a set of front knuckles (one left & one right).

Front axle are not included.

Also see:

• Reve D front axle set
• Black Venom 10x5x4mm Brearing
