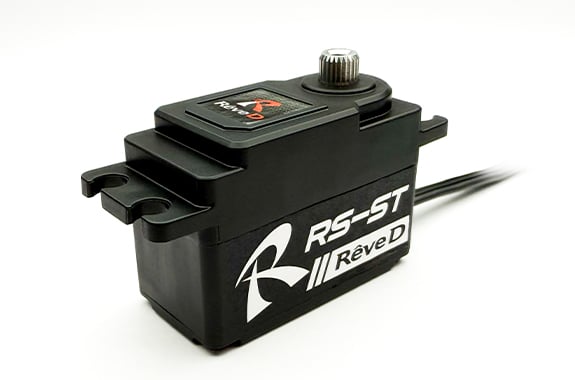

Reve D Hi Torque Digital Servo (2026) RS-STM

Reve D Hi Torque Digital Servo (2026) RS-STM

The RS-ST has been revamped, retaining the smooth operation and torqueful steering feel of the IRC motor for counter-holding during drifting. The middle case has been changed from aluminum to resin, reducing weight (48.5g to 42g) and improving cost performance.

Like previous RS-ST models, it comes pre-installed with default settings optimized for RC drifting. You can also connect to a PC with a USB programmer (sold separately) and customize settings to suit your track layout and skill level.

This is your chance to try out the RS-ST, a high-torque digital servo designed specifically for RWD drifting, offering reliable performance at an affordable price!

Key Specifications

• VOLTAGE: 4.8-7.4V
• SPEED: RWD DRIFT SPEC
• TORQUE: 18kg (7.4V)
• WEIGHT: 42.0g

Dimensions

• Length – 40.8mm
• Width – 20.2mm
• Height – 30.2mm

Because of the high torque specification, the height is about 3.0mm higher than the normal low height case type.

Please use 25T servo horn like the Reve D adjustable horn:-

Setup software

Click the DOWNLOAD button below to download. After downloading, unzip the zip file before use.

• RS-ST-servo-program-V2.0.2

You can check Team Reve D’s setting data here.
