Futaba 4PM 4Ch Radio T-FHSS & R304SB Receiver 4PM Plus

Futaba 4PM 4Ch Radio T-FHSS & R304SB Receiver 4PM Plus

The Futaba T4PM is a professional 4-channel 2.4GHz remote control system for RC cars and boats with backlit 2.7″ display! The T4PM utilises the ultrafast signal transmission T-FHSS SR.

T-FHSS-SR (4 Channels without telemetry but with maximum response speed)
T-FHSS (4 Channels with telemetry)
S-FHSS (4 Channels without telemetry)

Using the new ‘SR’ or Super Response transmission system this is one of Futaba’s fastest responding radio to date, with a frame rate of 2.45 milliseconds! This new system brings in a locked in feel and response that racers and performance drivers will truly appreciate. The T4PM is also compatible with Futaba T-FHSS, S-FHSS so you can select your preferred transmission system for each car to suit your requirements and budget. With T-FHSS telemetry the data can be displayed on the screen or relayed by a synthesized voice using the in-built speakers or headphones (not included).

• T-FHSS, T-FHSS-SR and S-FHSS Modulation
• 2.7″ LCD Display with backlight
• Integrated Antenna
• Telemetry: Temperature*, RPM*, Current*, Rx Battery Voltage, External Voltage (*With optional sensors)
• Servo Link Connection
• Micro SD Card Slot
• 40 Model Memories
• 2 Drive Conditions
• Steering and Gas Speed
• S.BUS Integration
• Jog Stick for Navigation through Menus
• Car-Type Select and Easy Set Up
• Copy Model or Delete Model
• Fail Safe
• Free Mixer
• Brake Mixer (with ABS)
• Drift Mixer with Over-Rev and Throttle Speed
• ESC Link & Dual Regulator Mixer
• Gyro-Mixer
• LED Control for CPS-1
• Steering with Ackermann
• Gas Control (Programmable Mixer)
• Lightest Transmitter in its Class

Included in the Box

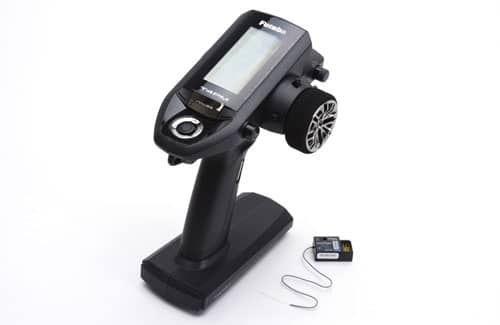

• Transmitter T4PM
• Receiver R304SB
• Battery holder
• Manual

Required to Complete

• 3x ‘AA’ batteries

Note: To get the best from the Futaba SR system you can update many Futaba SV servos using the 7PX controller itself to activate SR mode within them. The following servos are SR compatible BLS371SV, BLS471SV, BLS571SV, BLS671SV, BLS671SVi, S9372SV & S9373SV.

Specification

• Model Memory: 40
• Modulation: T-FHSS SR, T-FHSS & S-FHSS
• Receiver: R304SB (Inc.)
• S.BUS: S.Bus & S.Bus2
• Weight: 390g
• Channels: 4
