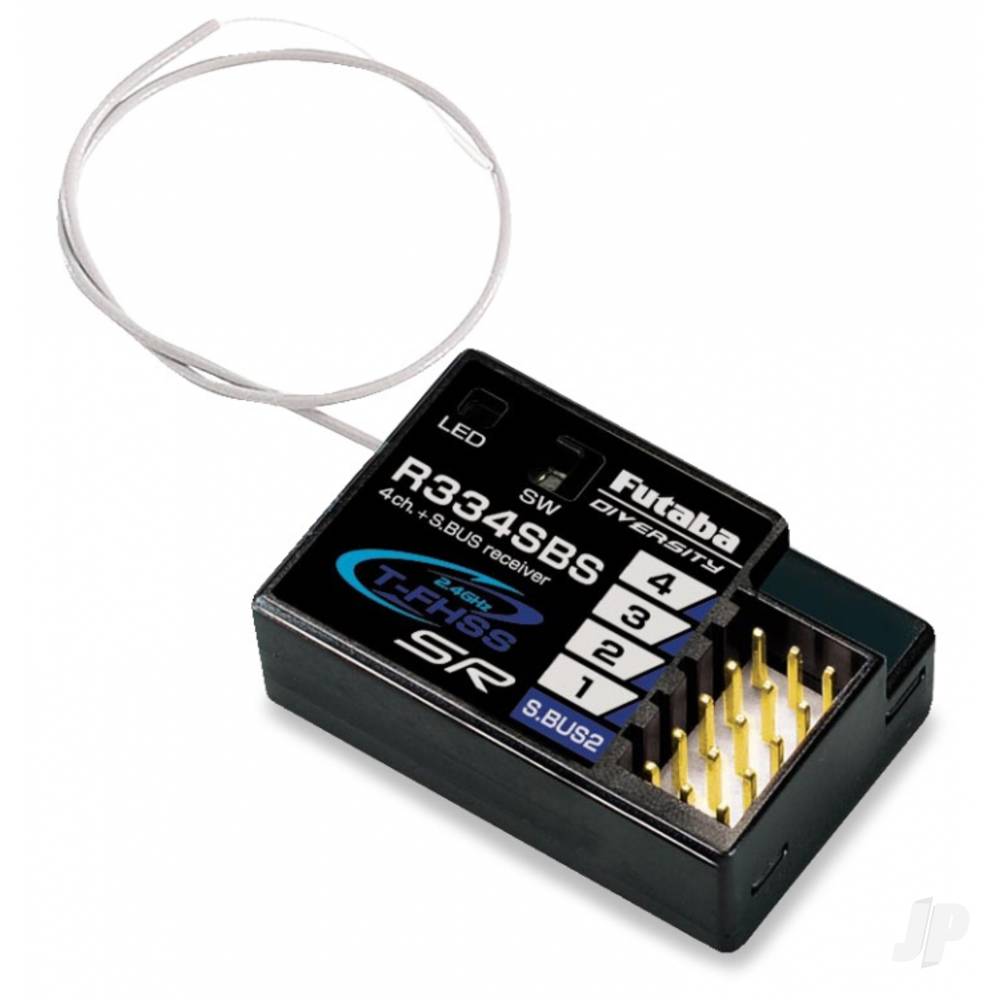

Futaba T7XC 7-Channel Surface Radio 7XC with R334SBS

Futaba T4GRS 4Ch Radio T-FHSS & R304SB with Telemetry CB4GRS

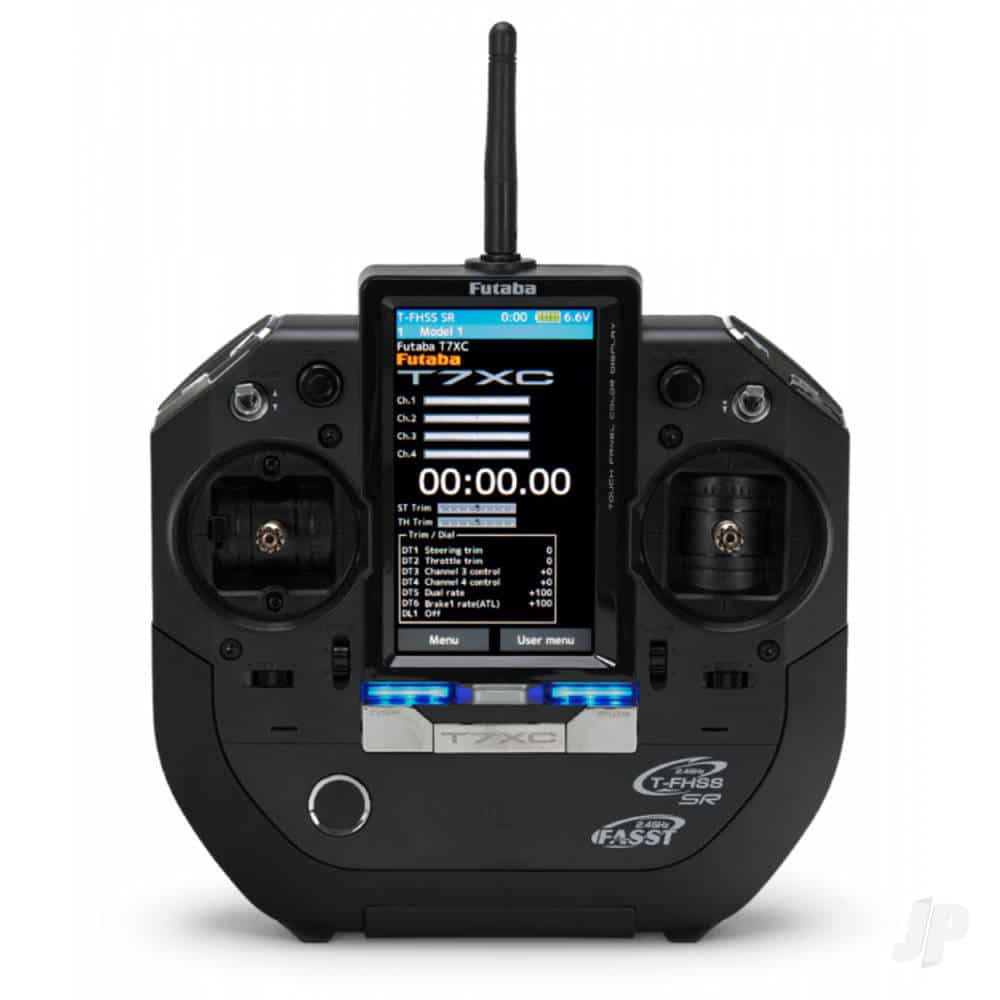

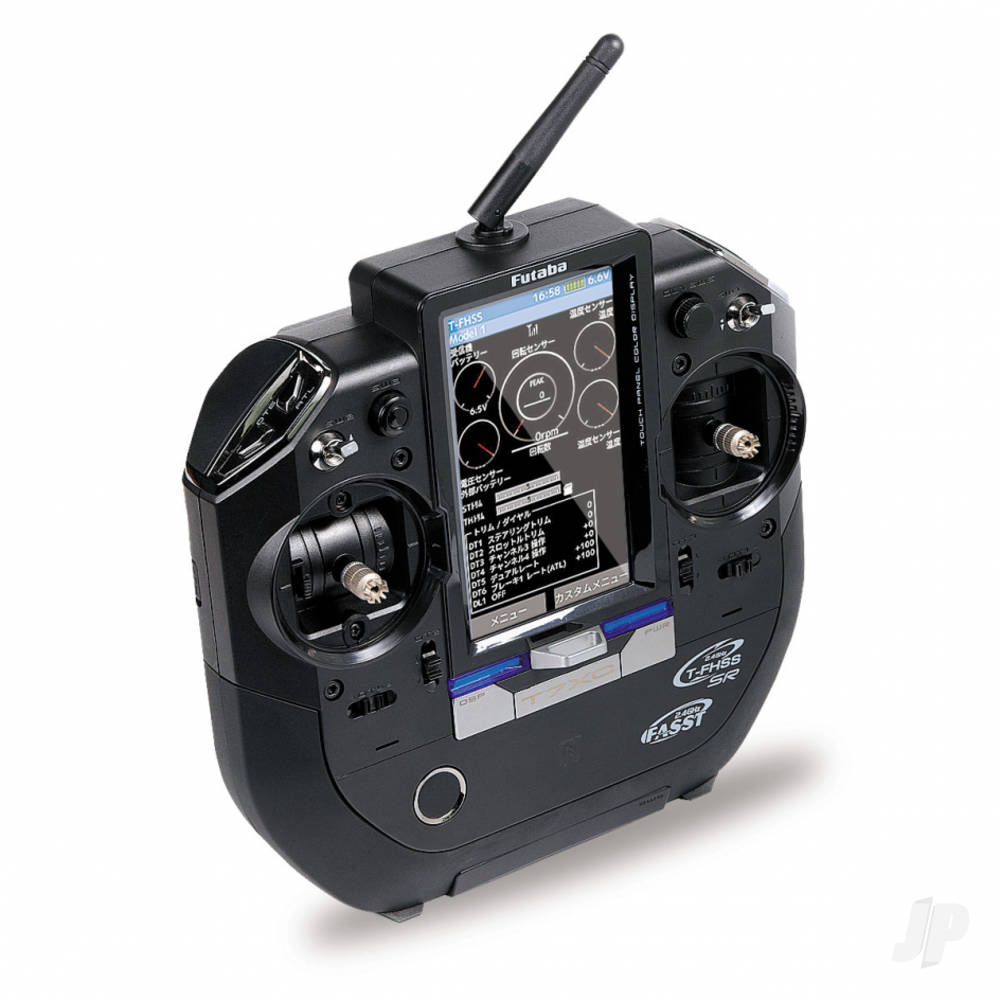

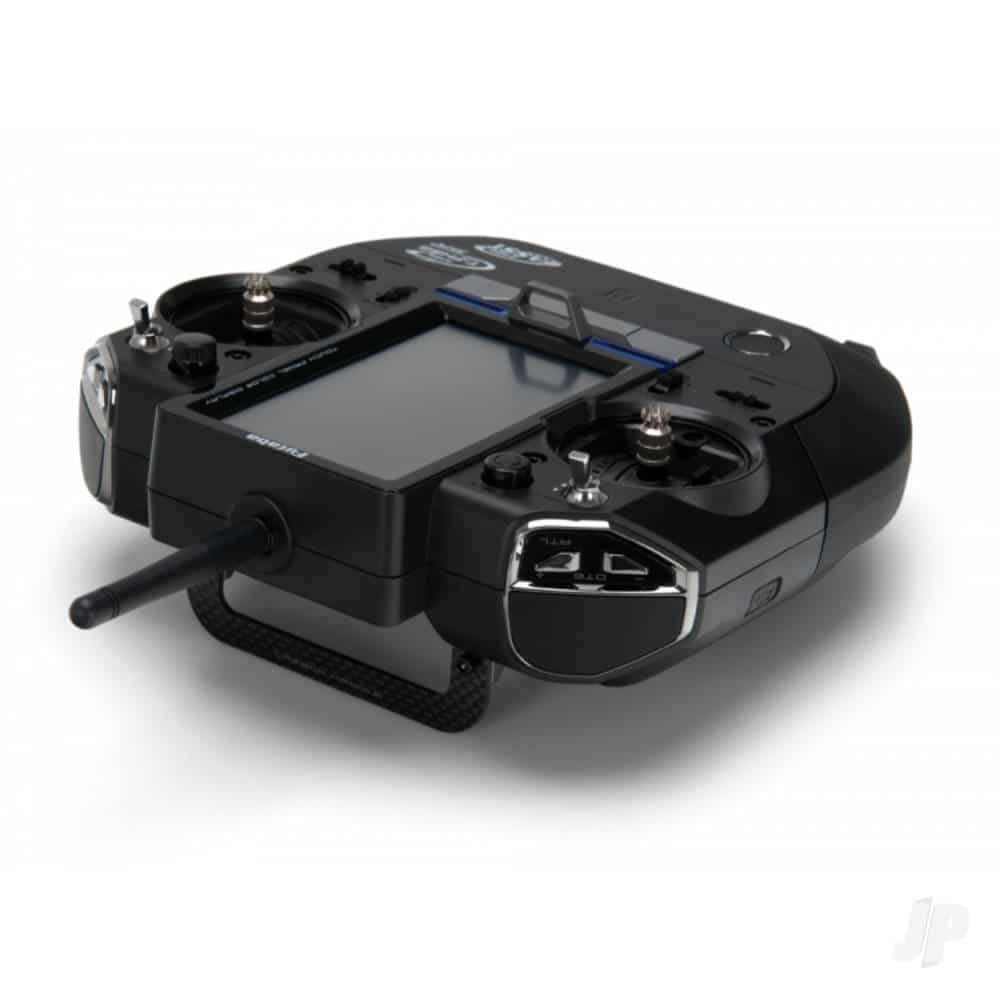

The T7XC is a model from Futaba aimed at discerning drivers who love stick-type clubs.

Direct control feeling with T-FHSS SR communication and SR mode
servo: 　Equipped with T-FHSS SR communication that makes use of SR mode servo to achieve response that surpasses conventional digital servos.
Set the communication system and servo mode (SR / digital, etc.) on this receiver setting screen.
Telemetry function settings are also performed on this screen.


Telemetry can only be used in T-FHSS mode. It cannot be used in other modes (T-FHSS SR, S-FHSS, FASST-C2, MINI-Z T-FHSS).

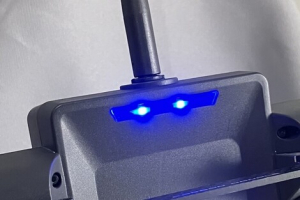

When telemetry is OFF, the “Telemetry OFF Sign” function lights up the LED on the back of the LCD monitor to alert third parties.

• Maximum 7ch compatible (at S-FHSS)

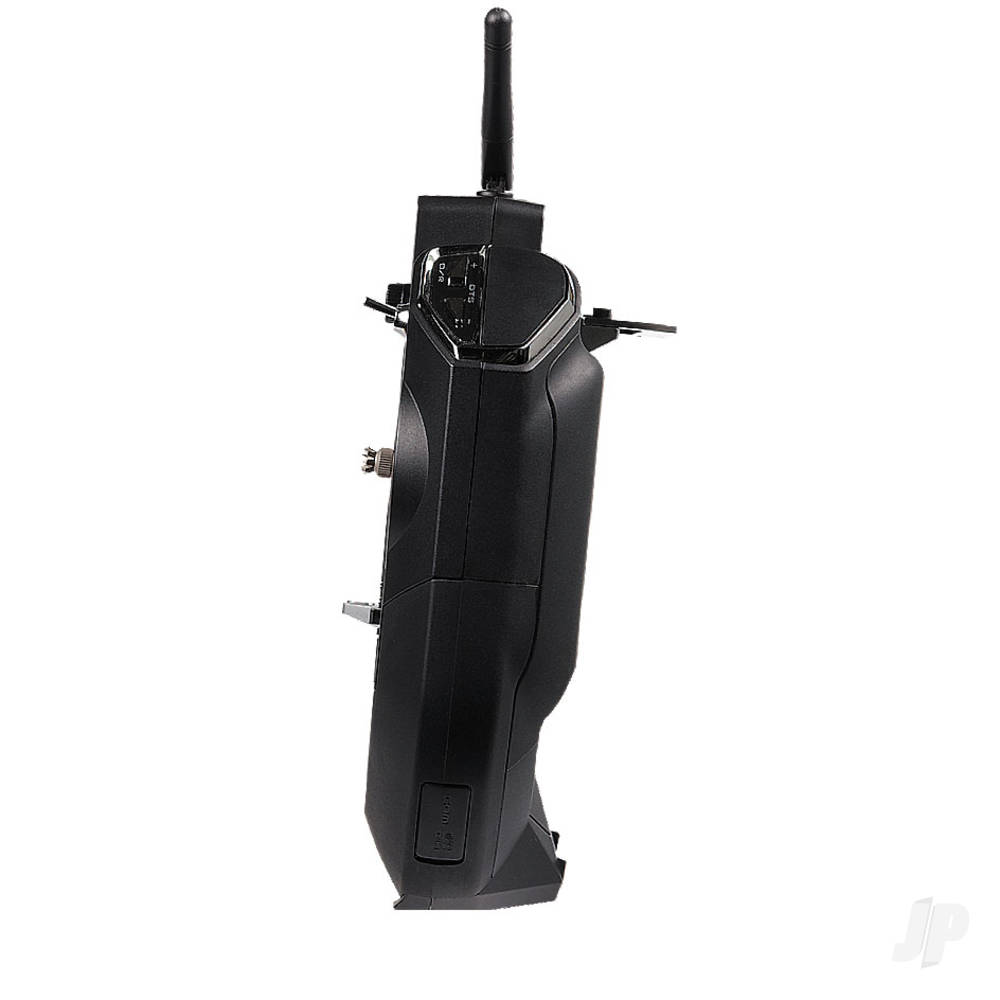

• Slim body: The thinnest body in its class covers all required positions for the driver.
• Home button: You can quickly display the settings screen or assign it to your preferred functions without having to operate the touch panel.

Variable throttle stroke: You can adjust the throttle stick angle to your liking. (The throttle stick is set to its widest when shipped.)

• Throttle neutral adjuster: The neutral position can be adjusted within the range of 5:5 to 7:3.
• Stick tension adjuster: Allows you to adjust the spring strength of both the steering and throttle sticks.

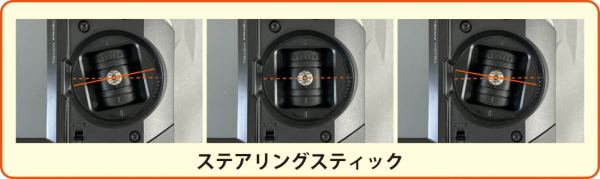

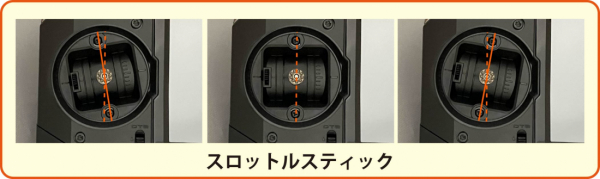

• Stick angle adjuster: Allows you to adjust the angle of the stick stroke axis.

Equipped with a micro SD card slot: The micro SD card is used to store model data, telemetry data, and for software updates. (Micro SD card sold separately. Supports SD/SDHC, not SDXC)

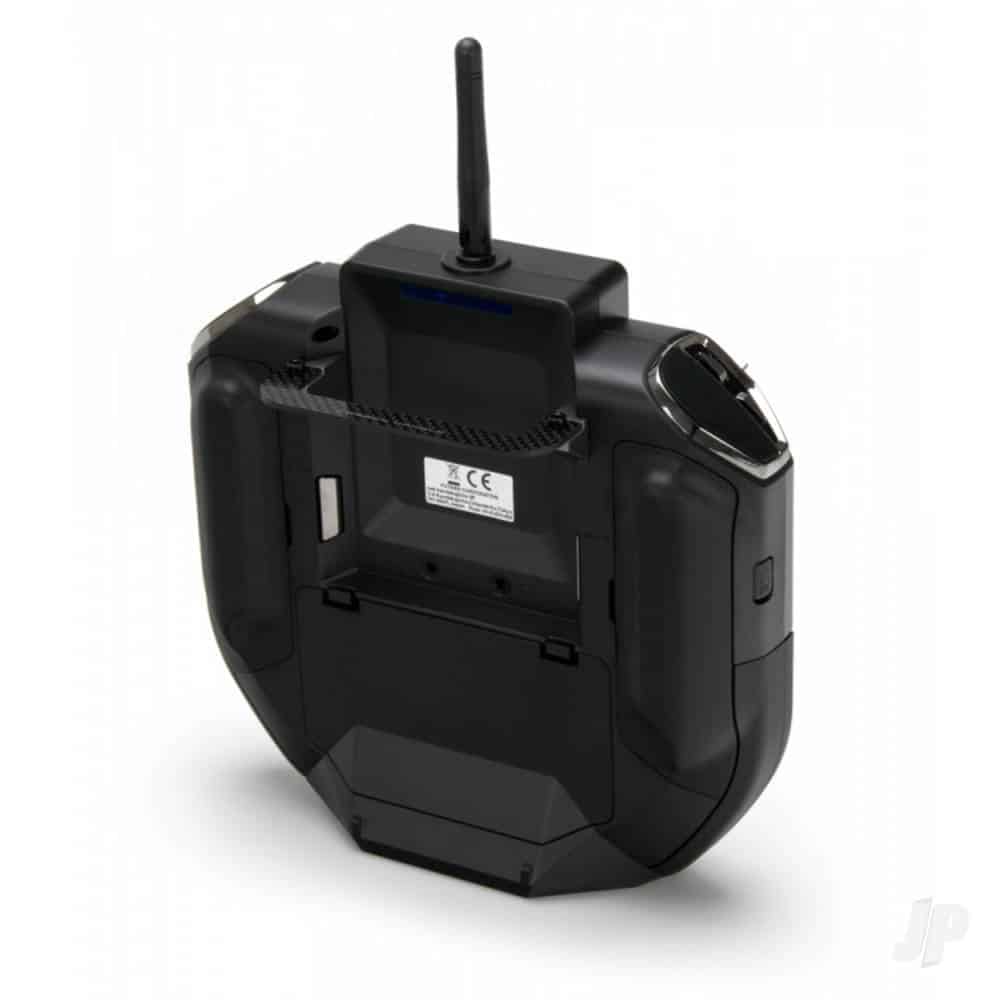

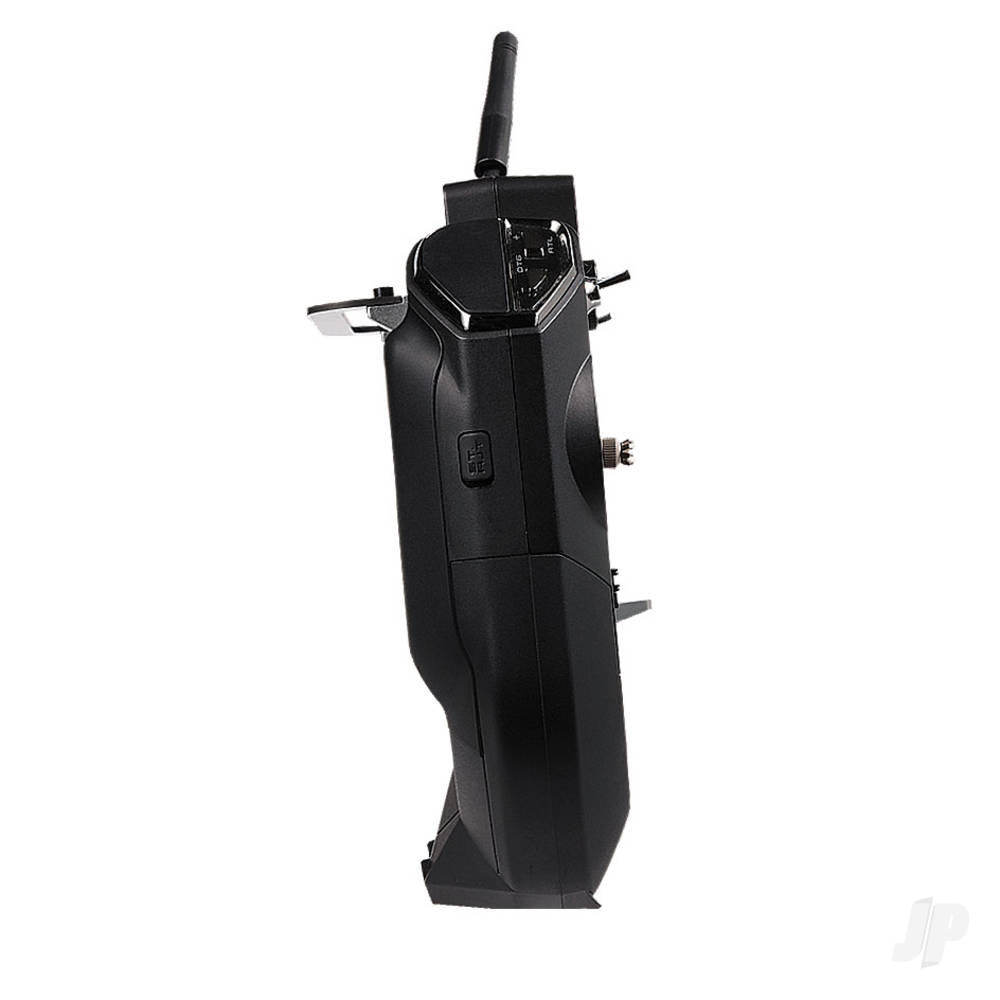

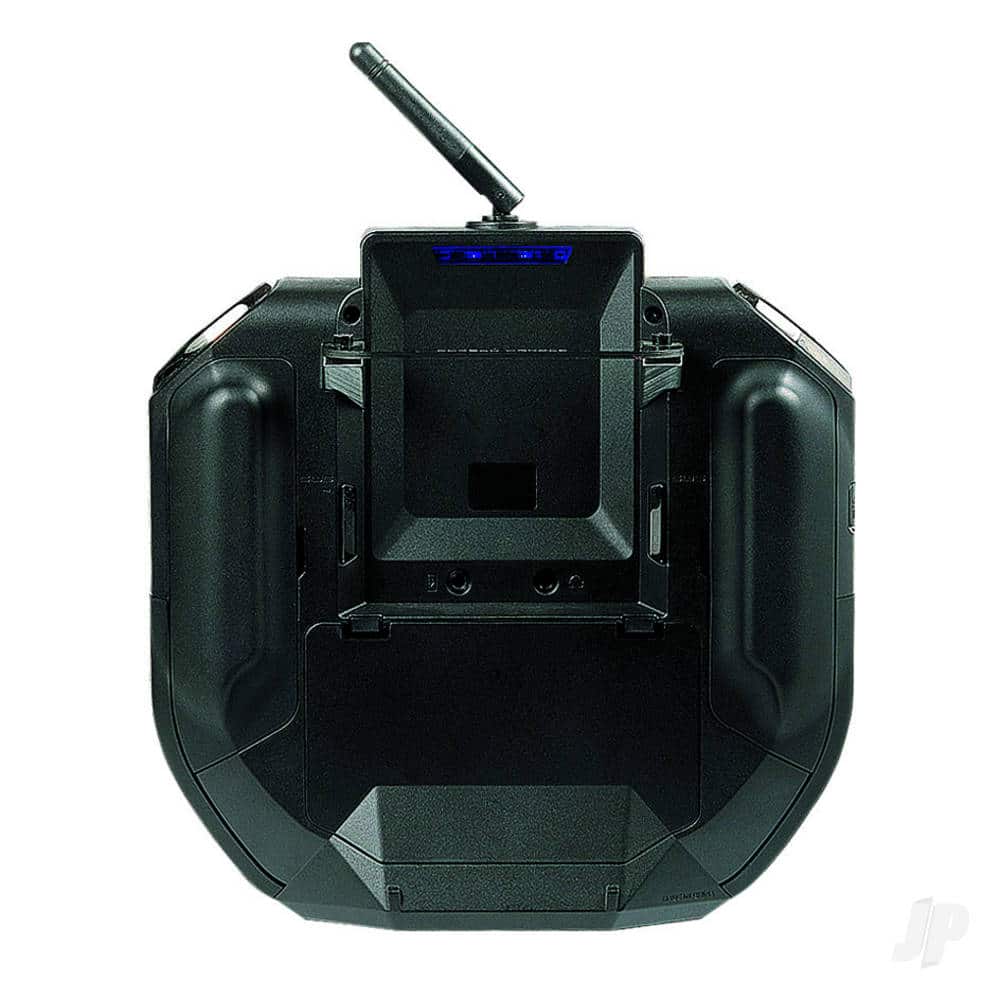

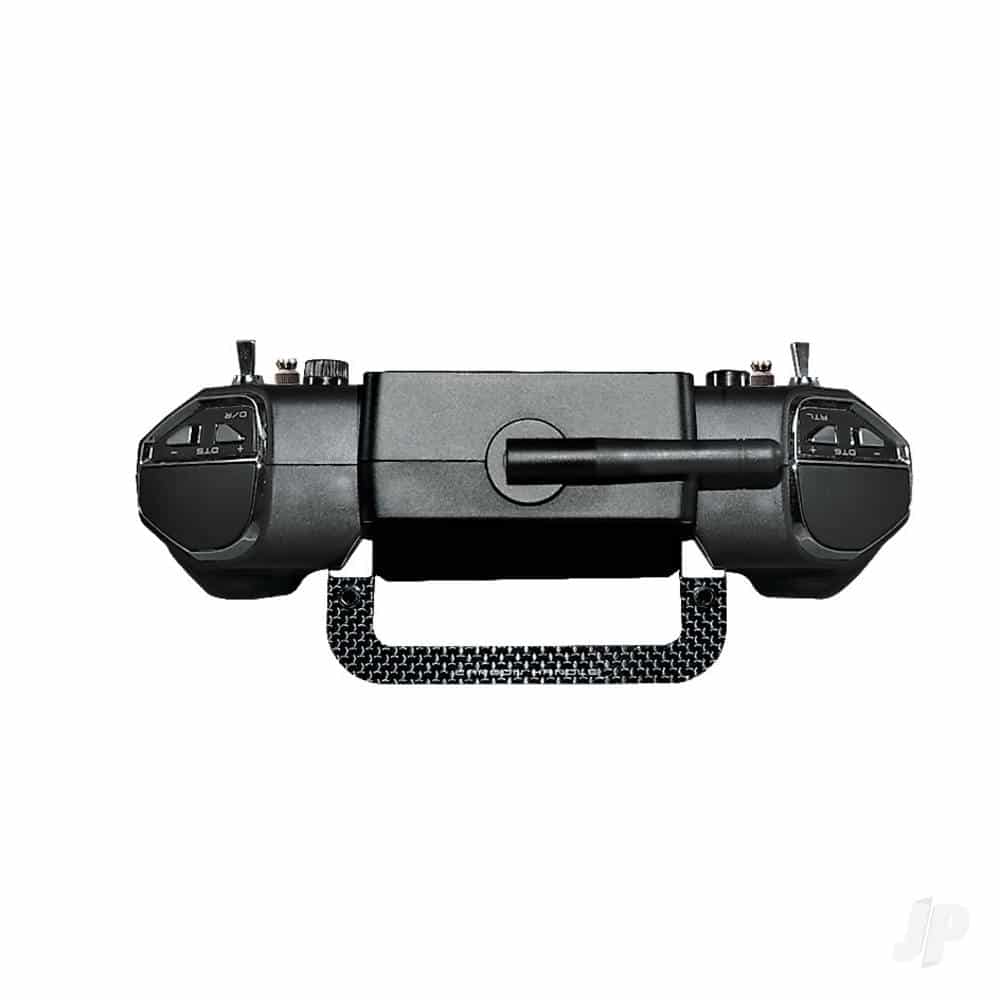

• Switches: Switches for various settings and operations are also provided on the bottom area (body switch) and back (paddle switch) of the transmitter body.

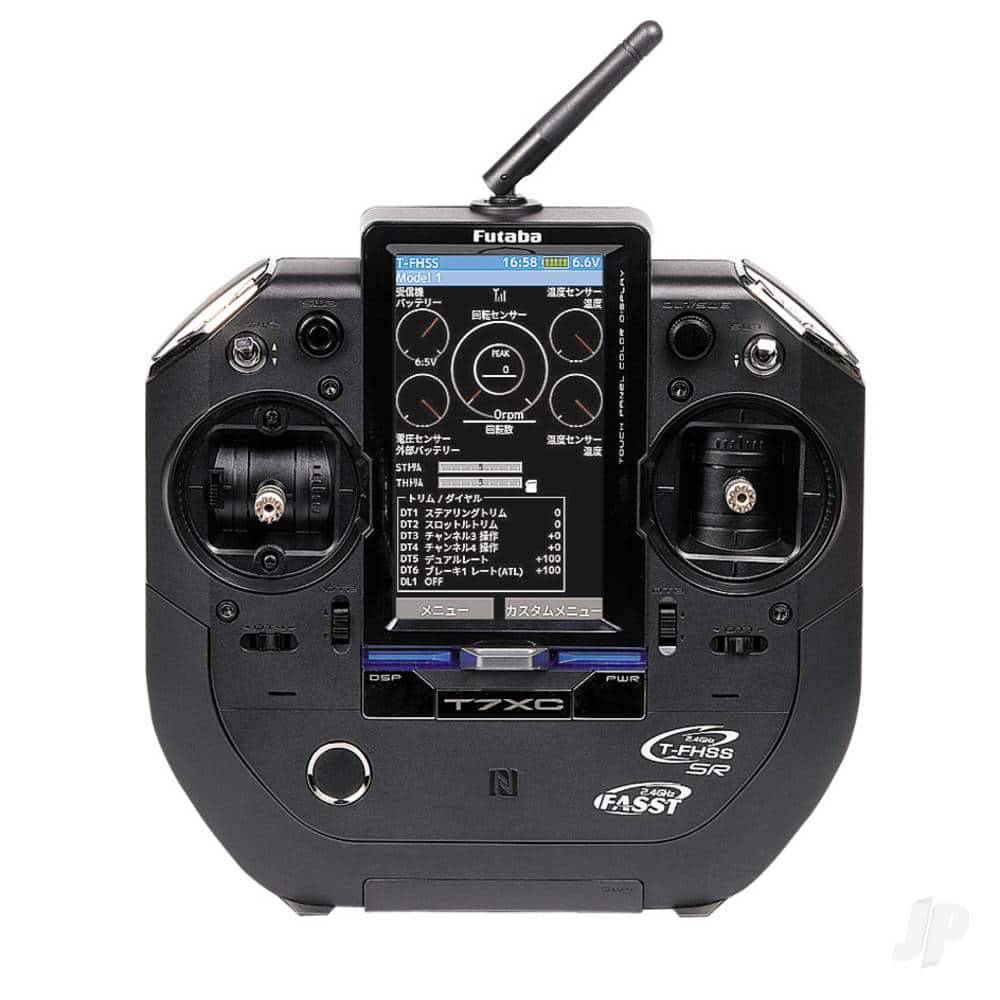

• Wide-viewing angle full-color LCD + touch panel: By placing the LCD screen at the top, you can easily check the settings while driving.
• Received the Good Design Award in 2018, received two patents, and has two design (including partial design) registrations

Functions and Specifications

Setup Menu

• Receiver settings ( compatible with T-FHSS SR, T-FHSS, S-FHSS, FASST-C2 and MINI-Z)

For MINI-Z: Only compatible with T-FHSS (MINI-Z EVO mode). MINI-Z EVO2 mode/MINI-Z FHSS mode cannot be used.

Acceleration

• Condition
• Idol Up
• Channel limiter: Allows you to limit the maximum servo movement.
• Channel setting: Function to assign steering or throttle to any channel.
• Throttle mode
• Sub trim
• Trim/dial settings
• Switch settings
• Endpoint, reverse, D/R, ATL, failsafe, servo view

Model Menu

• Model selection, model copy
• Model name
• Model deletion
• Data reset

Mixing Menu

• Steering mixing
• Brake mixing
• Gyro mixing
• 4WS mixing
• Dual ESC
• CPS mixing (1, 2, 3): When using CPS-1 (optional), it is possible to set the LED lighting pattern, etc.
• Tank mixing: Mixing for tracked vehicles such as tanks.
• Program mixing (1,2,3,4,5): Mixing can be applied between any channels.
  • For example, the amount of gyro gain can be varied according to the amount of throttle and steering operation, allowing the following settings:
    To make the car turn more aggressively when braking → Reduce the gyro gain only when braking
    To make the car more stable when accelerating → Increase the gyro gain when the throttle is ON
    To reduce hunting when driving on a straight line → Reduce the gyro gain only when the steering is near neutral
• Tilt mixing: This type of mixing is effective on boats.

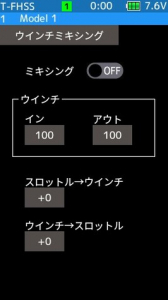

• Winch mixing: Two-way mixing between the throttle and winch allows the vehicle and winch to be operated simultaneously with a single control.

Racing Menu

• Curve (EXP)
• Speed: Can be set separately for steering and throttle. The throttle also has a “curve” mode that is effective for drag cars.

Traction control

• ABS
• Start
• Engine cut

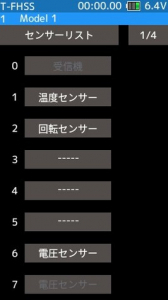

• Telemetry menu, sensor list

Accessories Menu

• Timer, lap list
• Home button settings

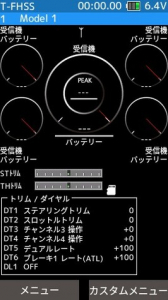

• Home screen display: You can switch to servo view, telemetry view, etc.

• Index table: You can display the index table for DD cars.
• Gear ratio table
• S.BUS Servo: Allows you to configure the S.BUS servo.
• MC (ESC) link: Compatible with MC970CR and MC971CR
• Gyro Link: Allows you to set the gyro.

System Menu

• Display settings: Backlight, touch panel correction, etc. can be performed.
• Audio: You can adjust the volume of the operation sounds of each switch, alarm sounds, and telemetry guides.
• Battery settings: By setting the battery type, the appropriate battery alarm voltage will be obtained.
• Adjuster: For correcting the steering stick and throttle stick.
• Receiver update: Updates can be performed via the transmitter.
• Date/time, LED settings

Accessories

• Transmitter battery FT2F1700BV2 x 1 *Installed at the time of shipment (connector is removed)
• Charger LBC-34D P × 1 piece
• Receiver connector dust cover x 3
• Throttle ratchet plate x 1
• Instruction manual x 1
• Mini screwdriver x 1
