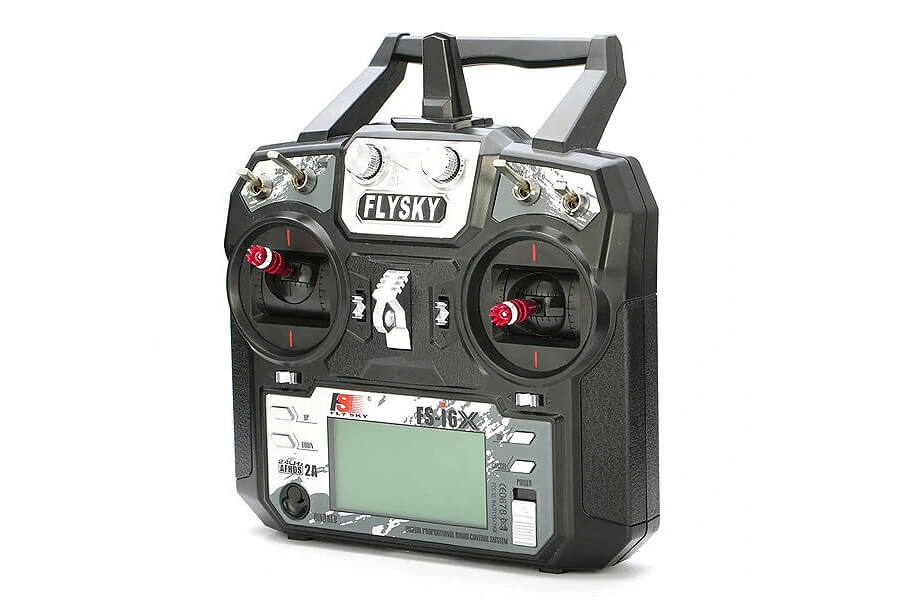

FlySky FS-I6X 6Ch 2.4Ghz Radio System with IA6B Receiver Mode 2 FS-I6X-IA6BM2

FlySky FS-I6X 6Ch 2.4Ghz Radio System with IA6B Receiver Mode 2 FS-I6X-IA6BM2

The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY’s AFHDS technology is considered to be one of the leaders in the RC market today.

Features

Bi-directional Communication

Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.

Multi-channel Hopping Frequency

This system bandwidth ranges from 2.408GHz to 2.475GHz. This is pided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.

Omni-directional Gain Antenna

The high efficiency Omni-directional high gain antenna cuts down on interference, while using less power and maintaining a strong reliable connection.

Unique ID Recognition System

Each transmitter and receiver has it’s own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.

Low Power Consumption

The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.

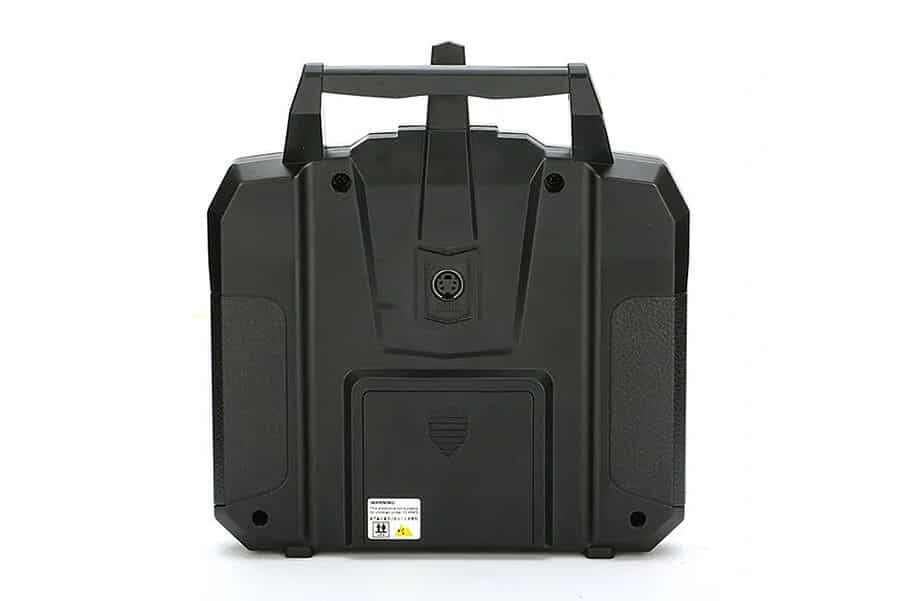

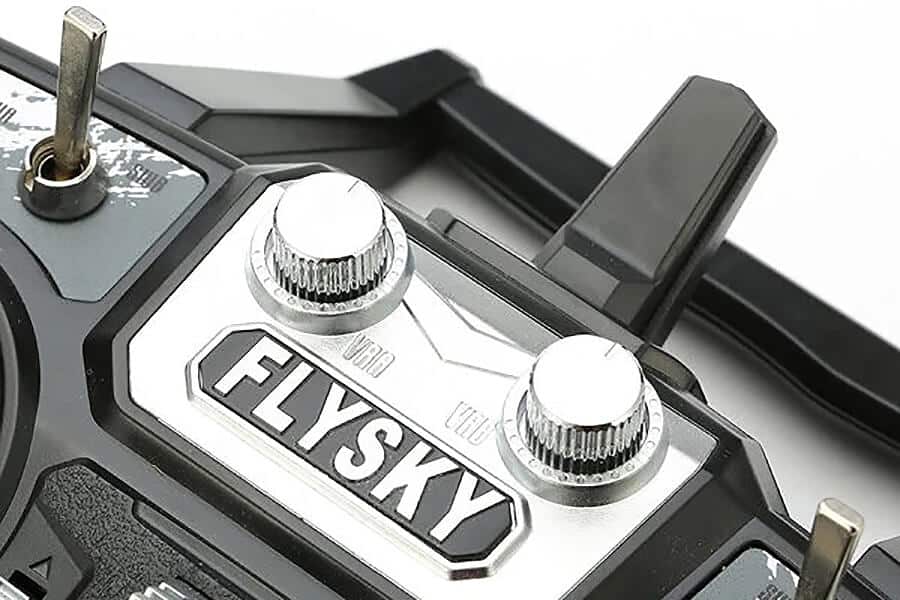

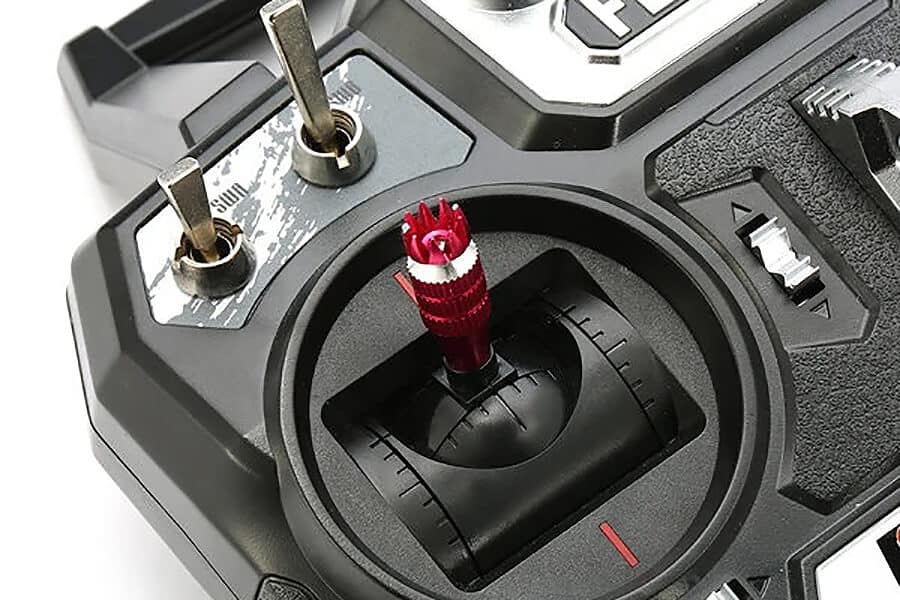

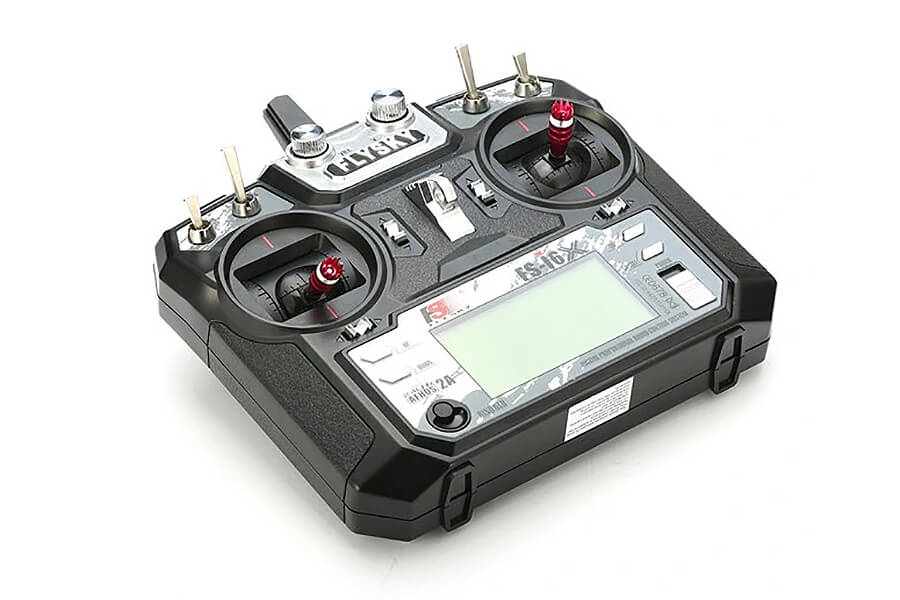

Specifications (Transmitter)

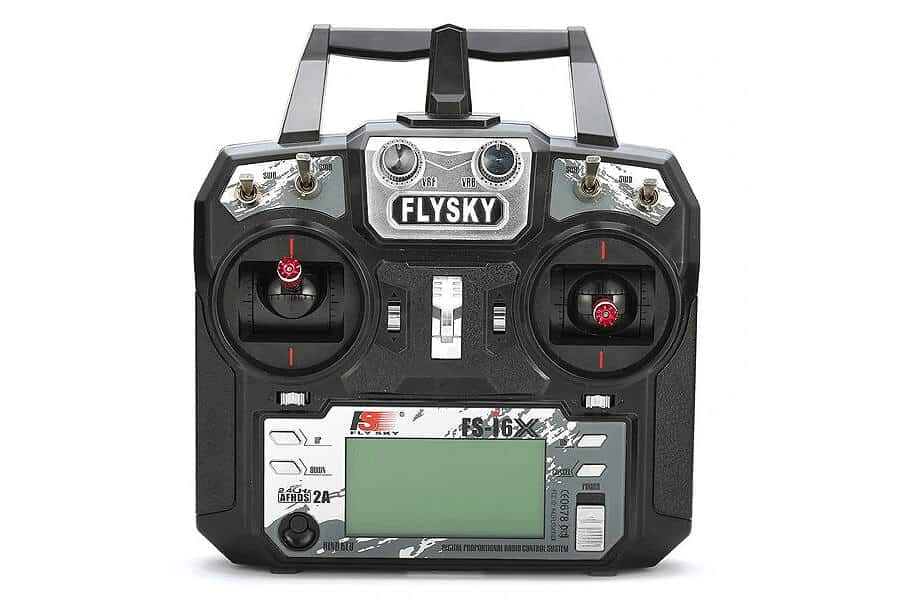

• Item: FS-i6X RC Transmitter
• Channel: 6-10 (Default 6CH)
• Model Type: Fixed-Wing/Gliders/Helicopter
• Mode (optional): Mode 2 (Left Hand Throttle)
• RF Range: 2.408-2.475GHz
• RF Power: < 20dBm
• RF Channel: 135
• Bandwidth: 500KHz
• 2.4GHz System: AFHDS 2A / AFDHS
• Modulation Type: GFSK
• Stick Resolution: 4096
• Low Voltage Warning: < 4.2V
• DSC port: PS/2 Port PPM
• Chargeable: No
• Antenna Length: 26mm (Dual Antenna)
• Weight: 392g

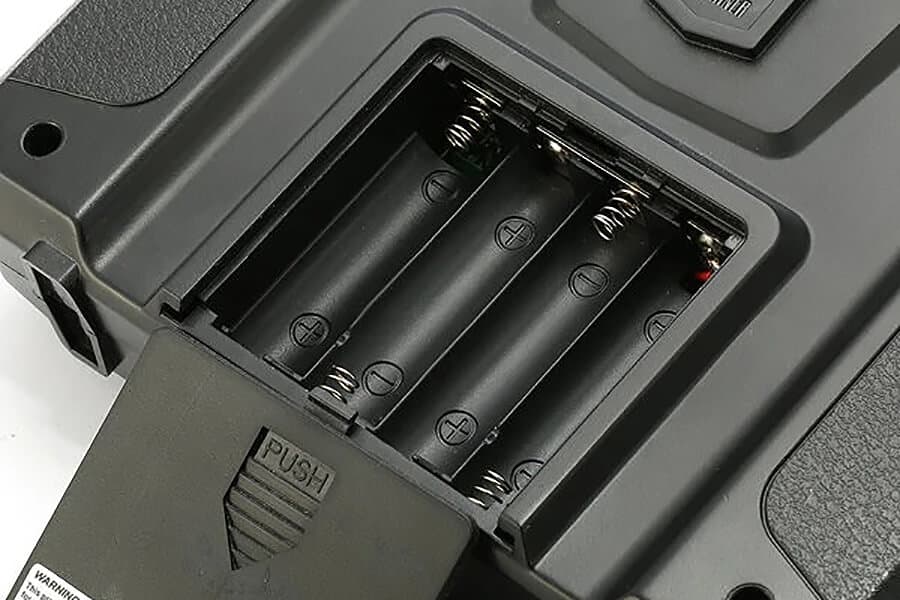

• Power: 6V DC 1.5AA*4
• Display: STNTransflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlight
• Size: 174x89x190mm
• On-line Update: Yes
• Colour: Black
• Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

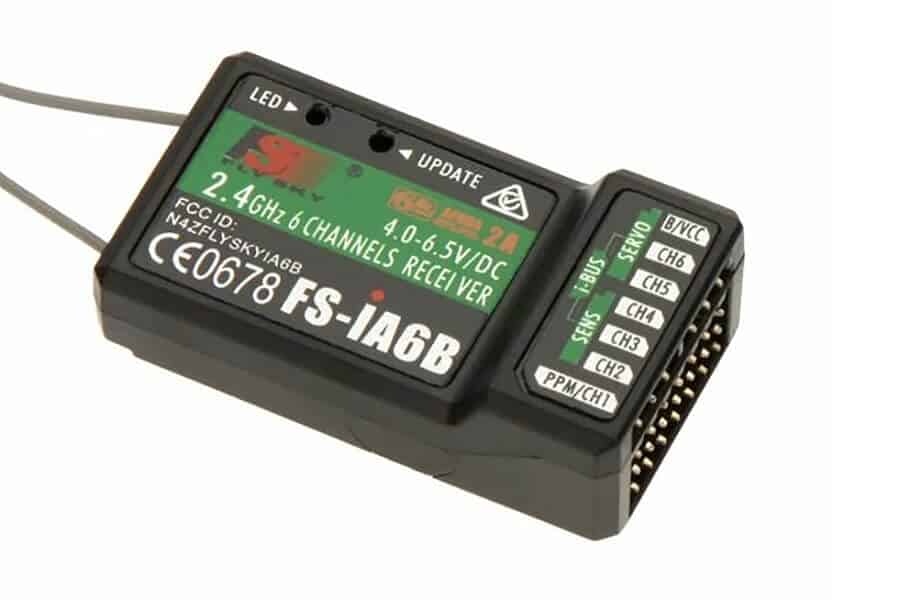

Specifications (Receiver)

• Channel: 6
• Frequency Range: 2.4055–2.475GHZ
• Band Width Number: 140
• Transmitting Power: ≤ 20dBm
• RF Receiver Sensitivity: -105dbm
• 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
• Encoding: GFSK
• Antenna Length: 26mm * 2 (dual antenna)
• Input Power: 4.0-6.5V DC
• Dimension: 47 x 26.2 x 15mm
• Weight: 14.9g
• Colour: Black
• i-Bus Interface: Yes
• Data Acquisition Interface: Yes
• Model Type: Airplane / Gliders / Helicopter
• Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

What’s Included

• 1 x Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter
• 1 x Flysky A6B i-BUS Receiver
