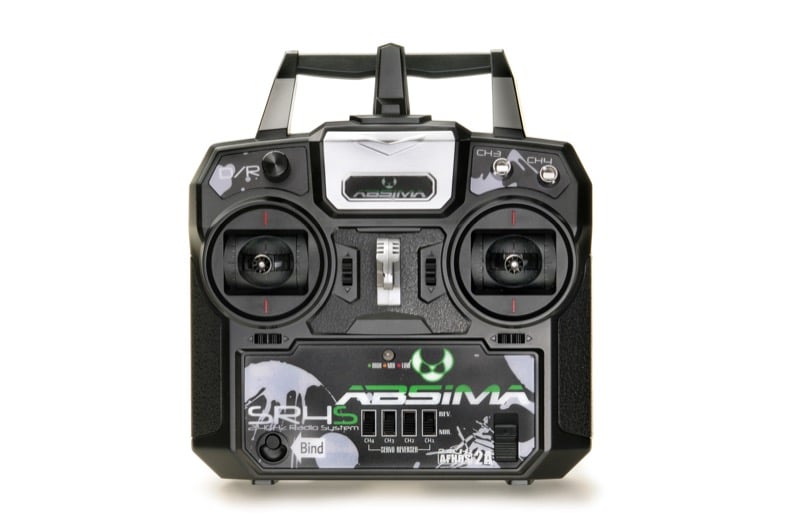

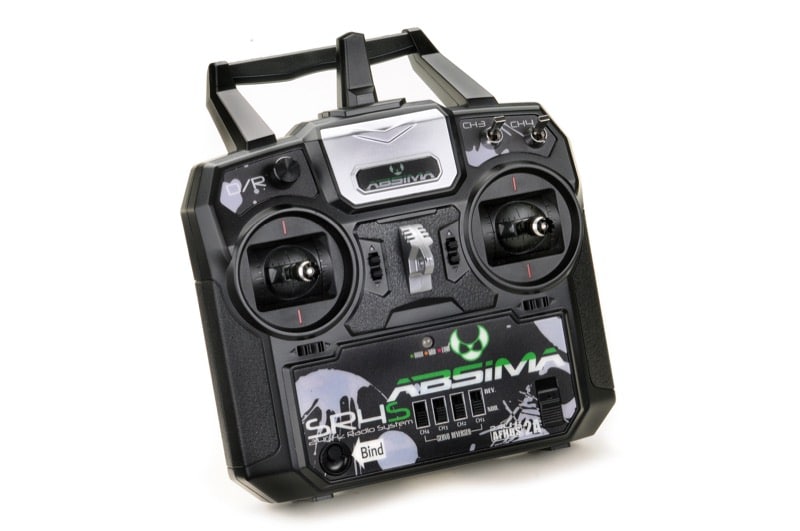

Absima 4-Channel Stick Radio “SR4S” 2.4GHz incl. Receiver 2000022

Absima 4-Channel Stick Radio “SR4S” 2.4GHz incl. Receiver 2000022

The new SR4S remote control is the basis for every model fan who prefers to operate a joystick rather than reach for the steering wheel and is also the successor to our incredibly popular “SR2S” 2-channel stick remote control. The lighter and slimmer design ensures that your hands won’t get tired even on longer trips. In addition, the 6V (4* AA) operating voltage reduces the functional weight by 40%!

Equipped with the following standard functions:

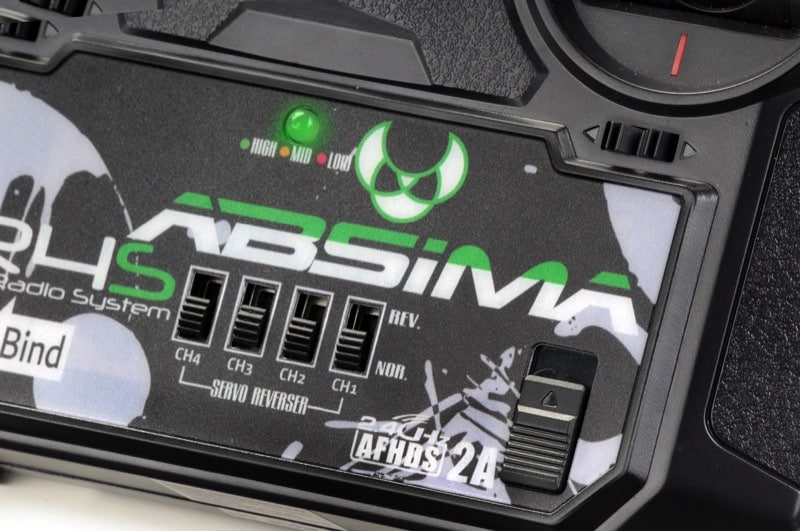

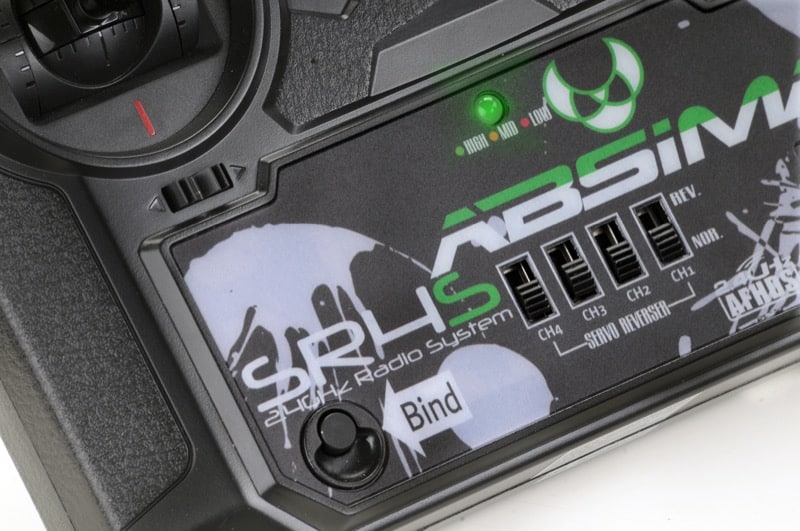

• Servo Reverse (the direction of rotation/switching of the individual channels can be changed using this function)
• Trim-Function for throttle and steering (setting the throttle neutral position and straight-ahead running)

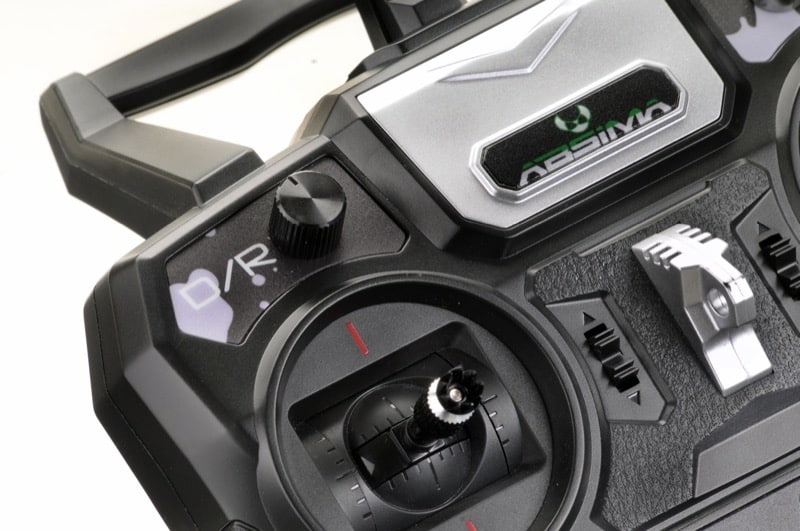

• ST. D/R Function for setting the servo travel limit (steering servo only)

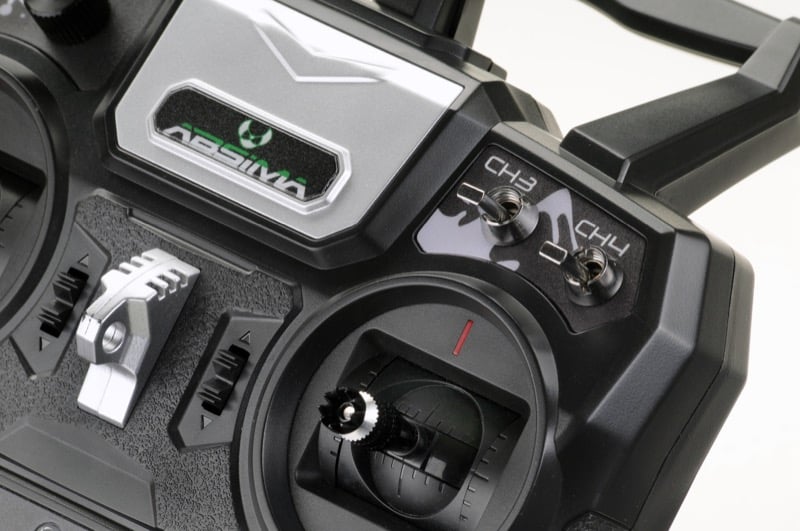

There are also channels 3 & 4 for free assignment, which can be operated via 2 toggle switches.

Radio Specification:

• 4 channel
  Frequency: 2.4GHz
  Protocol: AFHDS 2A

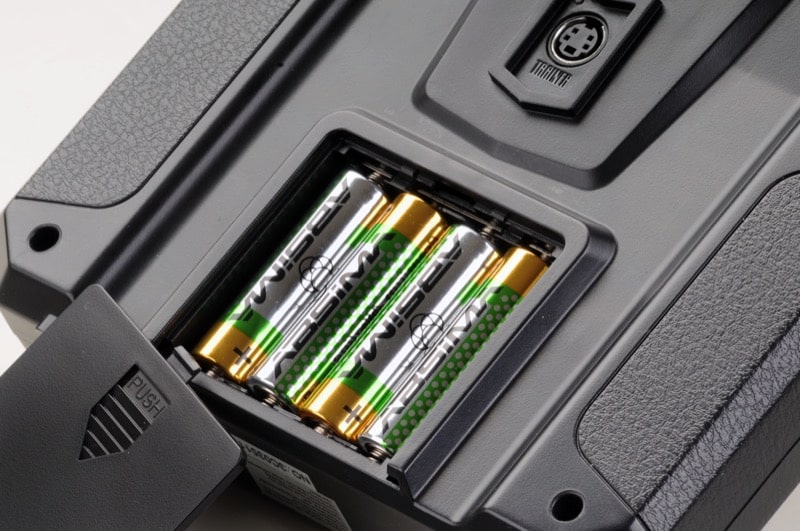

  Operating voltage: 6V DC (4* 1.5V AA Mignon)
  Low V Alarm: below 4.2V
  Temperature: 0°C – +60°C
  Weight: 320g
  Dimensions: 190*174*89mm

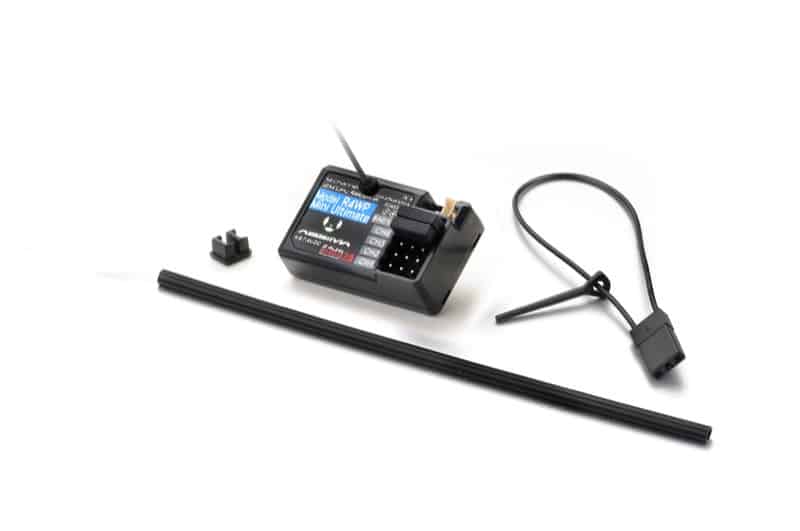

Receiver Specification:

• 2020012 – 4 channel mini receiver
• Frequency: 2.4GHz
• Protocol: AFHDS 2A
• Waterproof: Yes
• Operating voltage: 4.8V-7.4V
• Dimmensions: 35x30x13mm
• Weight: 15g
• Aerial length: 260mm

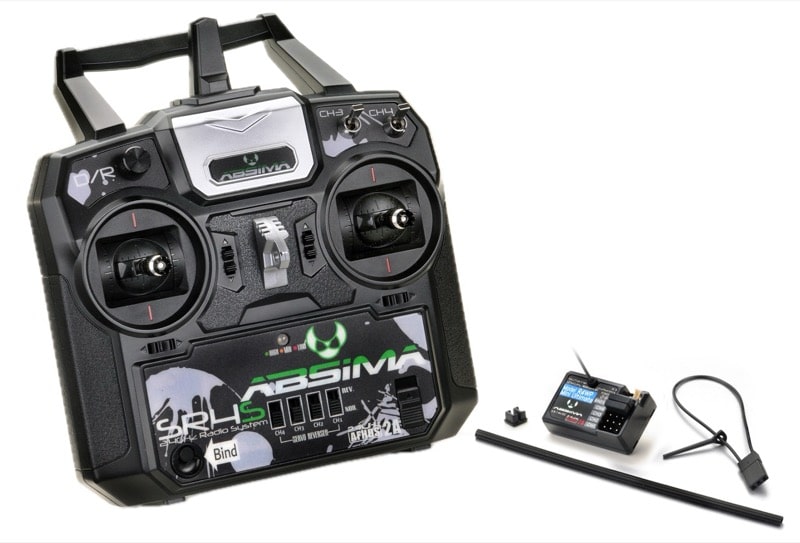

Scope of delivery:

• SR4S radio
• R4WP receiver
• Bind plug
• Aerial tube
• Manual – 2000022-sr4s-radio-manual-de-en-fr
