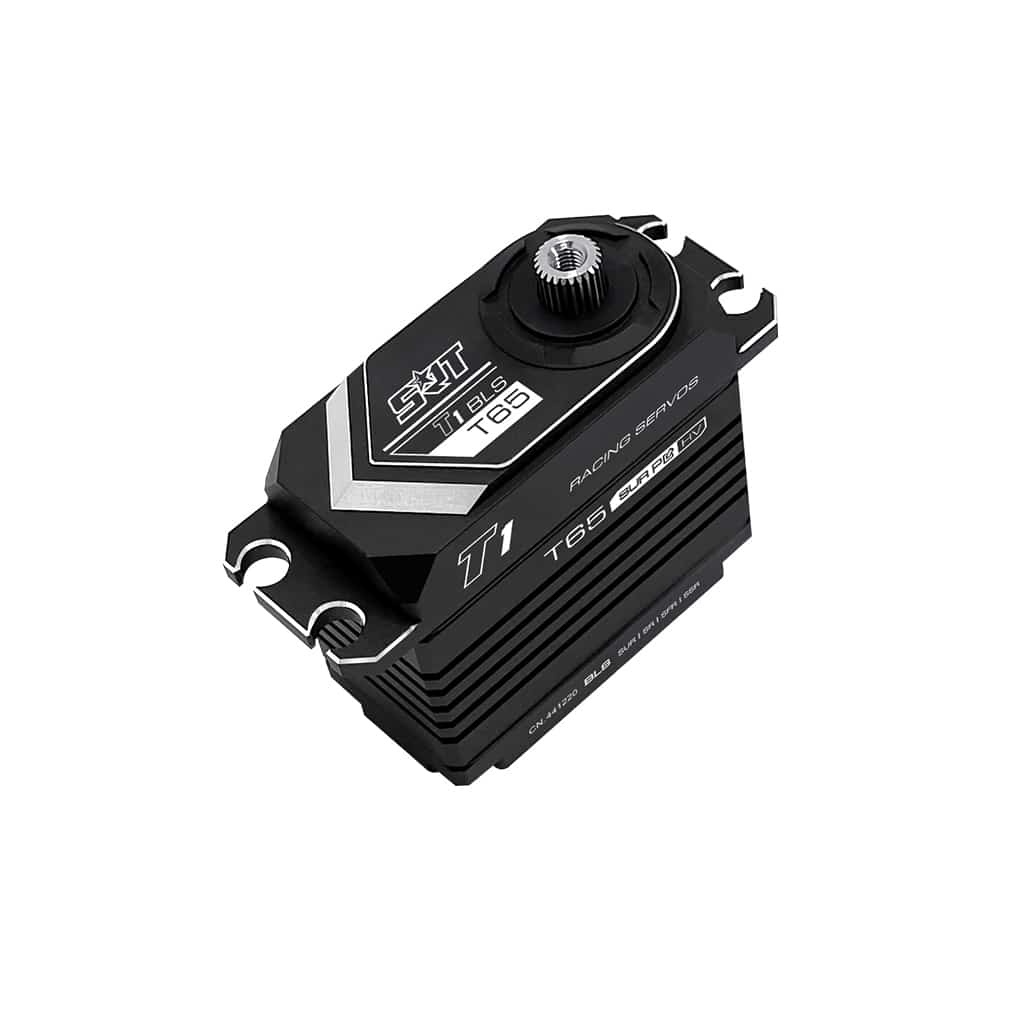

SRT T65 HV Brushless Servo SRTT65

KEY FEATURES

– Superior Holding Torque
– Incredible efficiency and low power consumption
– Standard dimension make it perfect for vehicles that can benefit from a high quality servo
– CNC Machined aluminum case for exceptional cooling
– Programmable High torque Brushless servo
– Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
– 25T output shaft
– 2 ?sec Dead Band
– 1-Year Limited Warranty

Application :

1/10 Crawler

PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520?s / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.092 sec/60 degrees at no load
operating speed (7.4v): 0.074 sec/60 degrees at no load
operating speed (8.4v): 0.065 sec/60 degrees at no load
stall torque (6.0v): 39.0kg.cm (541.6 oz/in)
stall torque (7.4v): 45.0kg.cm (625.0 oz/in)
stall torque (8.4v): 55.0kg.cm (763.8 oz/in)
potentiometer drive: direct drive
dimensions: 40.7×20.5×39.0 mm /1.60×0.81×1.54 in
weight: 83.0g (2.93 oz)
connector wire length: jr 300 mm
