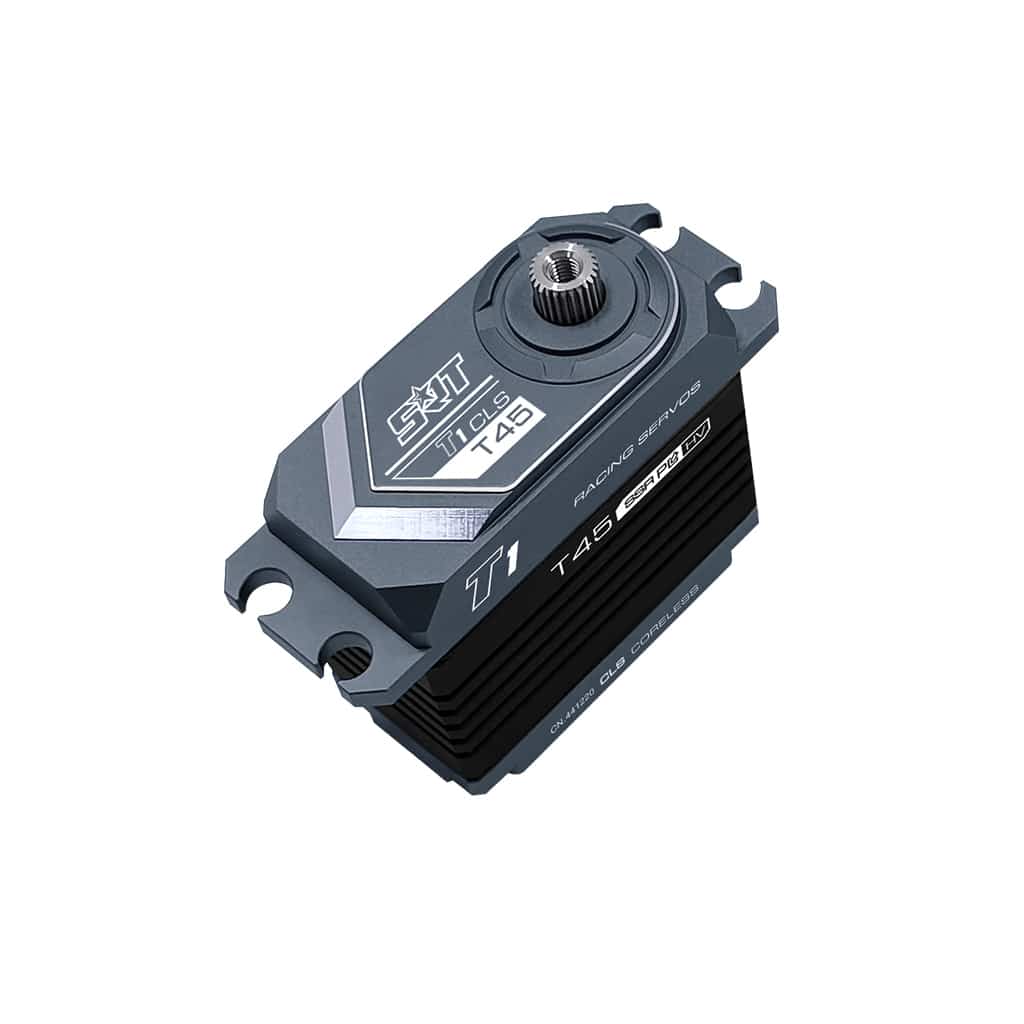

SRT T45 HV Coreless Servo SRTT45

KEY FEATURES

– Superior Holding Torque
– Incredible efficiency and low power consumption
– Standard dimension make it perfect for vehicles that can benefit from a high quality servo
– CNC Machined aluminum case for exceptional cooling
– Programmable High torque Coreless servo
– SSR mode compatible
– 25T output shaft
– 2 ?sec Dead Band
– 1-Year Limited Warranty

Application :

Air plane
1/10 Crawler
1/8 Crawler

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Steel & Aluminum
control system: pulse width control
working frequence: 1520?s / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.14 sec/60 degrees at no load
operating speed (8.4v): 0.13 sec/60 degrees at no load
stall torque (6.0v): 30.0kg.cm (499.9 oz/in)
stall torque (7.4v): 40.0kg.cm (555.5 oz/in)
stall torque (8.4v): 45.0kg.cm (625.0 oz/in)
potentiometer drive: direct drive
dimensions: 40.7 x 20.5 x 39.0 mm /1.60 x 0.81 x 1.54 in
weight: 81.0g (2.86 oz)
connector wire length: jr 300 mm
