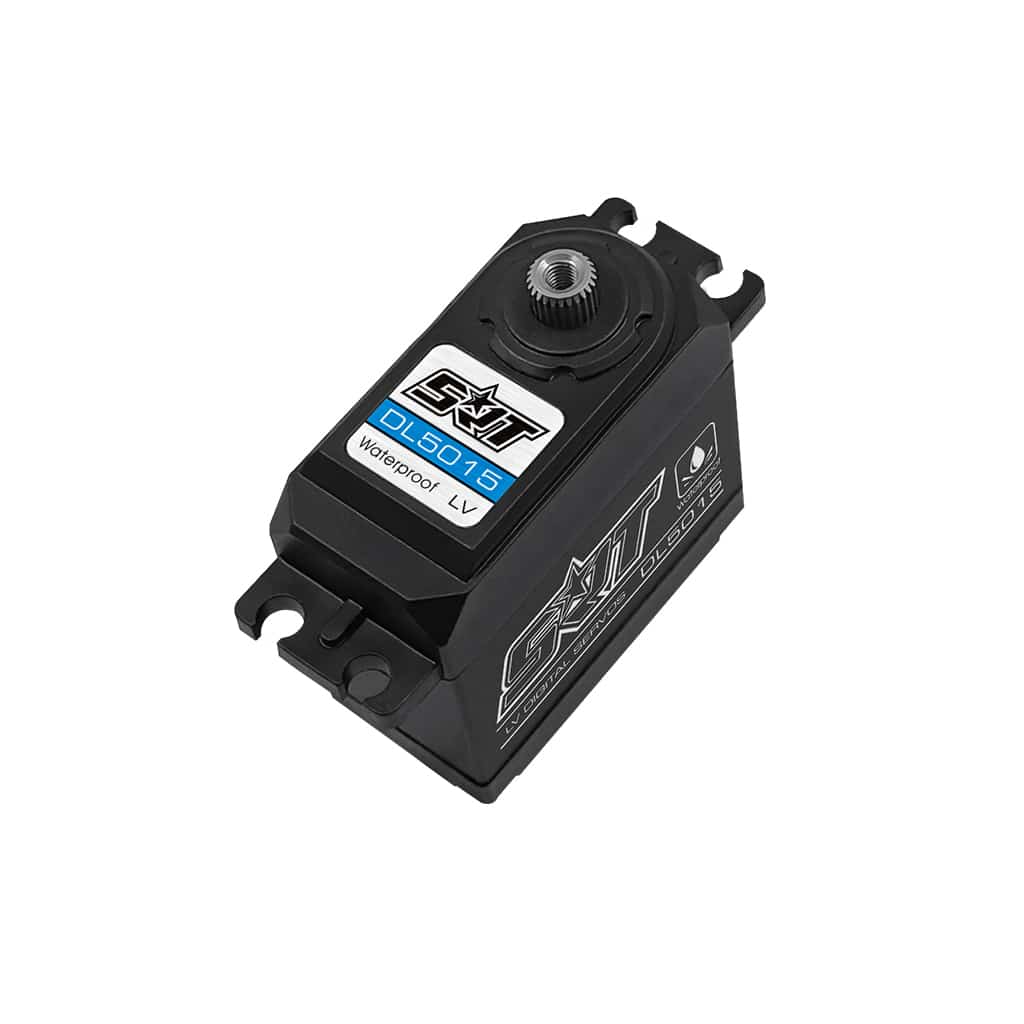

SRT DL5015 LV Digital Waterproof Servo SRTDL5015

KEY FEATURES

– Ideal for 1/10 on road and off road scale applications
– Intermediate aluminum case
– NMB dual main bearings
– Superior waterproof
– 25T output shaft
– 1-Year Limited Warranty

Application :

1/10 Crawler

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520?s / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.15 sec/60 degrees at no load
operating speed (6.0v): 0.13 sec/60 degrees at no load
stall torque (4.8v): 12.0kg.cm (166.6 oz/in)
stall torque (6.0v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive
dimensions: 40.7×20.5×39.5 mm /1.6×0.8×1.55 in
weight: 62.0g (2.19 oz)
connector wire length: jr 300 mm
