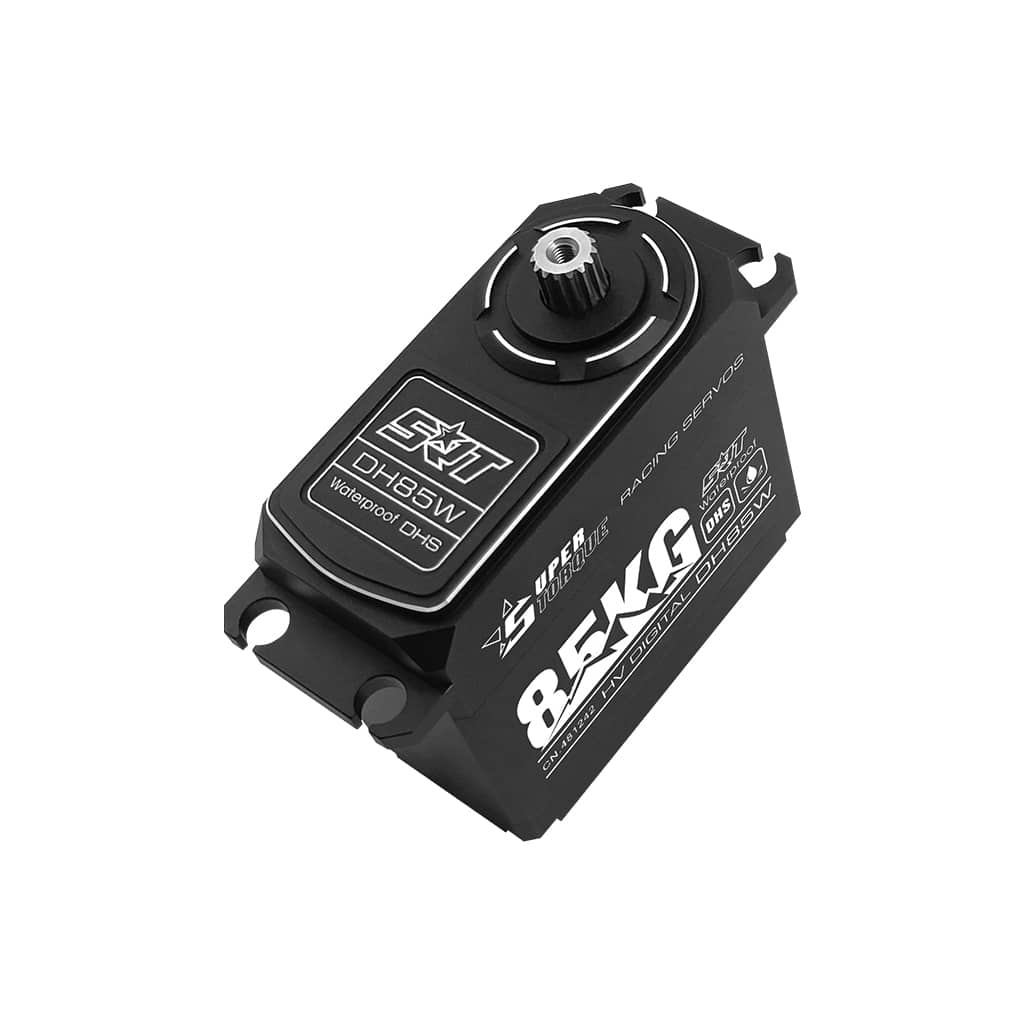

SRT DH85W All-Metal High-Torque Servo SRTDH85W

KEY FEATURES

– Ideal for 1/5 on road and 1/5 off road scale applications
– Incredible efficiency and low power consumption
– NMB dual main bearings
– Superior waterproof
– 15T output shaft
– 1-Year Limited Warranty

Application :

1/5 Nitro Touring
1/5 Nitro Buggy

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520?s / 330hz
operating voltage: dc7.4-8.4v
operating temperature range: -10 to + 60 degree
operating speed (7.4v): 0.17 sec/60 degrees at no load
operating speed (8.4v): 0.15 sec/60 degrees at no load
stall torque (7.4v): 78.0kg.cm (1083.2 oz/in)
stall torque (8.4v): 85.0kg.cm (1180.4 oz/in)
potentiometer drive: direct drive
dimensions: 59.5×29.5×54.5 mm /2.34×1.16×2.15 in
weight: 200.0g (7.05 oz)
connector wire length: jr 350 mm
