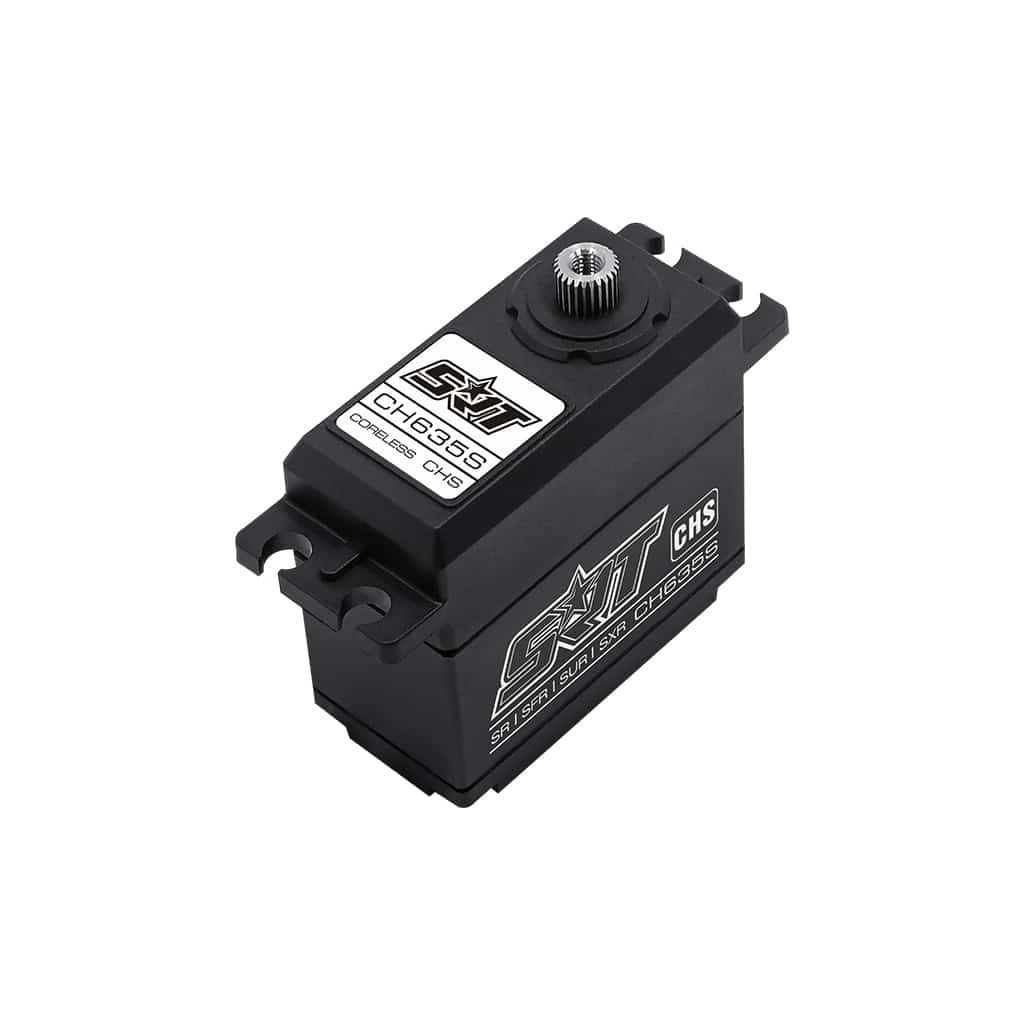

SRT CH635S 1/5 Scale OR HV Coreless Servo SRTCH635S

KEY FEATURES

– Incredible efficiency and low power consumption
– Supporting SR, SFR, SUR, SXR multiple ultra high speed modes
– 2 ?sec Dead Band
– 1-Year Limited Warranty

Application :

1/10 Crawler

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520?s / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.15 sec/60 degrees at no load
operating speed (8.4v): 0.14 sec/60 degrees at no load
stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
stall torque (7.4v): 32.0kg.cm (444.4 oz/in)
stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
potentiometer drive: direct drive
dimensions: 41.3×20.5×38.3 mm /1.63×0.81×1.51 in
weight: 69.0g (2.43 oz)
connector wire length: jr 300 mm
