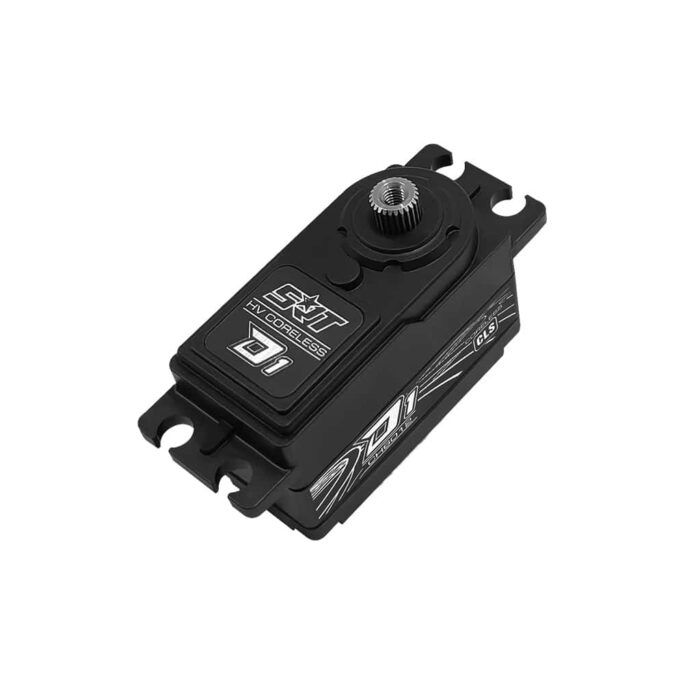

SRT CH6012 1/10 Scale On-Road HV Servo SRTCH6012

KEY FEATURES

– Ideal for 1/10 on road scale applications
– Incredible efficiency and low power consumption
– 2 ?sec Dead Band
– 1-Year Limited Warranty

Application :
1/10 Electric Touring
1/10 Drift
Formula One

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520?s / 330hz
operating voltage: dc6.0-7.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.07 sec/60 degrees at no load
operating speed (7.4v): 0.06 sec/60 degrees at no load
stall torque (6.0v): 9.0kg.cm (125.0 oz/in)
stall torque (7.4v): 12.0kg.cm (166.6 oz/in)
potentiometer drive: direct drive
dimensions: 41.0×20.0x26.4 mm /1.61×0.79×1.04 in
weight: 48.0g (1.69 oz)
connector wire length: jr 110 mm
