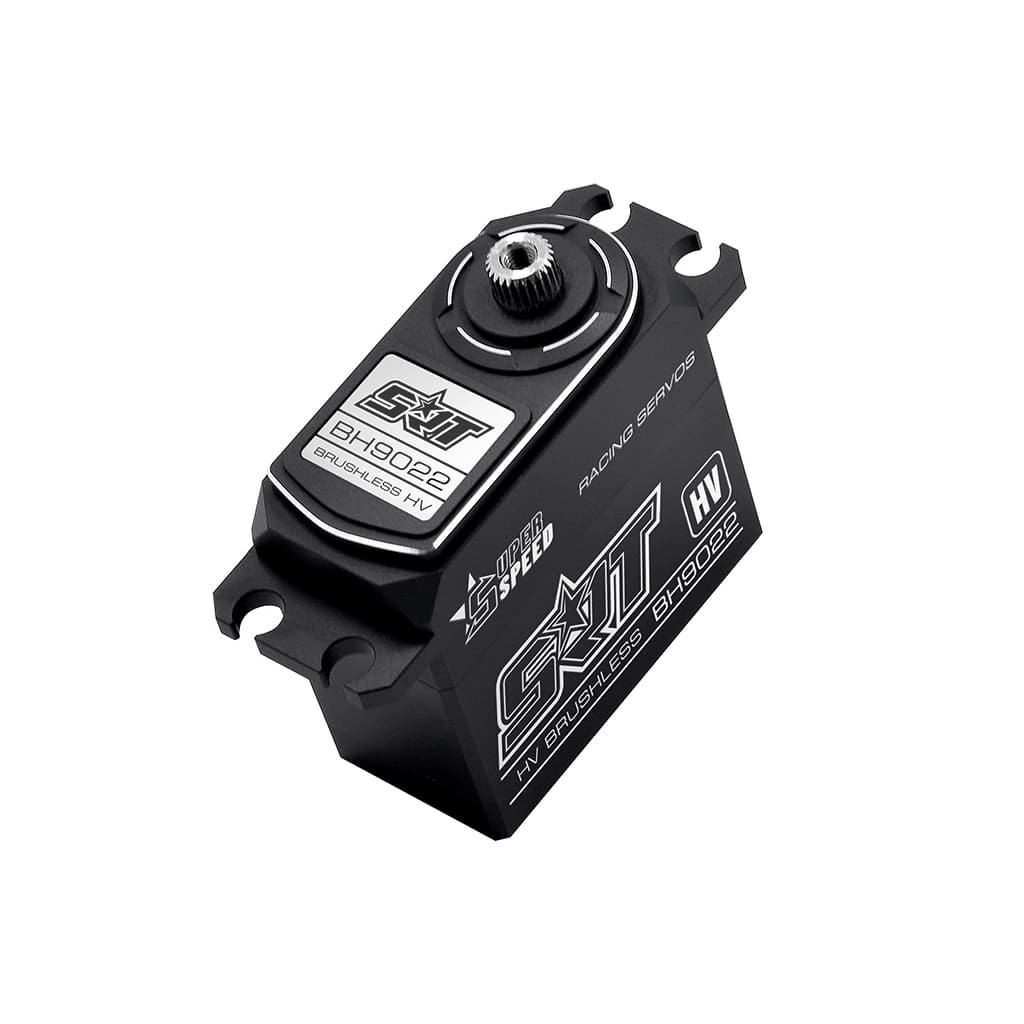

SRT 9022 HV Brushless Servo SRTBH9022

KEY FEATURES

– Superior Holding Speed
– Incredible efficiency and low power consumption
– Standard dimension make it perfect for vehicles that can benefit from a high quality servo
– CNC Machined aluminum case for exceptional cooling
– NMB dual main bearings
– 25T output shaft
– HD 4096 Resolution
– 2 ?sec Dead Band
– 1-Year Limited Warranty

Application :

1/10 2WD Electric Buggy
1/10 4WD Electric Buggy
1/8 Nitro GP>
1/8 Electric GP

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520?s / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.085 sec/60 degrees at no load
operating speed (7.4v): 0.065 sec/60 degrees at no load
operating speed (8.4v): 0.060 sec/60 degrees at no load
stall torque (6.0v): 18.0kg.cm (249.9 oz/in)
stall torque (7.4v): 20.0kg.cm (277.7 oz/in)
stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
potentiometer drive: direct drive
dimensions: 40x20x38.0 mm /1.57×0.79×1.49 in
weight: 79.0g (2.79 oz)
connector wire length: jr 300 mm
