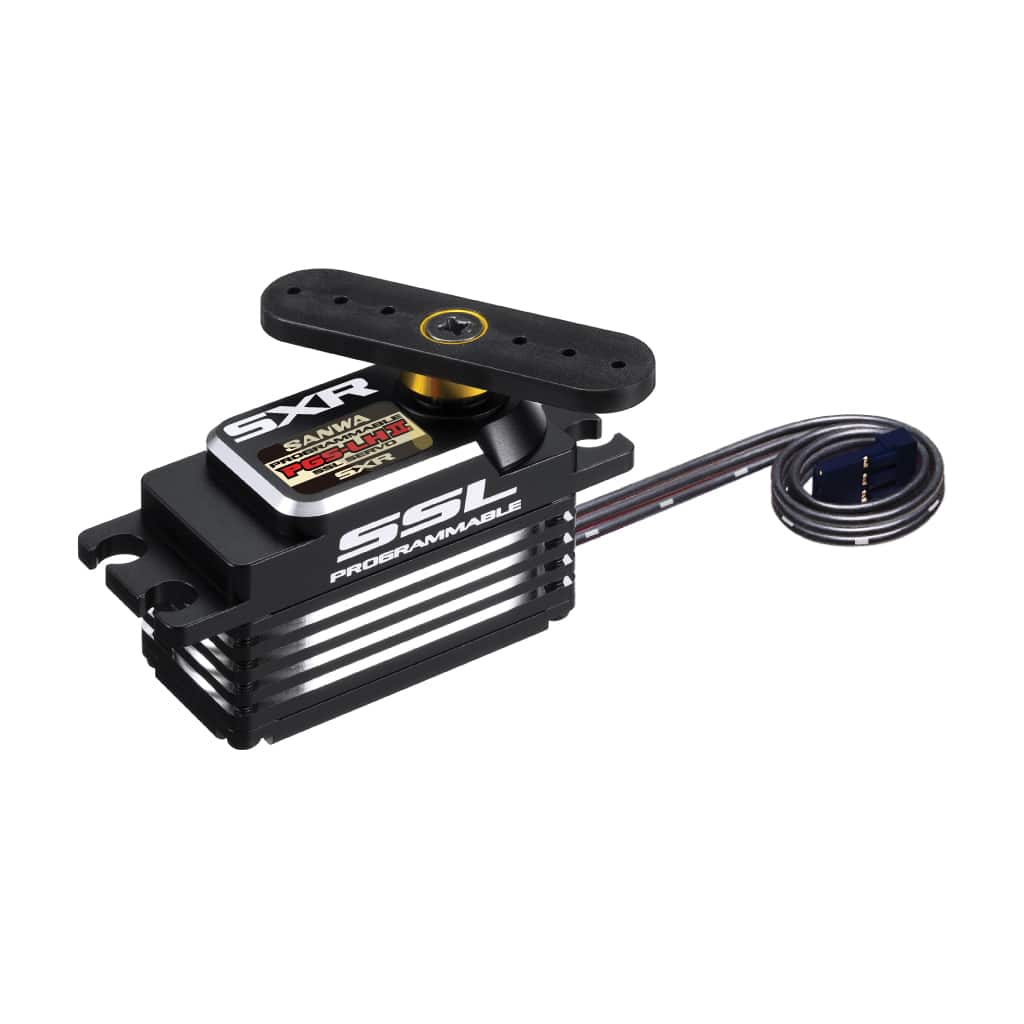

Sanwa PGS-LH2 Servo SA107A54479A

Sanwa PGS-LH2 Servo SA107A54479A

FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE

SSL-COMPATIBLE PROGRAMMABLE SERVO

Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)

• PGS SETTING GEAR-COMPATIBLE
• SUPER RESPONSE (SSR) MODE-COMPATIBLE
• HIGH RESPONSE (SHR) MODE-COMPATIBLE
• Li-Po 2 CELL-COMPATIBLE
• LOW PROFILED
• HIGH SPEED TYPE
• BRUSH LESS MOTOR
• FULL ALUMINUM CASE
• FULL METAL GEAR (Strengthening Gears)
• AL HEAT SINK
• Black Harness

Programmable Servo to be compatible with SSL & Telemetry at Launch

• Setting Adjustment by wireless from Radio
• Setting Adjustment to connect Servo with Setting Gear
• Regarding Temperature, Current, Voltage and Volume Position on Servo inside,

Telemetry-transmission can be passed to Radio.
Initial Setting on Setting Gear is necessary.

Setting Items

• SSL-CH (SSL Channel Setting) – STRETC (Stretcher Adjustment) – BOOST (BOOST Adjustment)
• D-Band (Dead Band Adjustment) – MV-MID (Middle Torque Adjustment)
• MV-END (Later Torque Adjustment) – BREAK (Break Adjustment)
• MV-HOLD (Power Adjustment at whole area) ?MV-FRQ (Feeling Adjustment at whole area)
• MAX-PW (MAX Duty Adjustment)
• Setting Gear is necessary for ?setting.

Speed

• 0.09 sec/60 (7.4V)
• 0.11 sec/60 (6.0V)

Torque

• 15.6 kg/cm (7.4V)
• 12.8 kg/cm (6.0V)

Dimensions

• 40.2 x 20.5 x 26.0 mm

Weight

• 53.0 g
