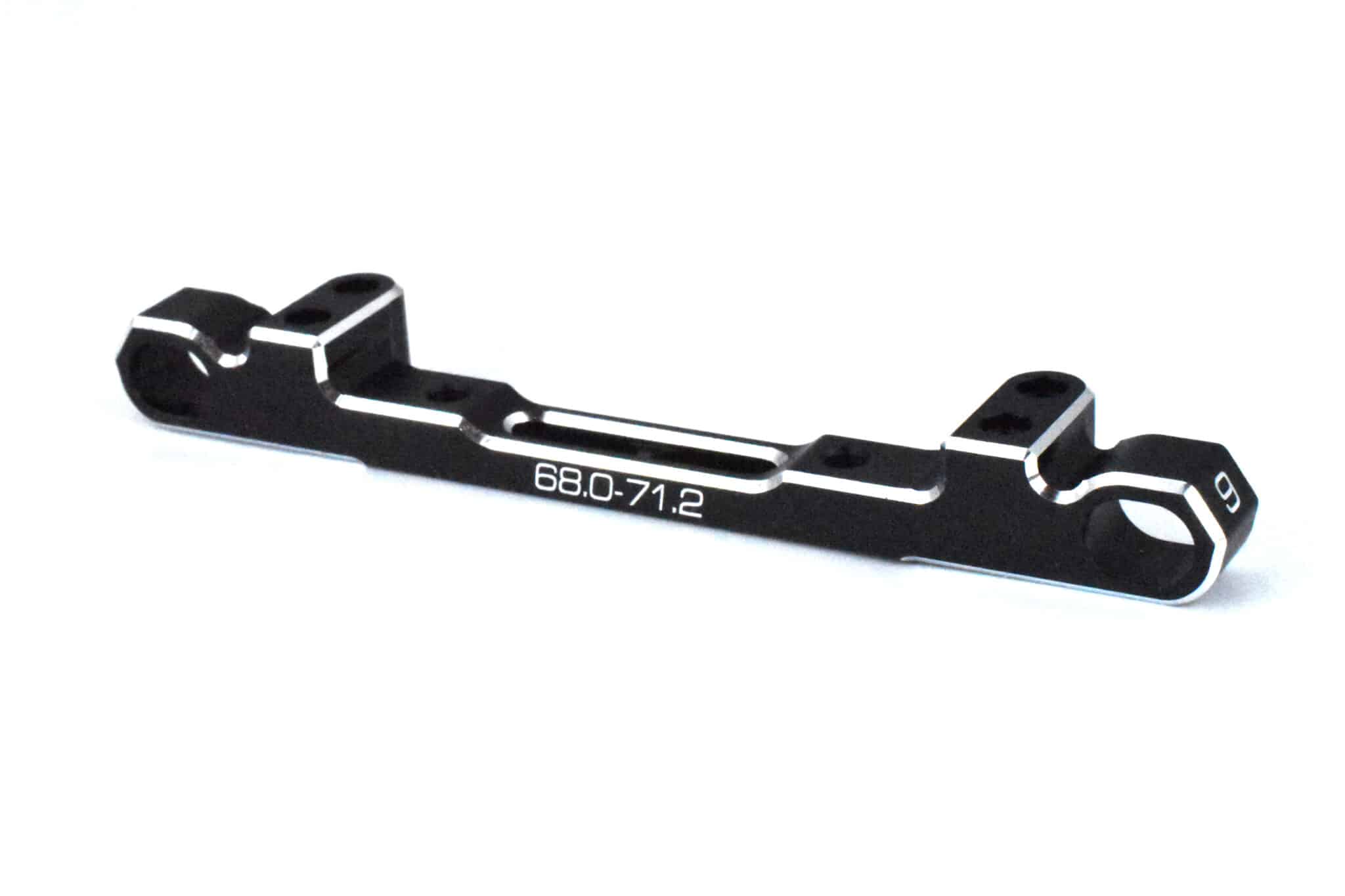

Reve D Alu. Suspension Mount Type TK No.9 SE (680-712mm) RD-301-9T

Reve D Alu. Suspension Mount Type TK No.9 SE (680-712mm) RD-301-9T

The lightweight and highly rigid aluminum suspension mount series Type TK SE (Shiny Edge) spec!

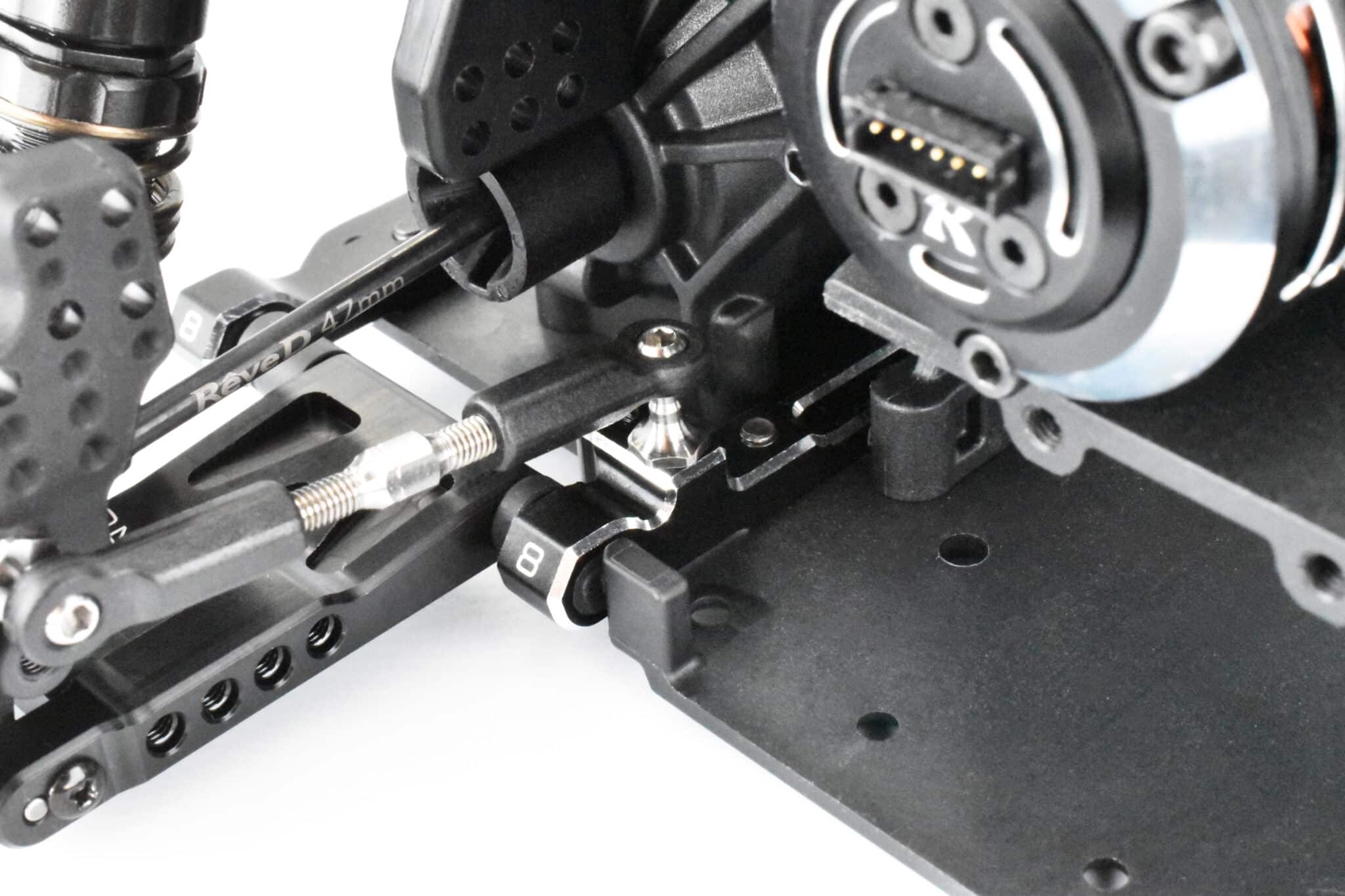

The “Type TK”, which has two rod end ball mounting holes on the upper surface of the suspension mount, attaches the rear upper arm to the Suspension mount to create a direct feeling in the movement of the rear suspension, dramatically improving traction and control performance.

If you use RD-020-0 or RD-020-26 HT rear lower arm 42mm then No.8 or No.9 suspension mount is recommended.

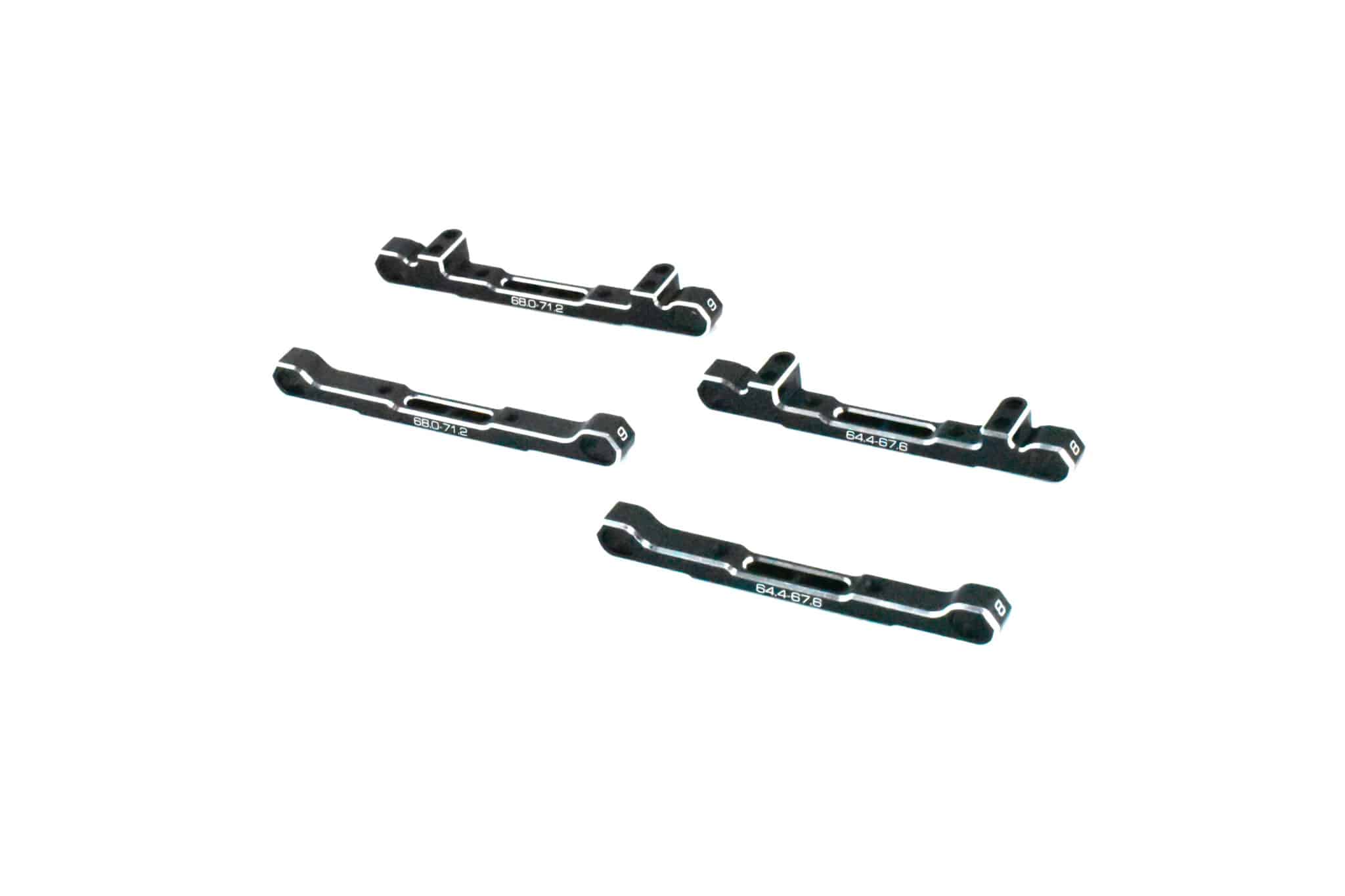

Line-up

• RD-301-6T: Alu. Suspension mount Type TK No.6 (57.2-60.4mm)
• RD-301-7T: Alu. Suspension mount Type TK No.7 (60.8-64.0mm)

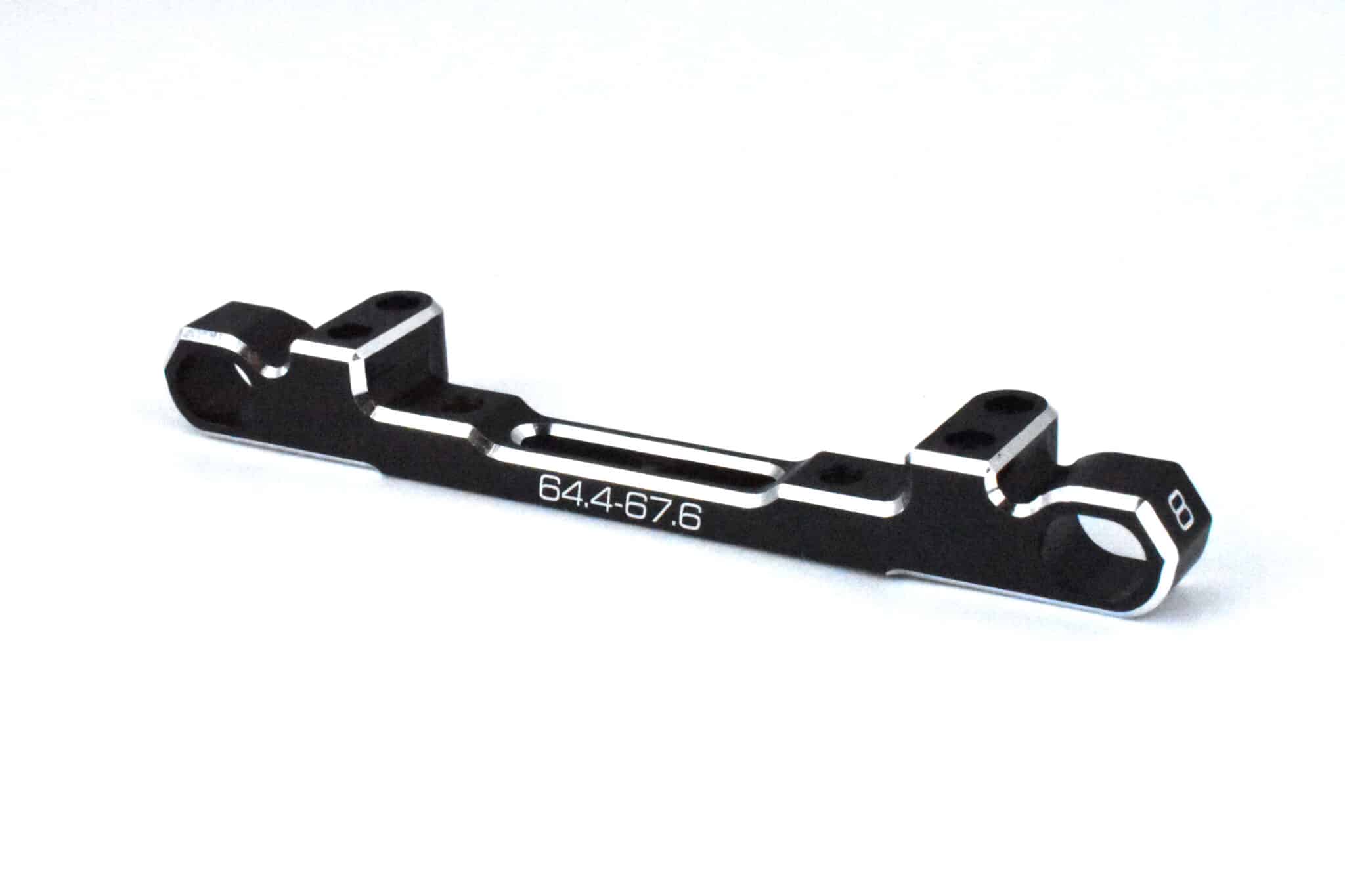

• RD-301-8T: Alu. Suspension mount Type TK No.8 (64.4-67.6mm)
• RD-301-9T: Alu. Suspension mount Type T8 No.9 (68.0-71.2mm)
  *Please use the dedicated suspension bush, RD300-BS (Plastic suspension mount bush)

[Suspension mount dimensions] *Click to enlarge

Reve D Suspension Mount Configuration

[Toe angle quick reference table when used with RDX / MC-1 / YD-2] *Click to enlarge

Reve D Suspension Mounts
