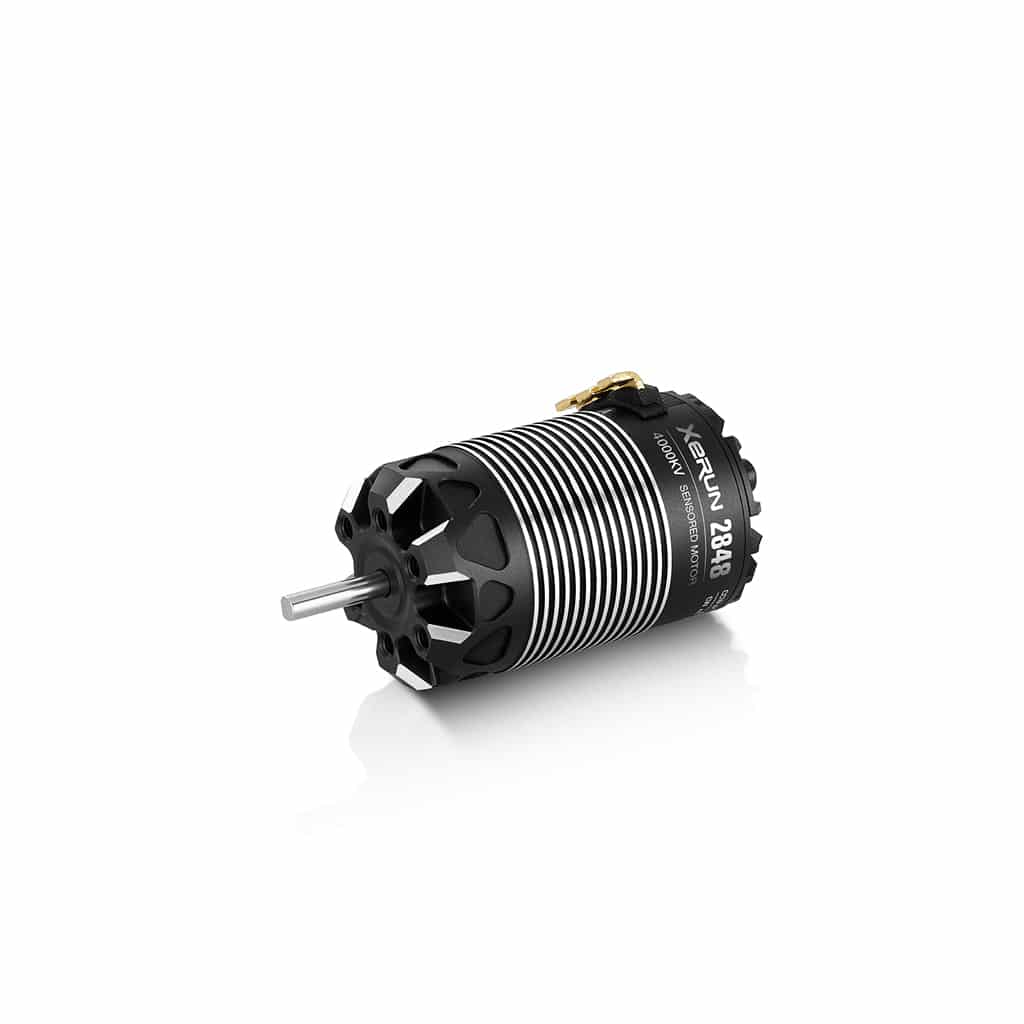

Hobbywing XERUN 2848SD 4000KV BLACK HW30401321

Introducing the XeRun 2848 4000 KV brushless motor from Hobbywing.

High power output designed for heavy duty 1/14th scale applications.
Power output is increased by 15% when compared to motors of equal size and specification.
The best choice for 1/14th scale competitions.
Efficiency is increased by 6% when compared to the competition.
The internal temperature is approximately 20 degC lower.
The external temperature is approximately 10 degC lower.

Excellent dust resistance
The protection level is IP5X with excellent dust proof performance. It is able to cope with various Off Road dusty track environments.

The mechanical endbell allows the motor to be set up for CW and CCW rotation.

Low cogging moment
The motor has a very low speed start up, offering extremely smooth and linear throttle response.

Easy to maintain
The motor’s modular design allows it be easily disassembled for cleaning and maintenance. This will prolong the motor life and maintain overall performance and efficiency.

Industry-leading materials and excellent product design
Easily tackles rigorous racing competitions.
Adopts high-performance top-tier brand Iron core.
High-precision grade Bearings.
High temperature resistant wire (200?C).
High temperature resistant (180?C) Explosion-proof rotor.
The soldering terminals adopt customized widened U-shaped gold-plated curved copper bars that has extremely low internal resistance.
The gap between the copper bars has been increased to ease soldering.

Specifications

Type

Scale – 1/14th, 1/12th
Brushed/Brushless – BL
Sensored/Sensorless – SD
Pole Count – 4

Relevant Parameters

KV Rating – 4000KV
LiPo Cells – 2-3S
No-load Current(A) – 2.1A

Size & Weight

O.D.(mm) – 28.5
Length (mm) – 48
Shaft Diameter (mm) – 3.175
Weight (g) – 100
Front Bearing – D9.525*D3.175*t3.9675
Rear Bearing – D6.35*D3.175*t2.778

Applications – 1/14, 1/12th On Road, Off Road
