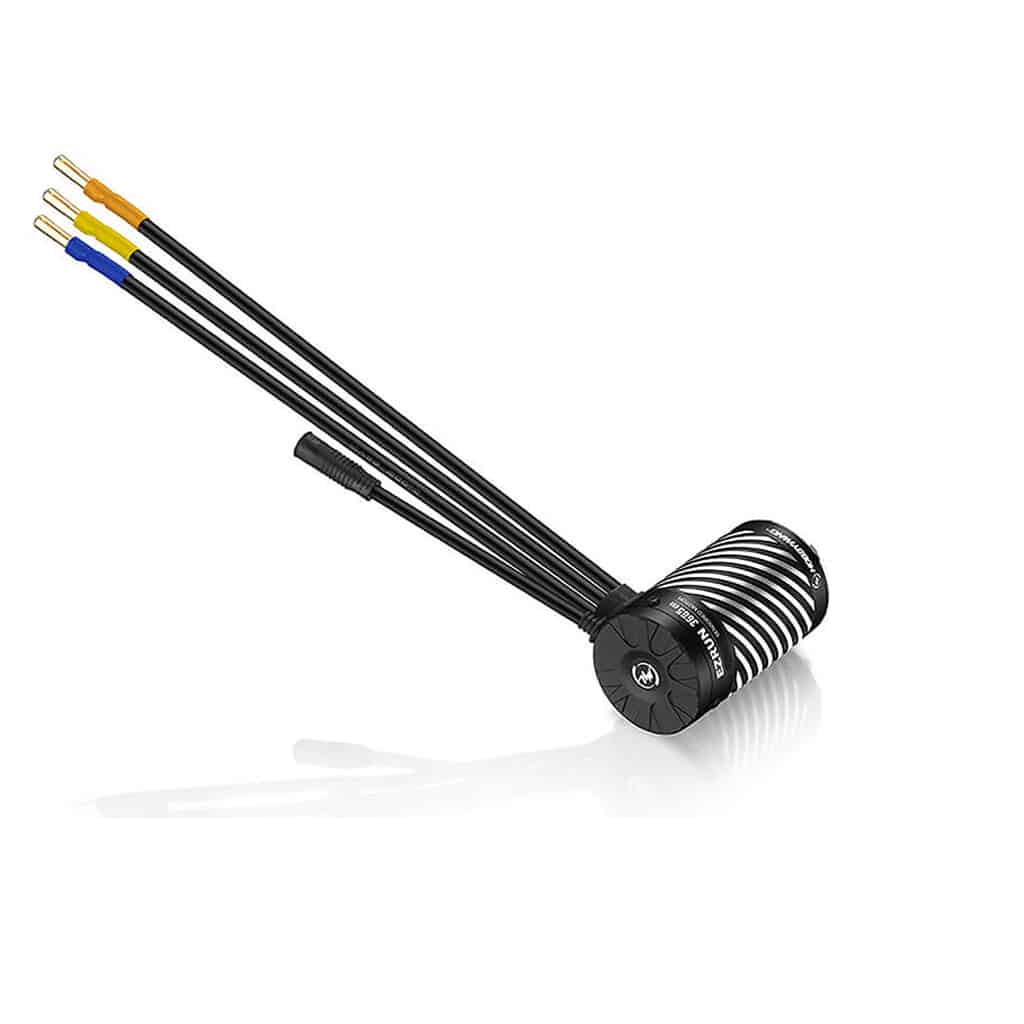

Hobbywing EZRUN – 3665SD – 4000KV – Black – G3 Motor HW30402608

EzRun 3665 SD G3

The new generation adds performance.

The evolution of a sensored motor, increases performance.
The EzRun 3652/3665 SD G3 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve motor temperature protection and perfectly matches the EzRun MAX10 G2 ESC.

Powerful hardware configuration, efficiency is greatly improved.

The high-precision Hall sensor components ensures that the rotor position output is always accurate and consistent, achieving excellent linearity and a great throttle control.

The EzRun 3652/3665 G3 motor adopts a high precision bearing that is waterproof in the front end of the motor.
The rear end of the motor uses precision iron cover with a smaller structure to improve the capacity, and at the same time, provides a higher bearing speed while keeping resistance low. The operation is smoother and more reliable.

Compared to the G2 motor
The overall efficiency is 3% up.

More effective while the maximum output power has increased by 5%

The motor temperature is greatly reduced under the same load conditions

The stable power and high output of the motor, makes throttle control for maneuvers (power wheelies, straight line power, and clearing jumps) much easier.

The motor adopts a modular detachable structure design.
The motor adopts a modular detachable structure design for easy disassembly and daily maintenance. This helps to prolong the lifespan of the motor and maintaining the efficiency of the motor simple.

Applicable to All Weather & Track Conditions
The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.

Specifications

Type
Scale: 1/10th
Brushed / Brushless: BL
Sensored / Sensorless: SD
Pole Count: 4

Relevant Parameters
KV Rating: 4000KV
LiPo Cells: 2-4S
No-Load Current(A): <8.2A

Size & Weight
O.D.(mm): 37
Length (mm): 68.5
Shaft Diameter (mm): 5
Weight (g): 297g
Front Bearing: D16*D5*T5
Rear Bearing: D11*D5*T5

Other Parameters
1/10th Short Course Truck Truggy/Monster
