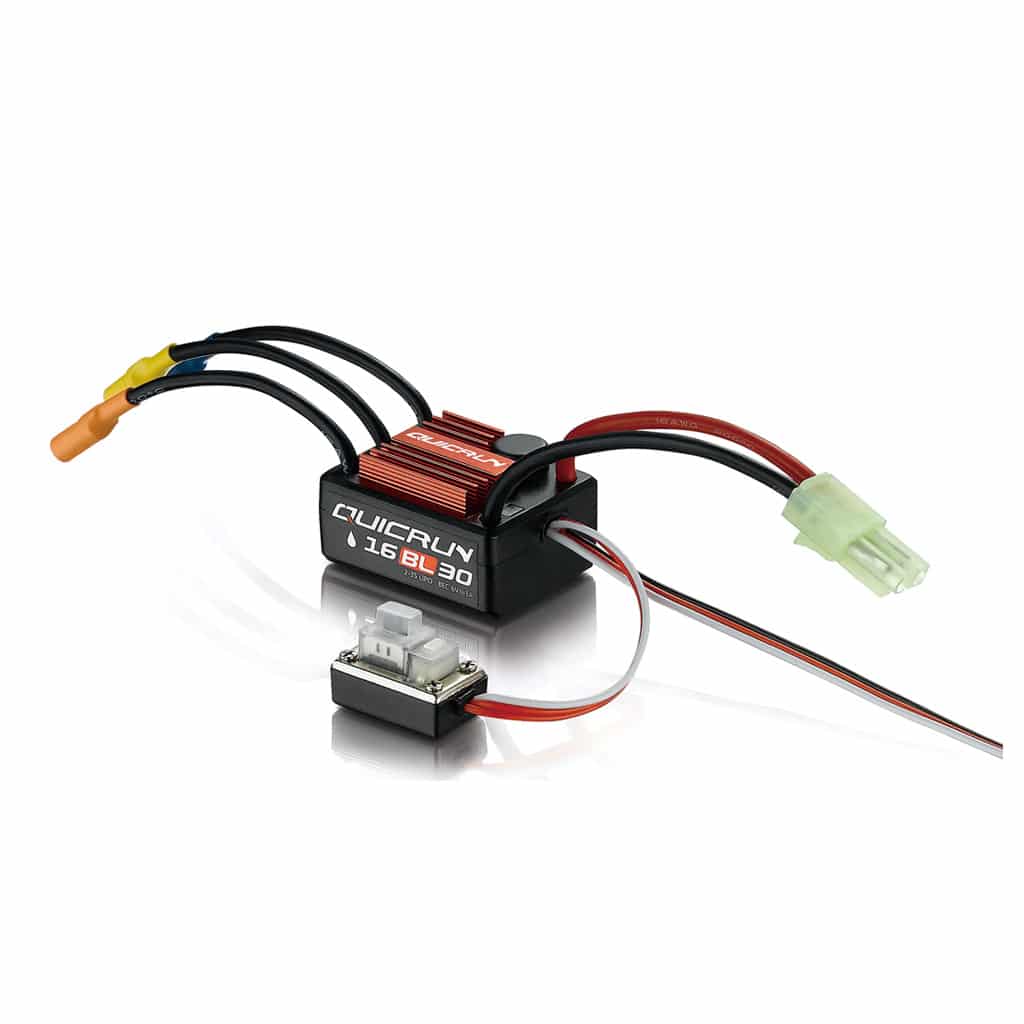

Hobbywing QUICRUN WP 16BL30 BL ESC Waterproof HW30105030001

Hobbywing QUICRUN WP 16BL30 BL ESC Waterproof HW30105030001

Benefits from the water-proof and dust-proof design, the QuicRun-WP-16BL30 speedo is fit for all weather races. The speedo owns these outstanding features as listed below. Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment. 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks. Multiple protections like Low voltage cut-off protection, Over-heat protection, Throttle signal loss protection and Motor lock-up protection to extend the service life. One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings. Compatible with the optional device – the portable Digital LED Program Card, especially convenient for outdoor use.

• Current – 30A/180A
• Input – 4-9 Cells NiMH, or 2-3S Lipo
• BEC Output – 6V/1A (Linear Mode)
• Resistance – 0.002
• Motor Supported – Sensorless Brushless Motor (compatible with sensored motor but not in sensored operating mode)
• Cooling Fan – No cooling fan
• Weight – 38g
• Size – 36(L)X28(W)X16(H)mm
• Motor Limit – For 2S Lipo or 6 cells NiMH
• On-road: 2435-size or smaller motor with the KV 8000
• Off-road/Buggy/Monster: 2435-size or smaller motor with the KV 5000
• For 3S Lipo or 9 cells NiMH:
• On-road: 2435-size or smaller motor with the KV ;5500
• Off-road/Buggy/Monster: 2435-size or smaller motor with the KV 3500.
• Car Applicable – 1:18 ; 1:16 On-road/Off-road/Buggy/Monster
