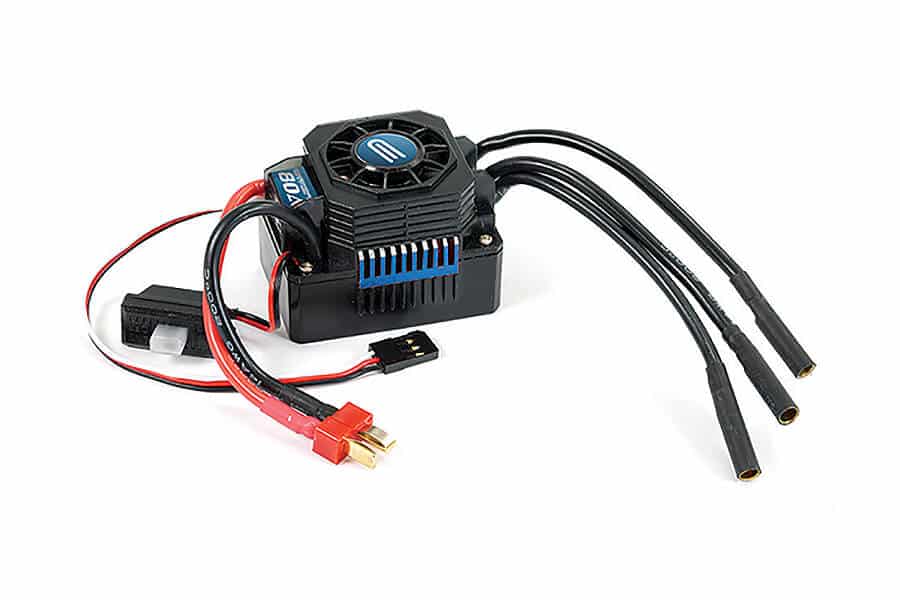

Etronix Photon 80A Brushless Speed Control ET1210

Etronix Photon 80A Brushless Speed Control ET1210

With systems available ranging from 45A through to 120A there is something within the Photon range for every 1/10th application.

With the optional programmable set up card (ET0449) the user can finely tune different parameters within the ESC to suit their particular needs.

FEATURES

• Waterproof (without fan installed)
• 2-3S Lipo
• 6-9S NiMH/NiCd
• 3A 6.1V BEC Output
• Sensorless brushless motor
• 2S 3670 size or smaller 3000kV Motor limit
• 3S 3670 size or smaller 2500kV Motor limit
• 80A Constant current
• 480A Burst Current

SPECIFICATIONS

• Dimensions :- 51.5×38.5×38.5mm (without fan)
• Weight :- 84g

N.B. Please use Etronix program card ET0449
