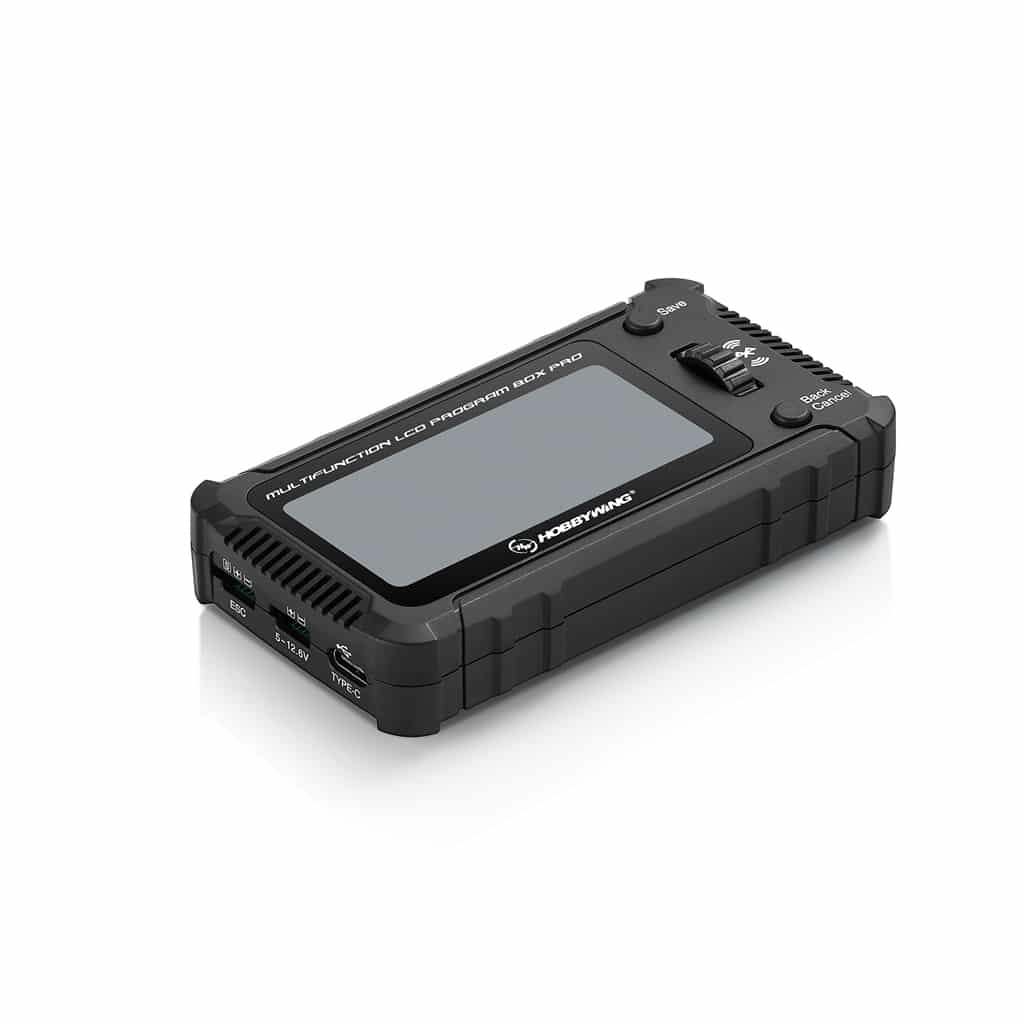

Hobbywing Hobbywing LCD Program Box Pro HW30502002

Introducing the new Hobbywing LCD Program Box Pro.

An independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).

Large Screen is easier to read than ever.
Equipped with a 2.8-inch display.
Double the characters and screen information over the previous LCD Program Box, the new display is a welcomed upgrade.
Support brightness adjustment to meet the needs of viewing in various brightness environments.

Roller helps to improve quality of life.
Simplified operation and control using the single roller interface. Navigating a speed controls settings is easier then ever.

Import and Export ESC profiles
Import and Export your favorite profiles with ease. You can bring in your ESC settings, save them and export them to a new ESC.
This makes profile sharing simple and easy.

OTA parameter adjustment and firmware update
The built-in Bluetooth module functions as an OTA Programmer. The ESC establishes a wireless connection with a smartphone through the LCD programming box.
The HW Link V2 app can be used to adjust the ESC and update the Firmware.

Supports updates to the OTA parameter adjustment and firmware update.

Built-in Sound
Built in audio to make settings save confirmations easy. The sound can of course be turned off as well.

Battery Voltage Tester is built in.
Supports 1-8S battery voltage detection.

Specifications

Size – 105.6x59x24.4mm?LxWxH?

Weight – 85g

Input Voltage – 5-12.6V (a separate battery is needed for powering this program box when ESC has no built-in/external BEC)

Interface – TYPE-C USB? ESC interface(Futaba plug), Power supply interface?Futaba plug?

Display Screen – LCD
