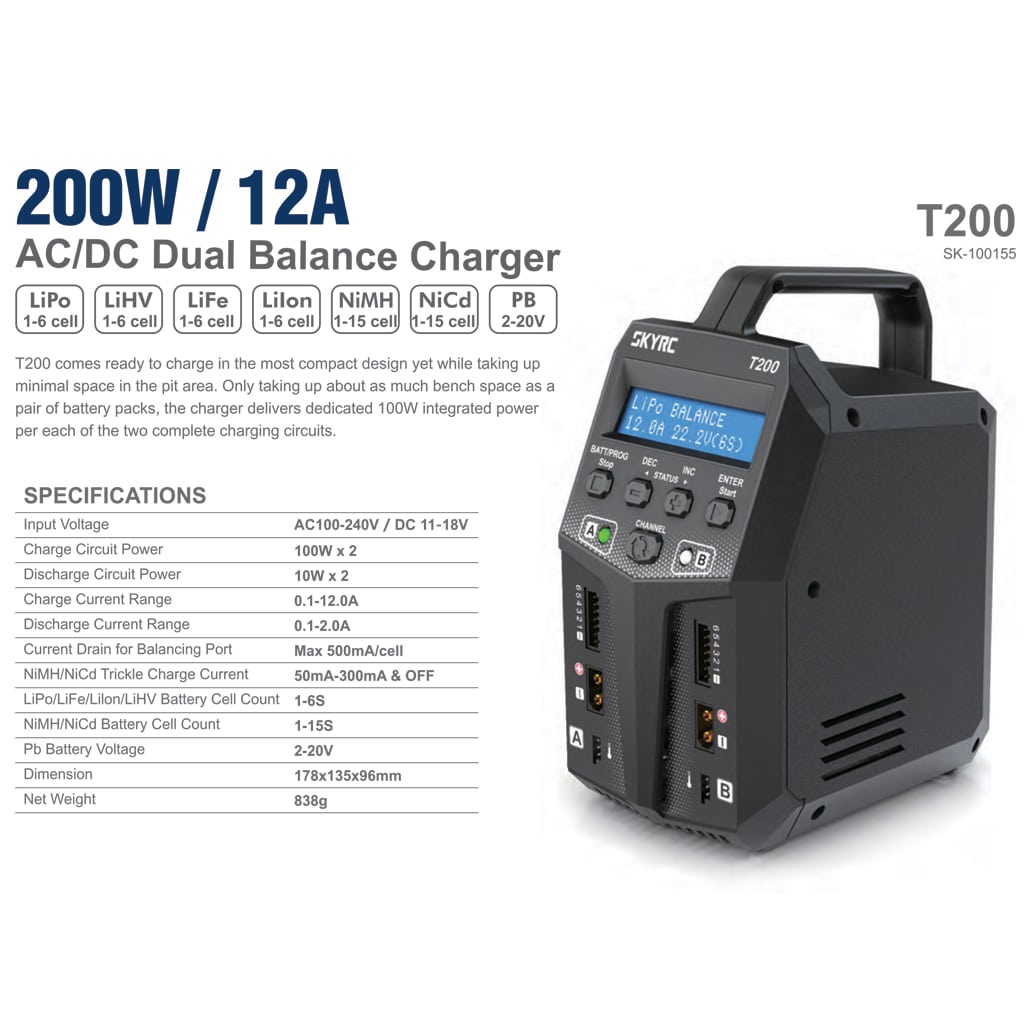

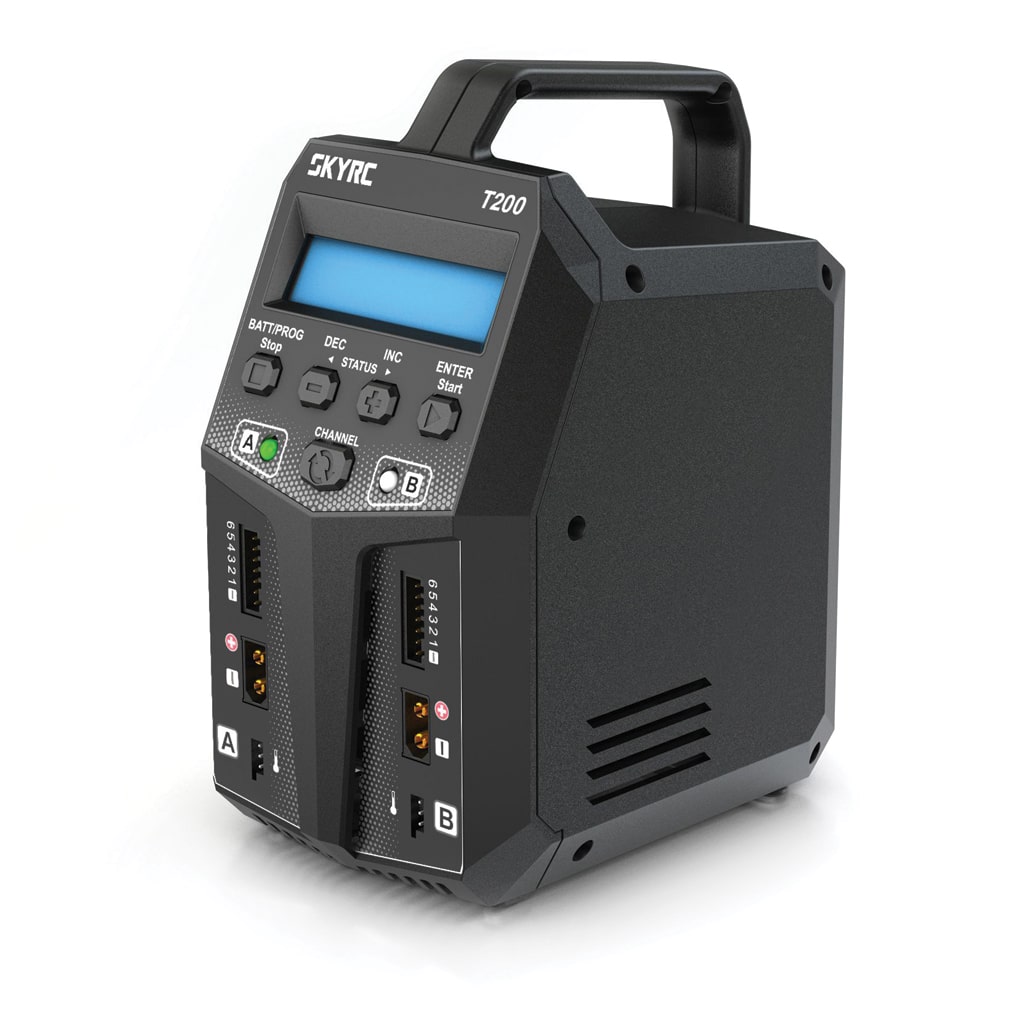

SKY RC T200 AC/DC 12A Charger SK-100155-04

SKY RC T200 AC/DC 12A Charger SK-100155-04

Highlights of this great charger include, dual output, AC/DC and up to 12A of charging power!
Includes UK 240v input lead and no charge leads.

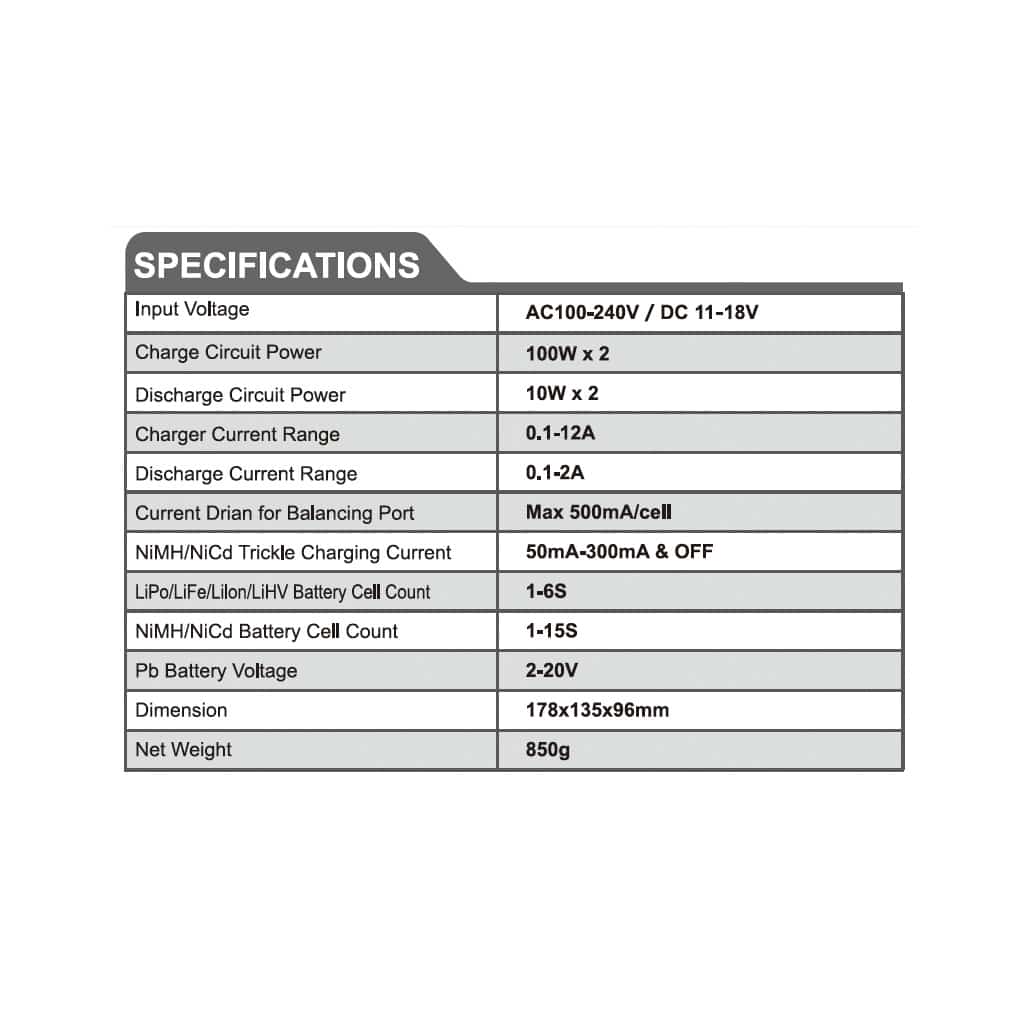

Specifications

Size and Weight

• Case Material: Plastic
• Case Size: 178x135x96mm
• Weight: 850g

Display

• Display Type: LCD
• Display Backlight: Blue

Power

• DC Input Voltage: 11-18V
• AC Input Voltage : 100-240V
• Charge Wattage: 100W X 2
• Discharge Wattage: 10W

Battery

• Battery Types/Cells:
• LiPo/LiHV/LiFe/LiIon: 1-6cells
• NiMH/NiCd: 1-15cells
• Pb: 2-20V

Battery Capacity Range:

• NiMH/NiCd:100-50000mAh
• LiPo/LiIon/LiFe/LiHV:100-50000mAh
• Pb: 100-50000mAh

Charge and Discharge

• Charge Voltage
• NiMH/NiCd: Delta peak detection
• LiPo: 4.18-4.25V/cell
• LiFe: 3.58-3.7V/cell
• Pb: 1.8-2.0V/cellLiIon: 4.08-4.2V/cell
• LiHV: 4.25-4.35V/cell

Discharge Cut-off Voltage

• NiMH/NiCd:0.1-1.1V/cell
• LiPo:3.0-3.3V/cell
• LiFe:2.6-2.9V/cellLiIon: 2.9-3.2V/cell
• LiHV: 3.1-3.4V/cell
• Battery Cutoff Temperature: 20ºC/68ºF-80ºC/176ºF(adjustable)
• Reading Voltage Range: 0.1-26.1V/cell
• Charge Current: 0.1A-12.0A
• Discharge Current: 0.1A-2.0A
• Balance Cells: 2-6 cells
• Balance Current: 500mA/cell
• Safety Timer: 1-120minutes off
• Charge Method:CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
• Memory: 10 different charge/discharge profiles
