Udi Rc UCX24 Snow Leopard 1/24th Crawler RTR B/Less 4Ws Yellow UCX2405PROY

Udi Rc UCX24 Snow Leopard 1/24th Crawler RTR B/Less 4Ws Yellow UCX2405PROY

High Bright LED Lights

• Headlights.
• Taillight.
• Upgradeable (Taillight/Turn lamp/Backup light).
• Decoration

Molded simulation fan.

• The age is molded from impact Nylon.

Wheels And Tyres

• 55mm All terrain tyres.
• Equipped With High-Speed Sealed Ball Bearings

Metal Transmission

• Metal mechanical variable speed

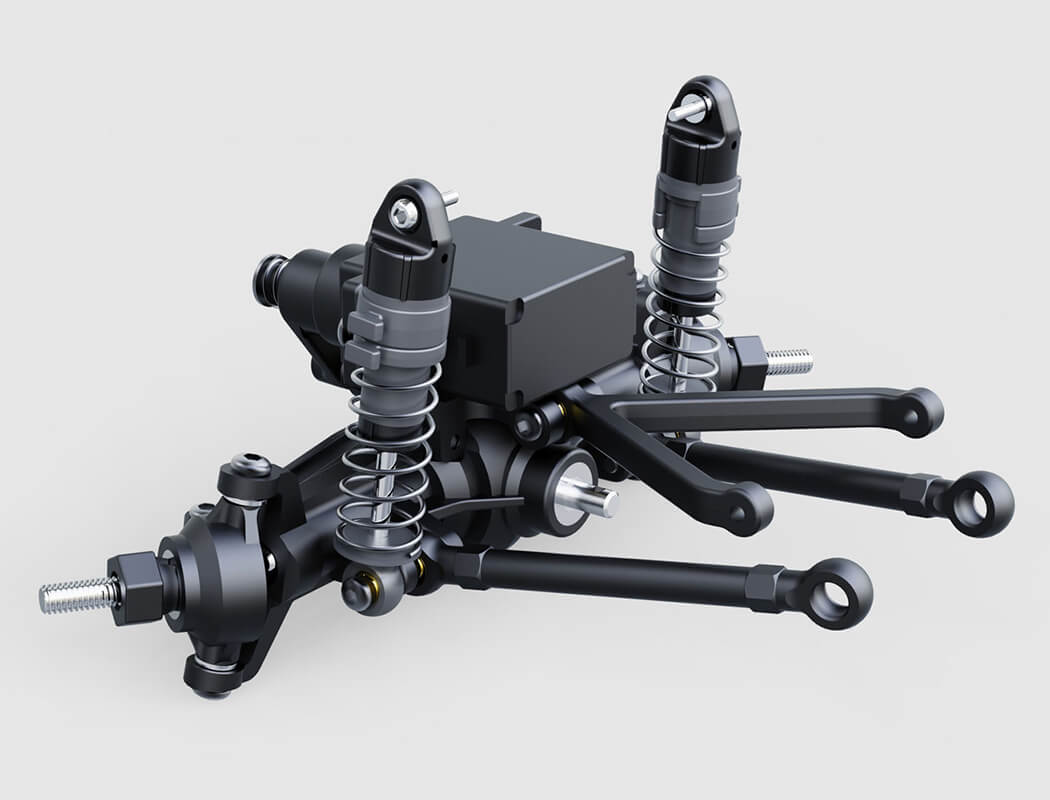

Suspension

• Provide proportional appearance and realistic off-road driving dynamics.
• Front and rear independent suspension damping system.
• Front and rear independent axles.

Steering

• 0.5kg digital Steering Servo.
• Upgradeable to front and rear steering.

Drivetrain

• Shiftable central gearbox.
• Upgradeable to differential.
• Front and rear universal drive shaft.

Specifications:

• Model Scale: 1/24
• Model Type: Off-road
• Assembly Time: Installing the battery
• Completion Level: RTR
• Length: 191mm
• Width: 122mm
• Height: 100mm
• Weight: 352g (Included battery)
• Front Wheel Track: 102mm
• Rear Wheel Track: 102mm
• Wheelbase: 135mm
• Ground Clearance: 27mm
• Transmission Distance: About 50m
• Power Type: Electric
• Motor Type: Brushless
• Differential: None (upgradable)
• Drive System: 4 wheel drive
• Drive Type: R/N/D/S
• Gear Ratio (High): 1:9.3
• Gear Ratio (Low): 1:58.6
• Tyre Diameter: 55mm
• Wheel Hub Diameter: 28.5mm
• Transmitters: UA37D
• Receiver: Included
• Servo: Included
• Suspension: Independent
• Car Lights: Including
• Motor Type: Brushless motor
• Weight: About 15.4g
• Size: 1212-01-1/L60DZ
• Dimensions: 29.5mm overall length, 22.5mm can length, 15.8mm diameter
• Output shaft: 2mm
• Input Voltage: 2s LiPo
• Case Size: L33.4mm × W30mm × H12.3
• Weight: About 10.8g
• Low Voltage Detection (LVD): supported
• Weak Signal Detection (WSD): supported
• BEC: 5V,1A
• Waterproof Level: None
• Crawl Mode: 4WD, Reverse, Changing gears, Front/Rear axle steering
• Lighting Modes:Headlight, Turn lamp, Taillight, Backup lights, H/light, Fog lamp

Steering Servo

• Case Size: 5g regular servo
• Torque: 0.5kg

Gear shift servo

• Case Size: 5g regular servo
• Torque: 0.5kg

What’s Included:

• Snow-Leopard 2405
• The vehicle with SCR and motor
• 2.4GHz transmitter
• Operation Guide
• Body sticker (complimentary, non matching)
• 350mAh, 7.4V Lipo battery
• USB charger

Needed To Complete:

• Battery for transmitter: 4 × 1.5V, AAA lkaline battery
