RC4WD Trail Finder 2 Truck Kit SWB Z-K0045

RC4WD Trail Finder 2 Truck Kit SWB Z-K0045

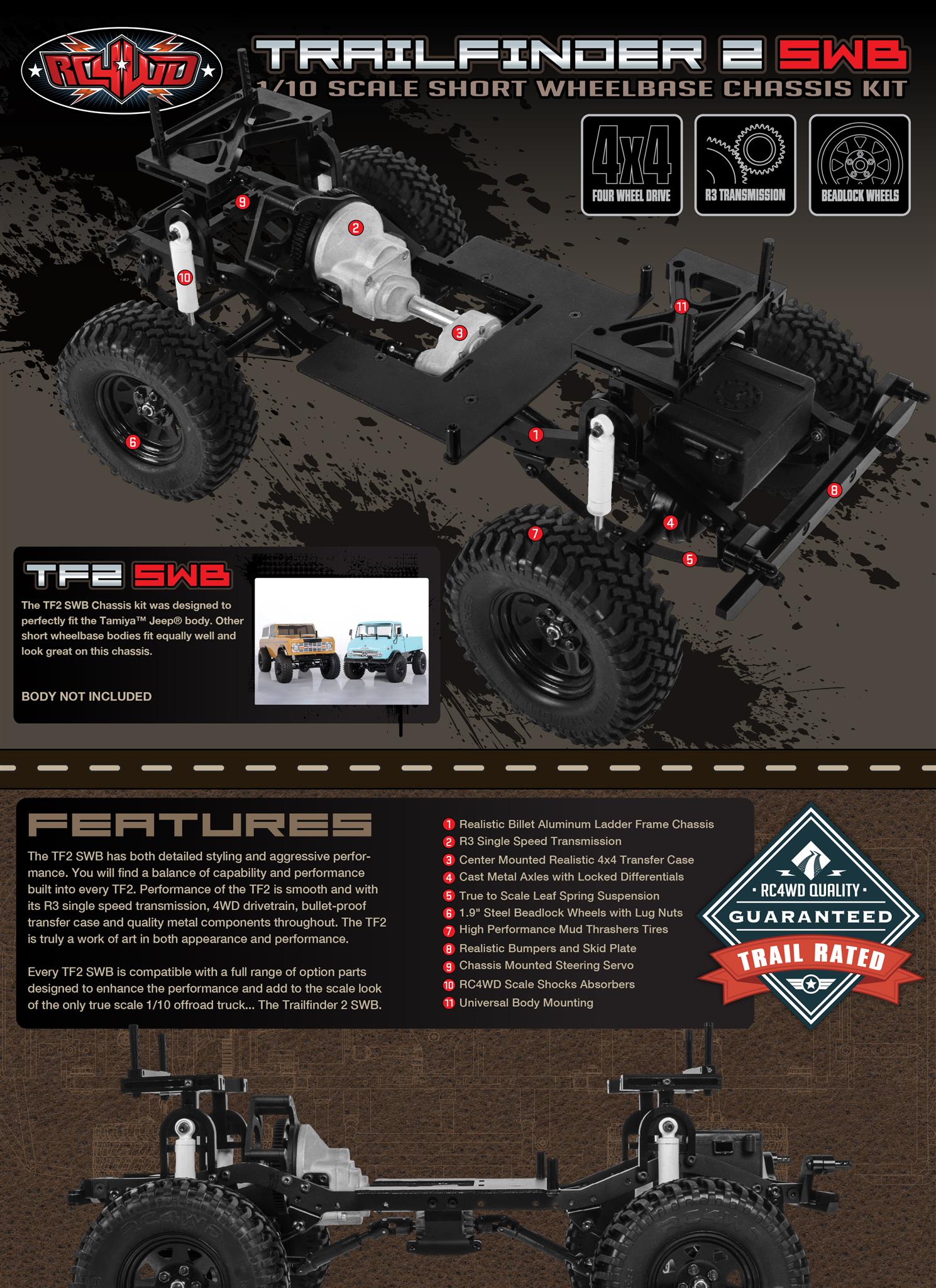

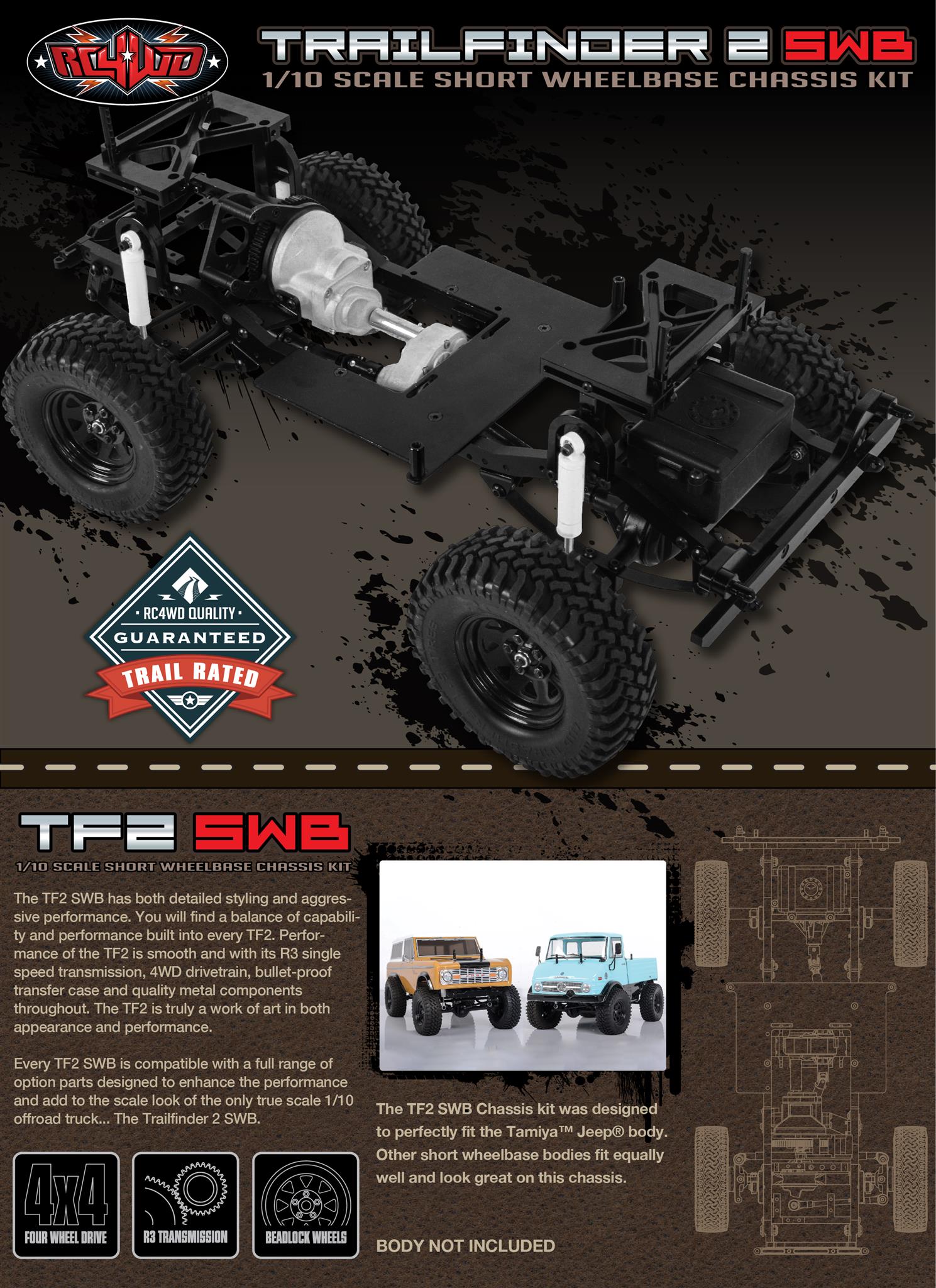

The TF2 SWB has both detailed styling and aggressive performance.
You will find a balance of capability and performance built into every TF2.
Performance of the TF2 is smooth and with its R3 single speed transmission, 4WD drivetrain, bullet-proof transfer case and quality metal components throughout.
The TF2 is truly a work of art in both appearance and performance.
Every TF2 SWB is compatible with a full range of option parts designed to enhance the performance
and add to the scale look of the only true scale 1/10 offroad truck… The Trailfinder 2 SWB.

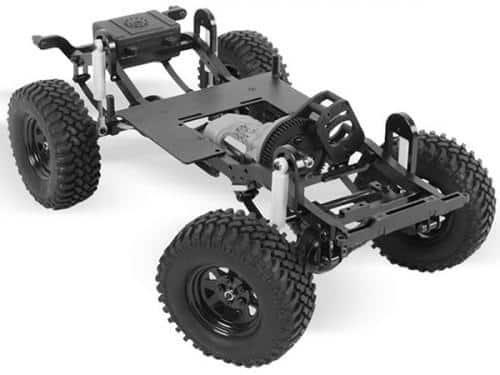

• Realistic Billet Aluminum Ladder Frame Chassis “SWB”
• R3 Single Speed Transmission
• Center Mounted Realistic 4×4 Transfer Case
• Yota II Ultimate Scale Cast Axle
• True to Scale Leaf Spring Suspension
• 5 Lug Wagon 1.9″ Steel Stamped Beadlock Wheels (Black)
• Mud Thrashers 1.9″ Scale Tires
• Realistic Bumpers and Skid Plate
• Chassis Mounted Steering Servo
• RC4WD Scale Shock Absorbers
• Plastic Rod Ends
• Full Ball Bearings

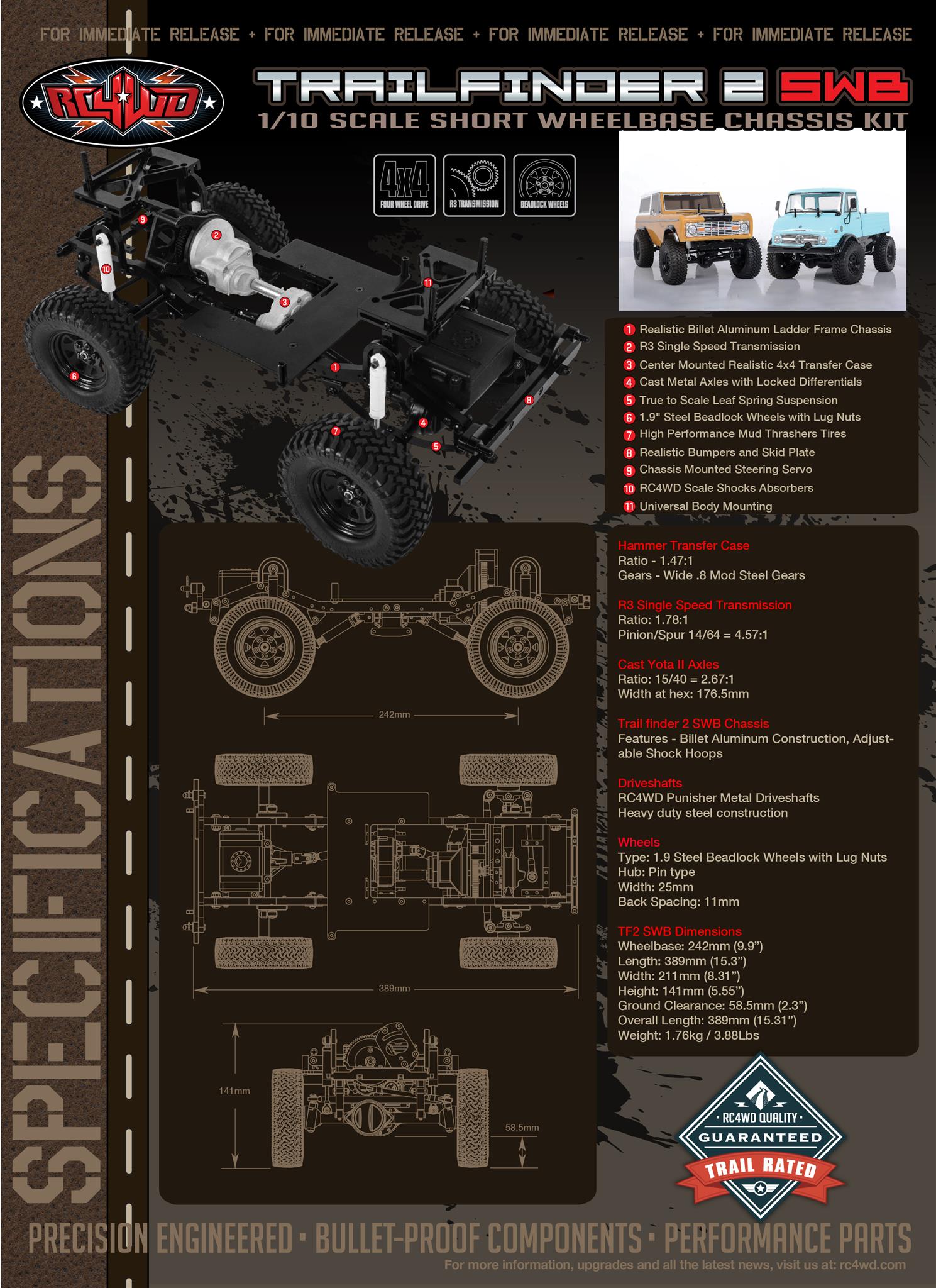

All New Hammer Transfer Case

• Ratio – 1.47:1
• Gears – Wide .8 Mod steel gears

All New R3 Single Speed Transmission

• Ratio: 1.78:1
• Pinion/spur 14/64 = 4.57:1

Cast Yota 2 Axles

• Ratio: 15/40 = 2.67:1
• Width at hex: 176.5mm

Trailfinder 2 SWB Chassis

• Features – Billet aluminum construction Adjustable shock hoops

Driveshafts

• RC4WD Punisher Metal Driveshafts
• Heavy duty steel construction

Wheels

• Type: 1.9 Steel Beadlock Wheels with Lug Nuts
• Hub: Pin type
• Width: 25mm
• Back spacing: 11mm

TF2 SWB Dimensions

• Wheelbase: 9.5in / 242mm
• Width: 8.3in / 211mm
• Height: 5.55in / 141mm
• Ground Clearance: 2.3in / 58.5mm
• Overall Length: 15.31in / 389mm
• Weight: 62.1oz / 1.76kg

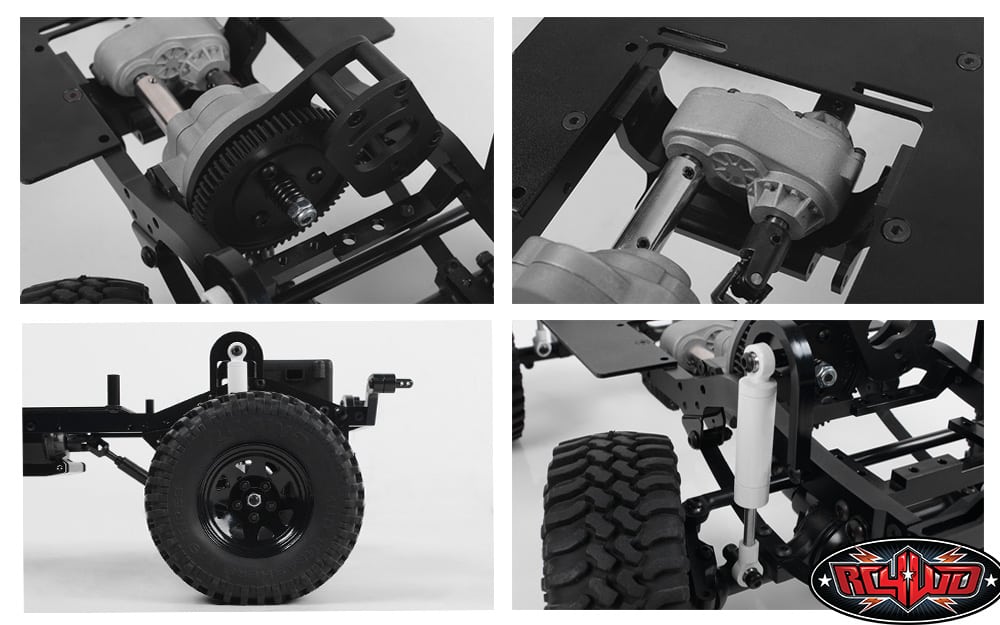

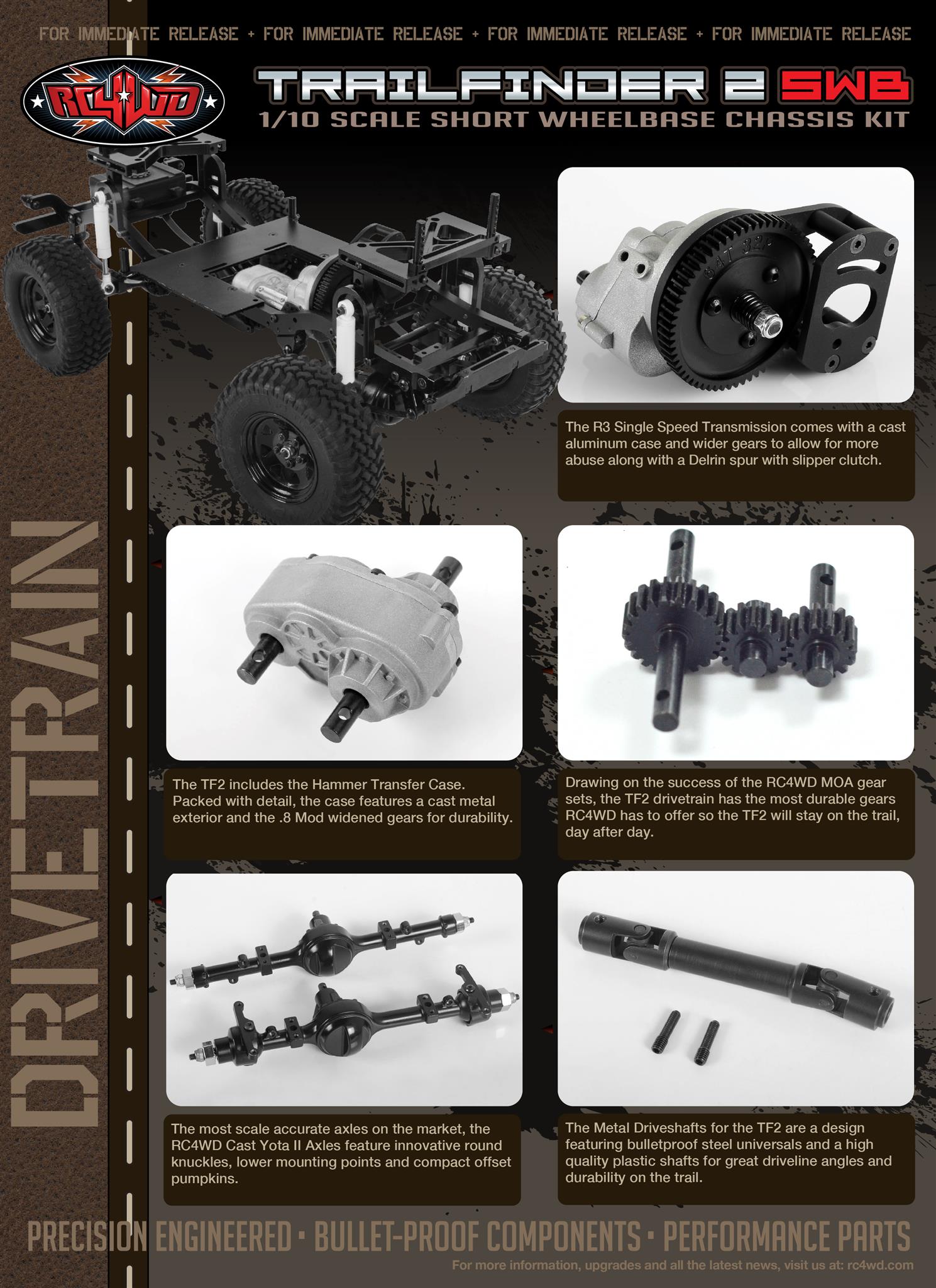

DRIVETRAIN

• The TF2 includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the .8 Mod widened gears for durability.
• The most scale accurate axles on the market, the RC4WD Cast Yota II axles feature innovative round knuckles, new lower mounting points and compact offset pumpkins.

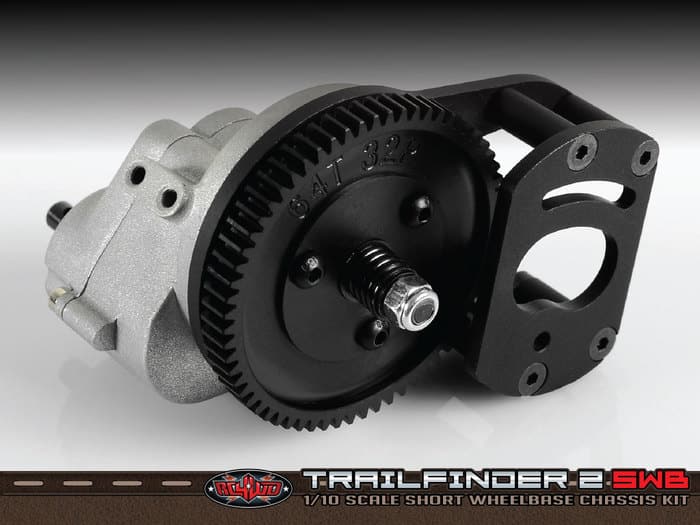

• The R3 Single Speed Transmission comes with a cast aluminum case and new wider gears to allow for more abuse along with a Delrin spur with slipper clutch.
• Drawing on the success of the RC4WD MOA gear sets, the TF2 drivetrain has the most durable gears RC4WD has to offer so the TF2 will stay on the trail, day after day.

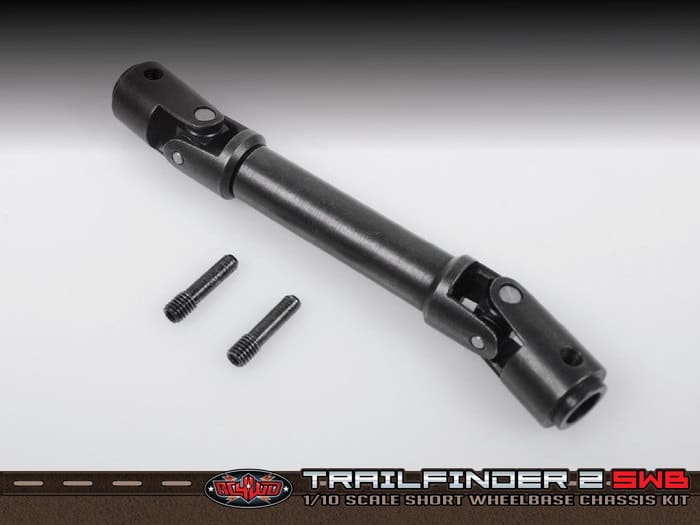

• The Metal Driveshafts for the TF2 are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.

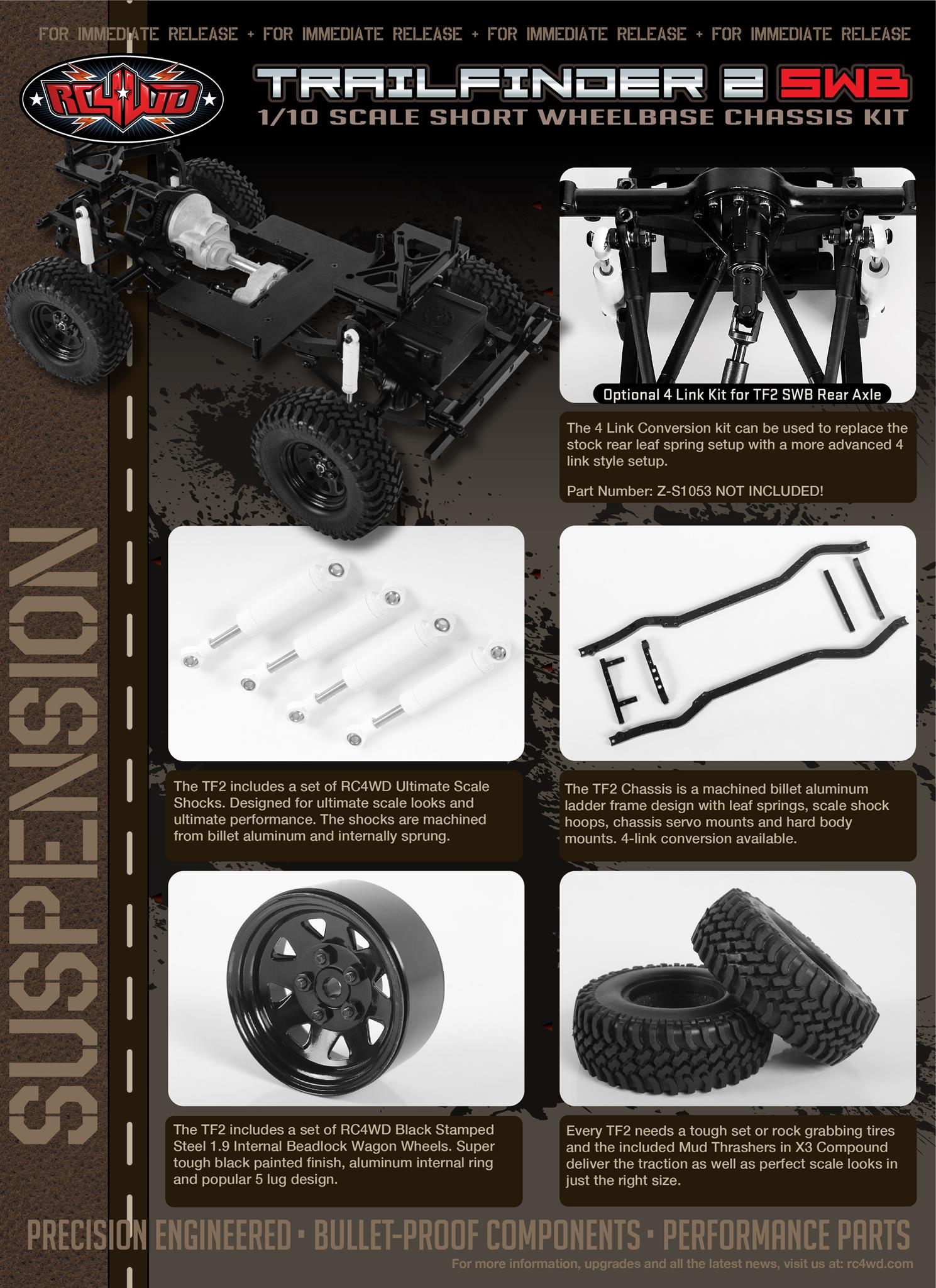

Suspensions

• The TF2 includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.
• The TF2 includes a set of RC4WD Black Stamped Steel 1.9 Internal Beadlock Wagon Wheels. Super tough black painted finish, aluminum internal ring and popular 5 lug design.

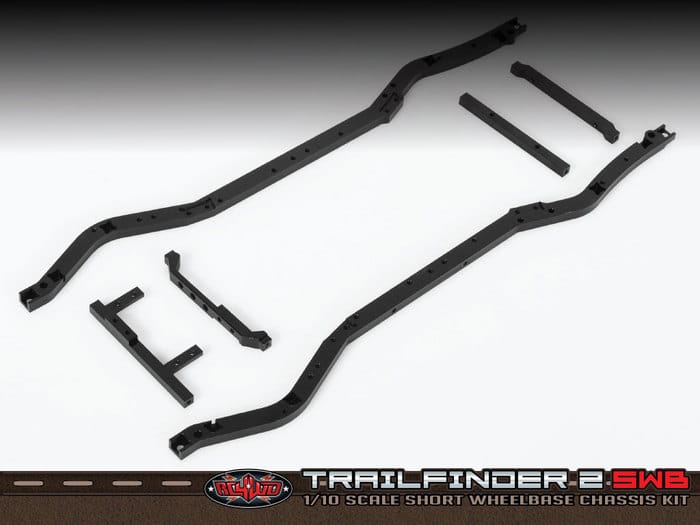

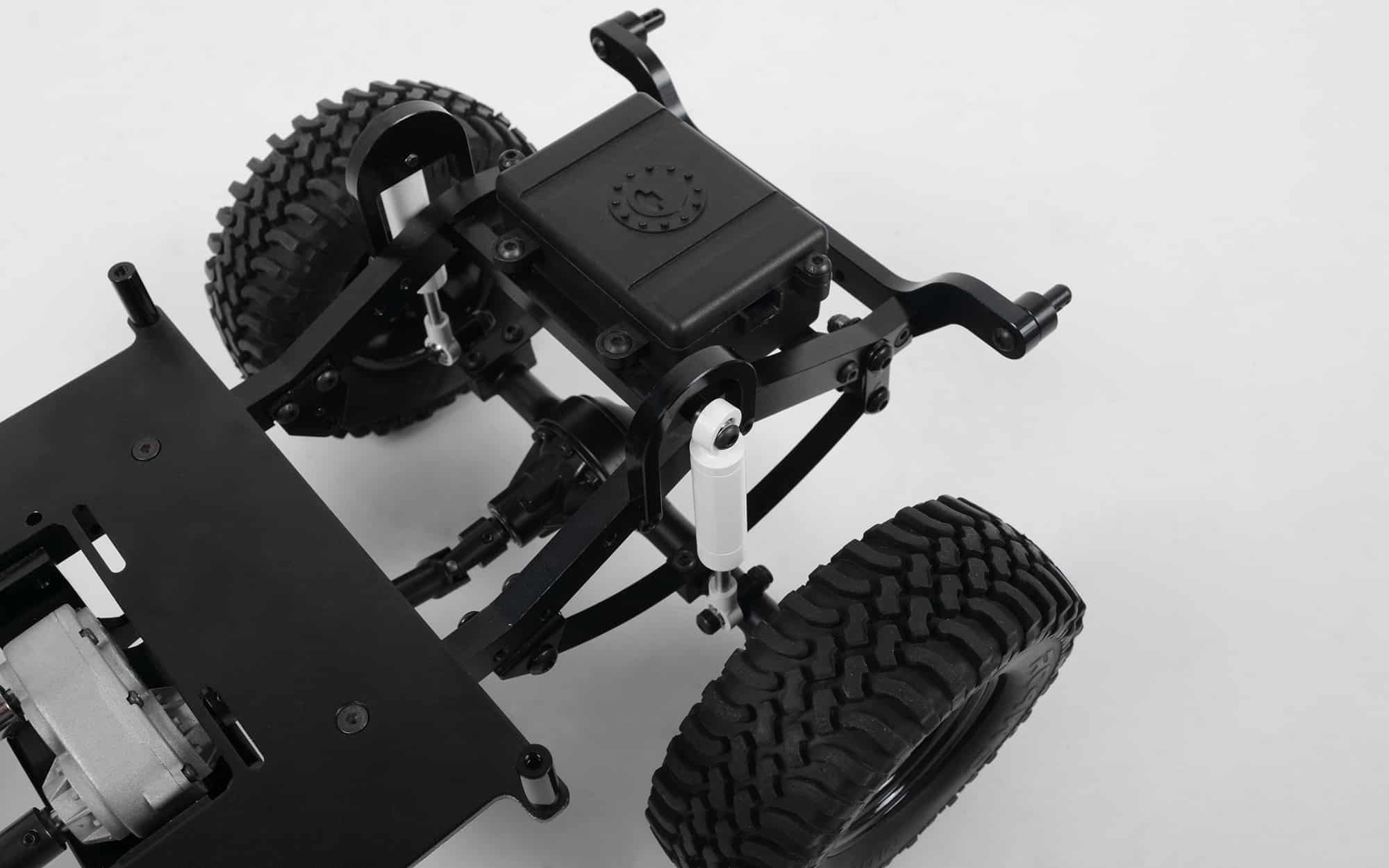

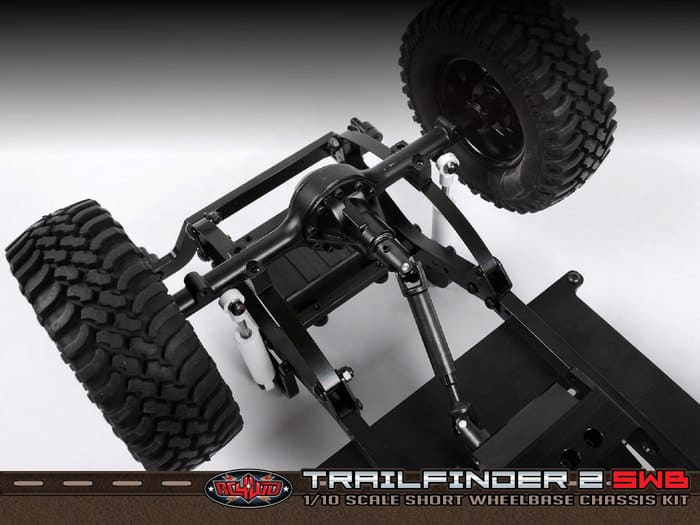

• The TF2 Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts. 4-link conversion available
• Every TF2 needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

The 4 Link Conversion kit can be used to replace the stock rear leaf spring setup with a more advanced 4 link style setup. Z-S1053 (Not Included)

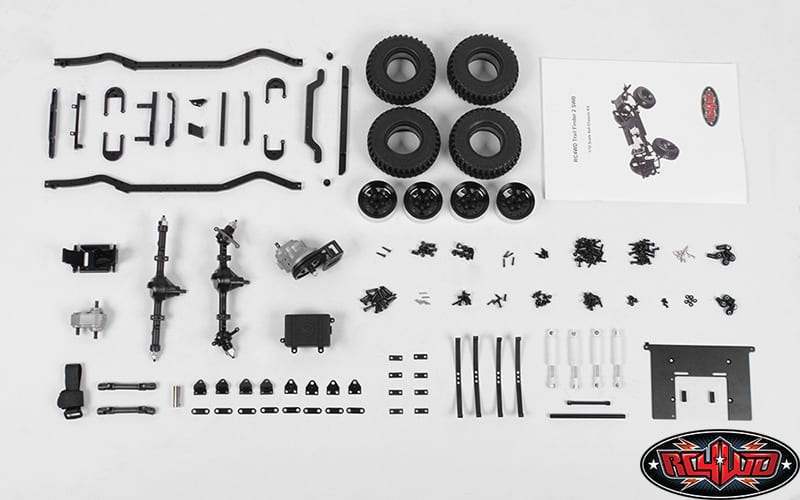

What’s Included:

• 1x RC4WD Trail Finder 2 SWB
• Universal Body Mounting Kit for TF2 SWB

Notes:

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

Required to Complete:

• Truck Kit
• Hex Drivers (1.5mm, 2mm, 2,5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics:

• Motor (35t, 45t, or 55t)
• Radio and Receiver (3 channel or more) (3 Channel Z-R0009)
• 1x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your “ESC” manual) Z-E0090 or comparable Lipo battery
• Charger (Consult your battery Guide) Chargers
