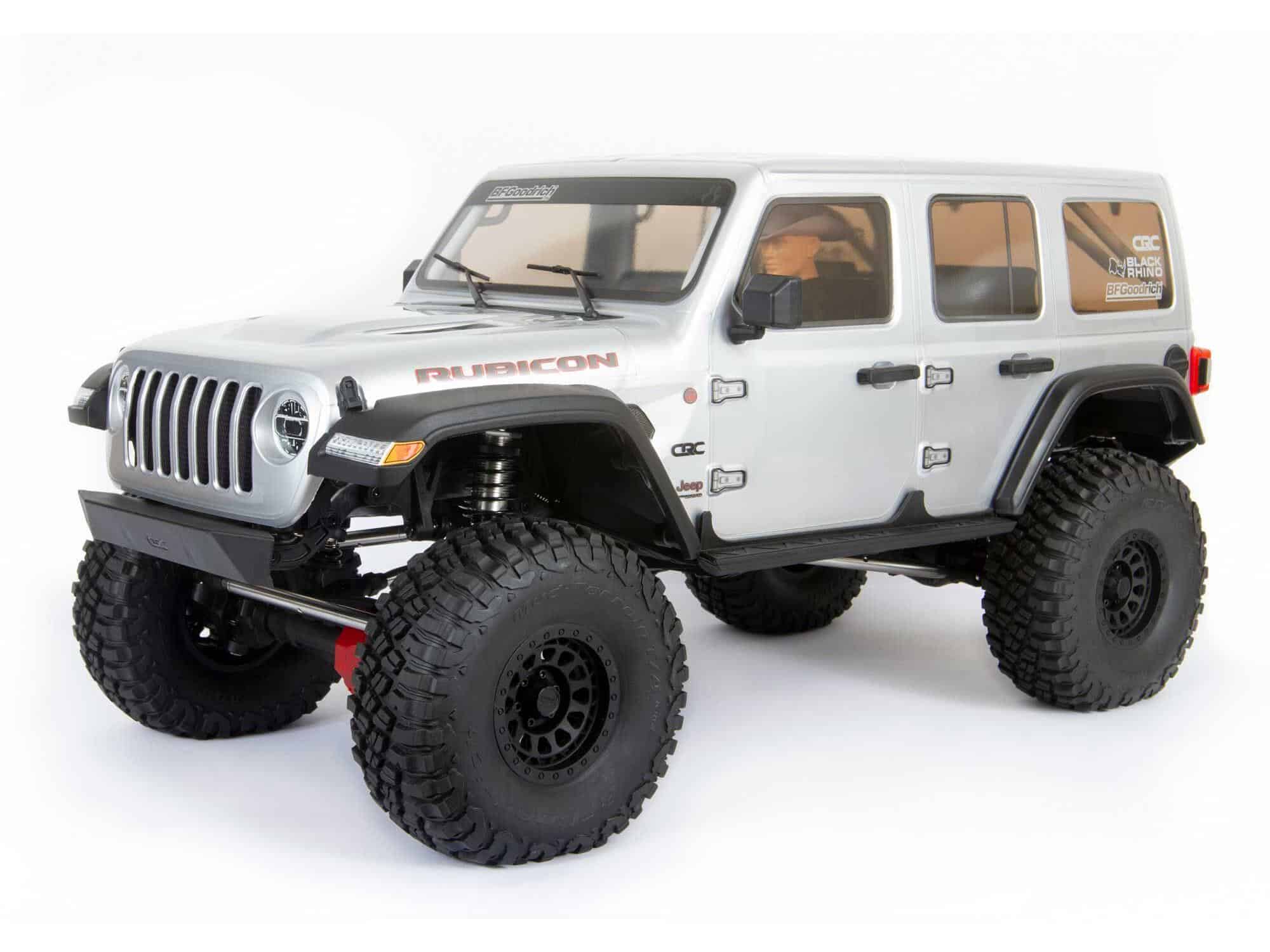

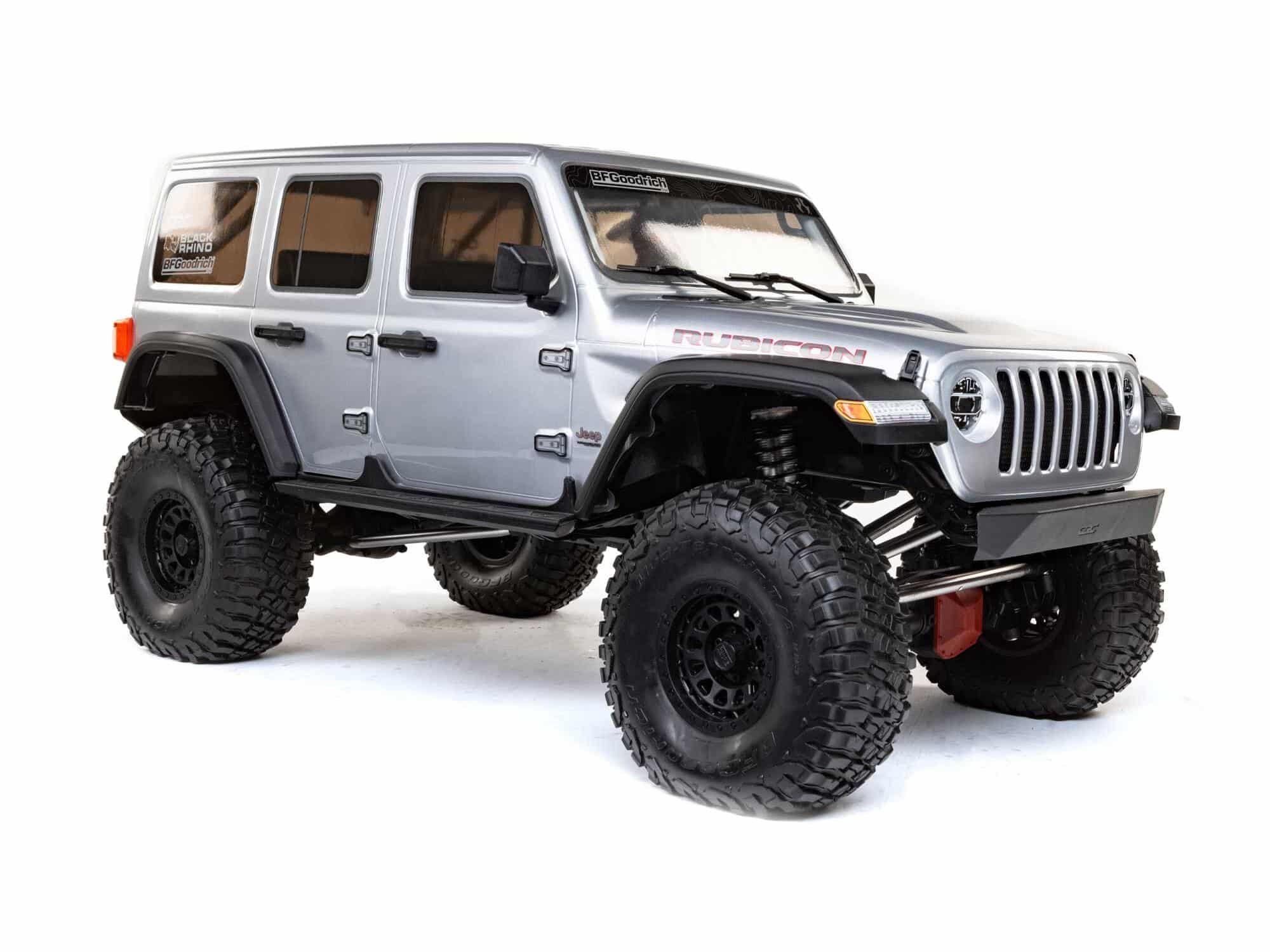

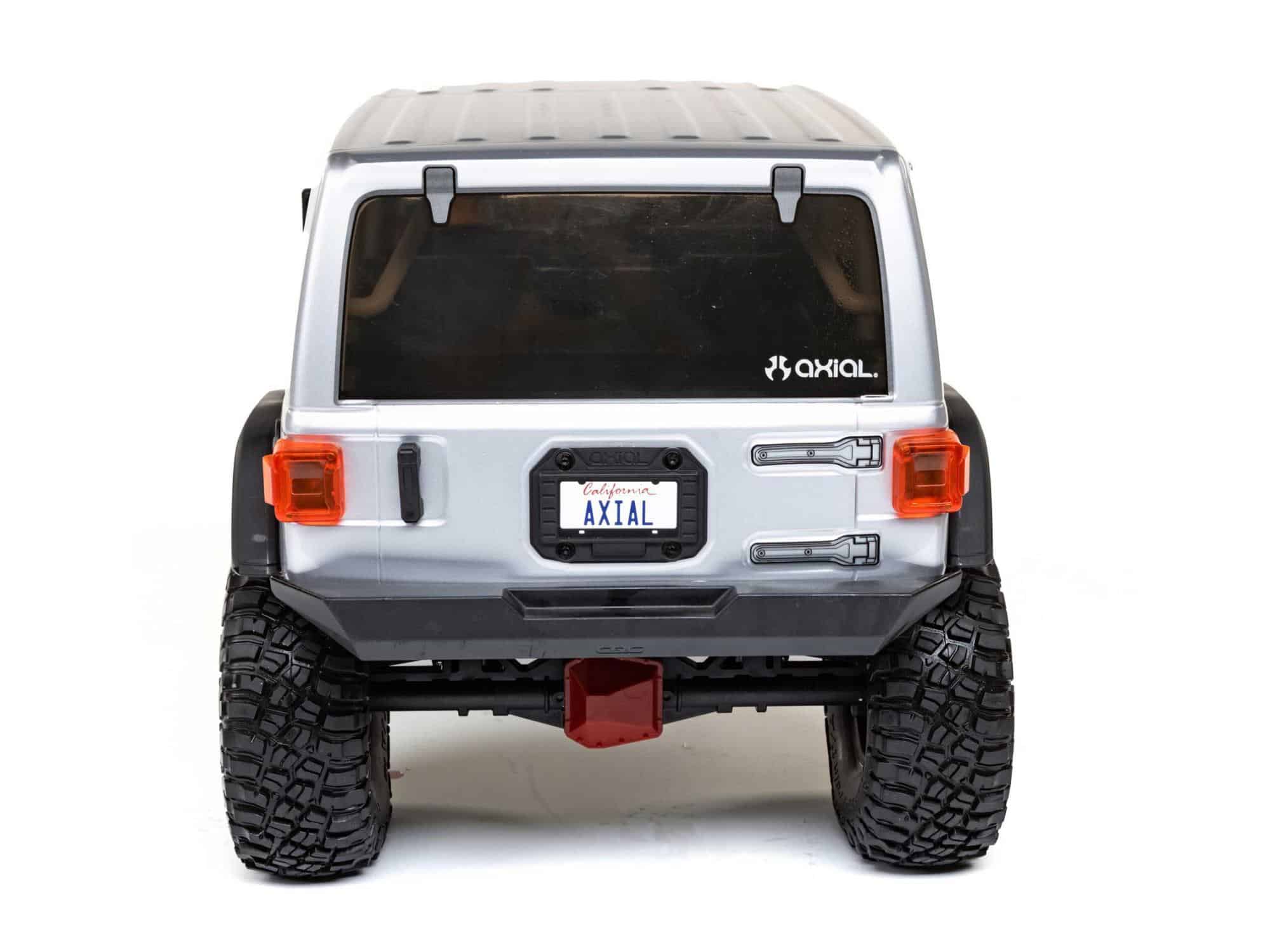

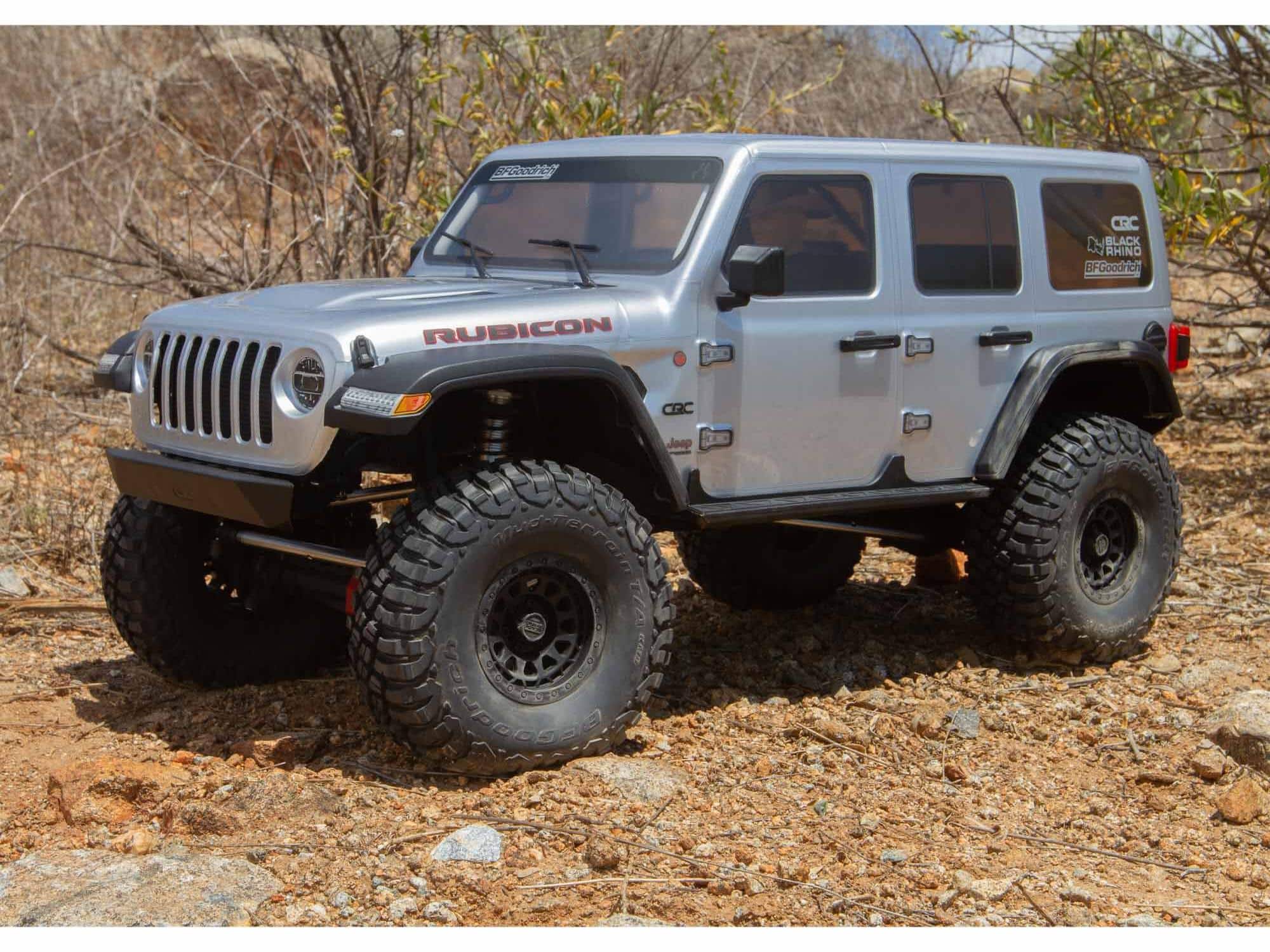

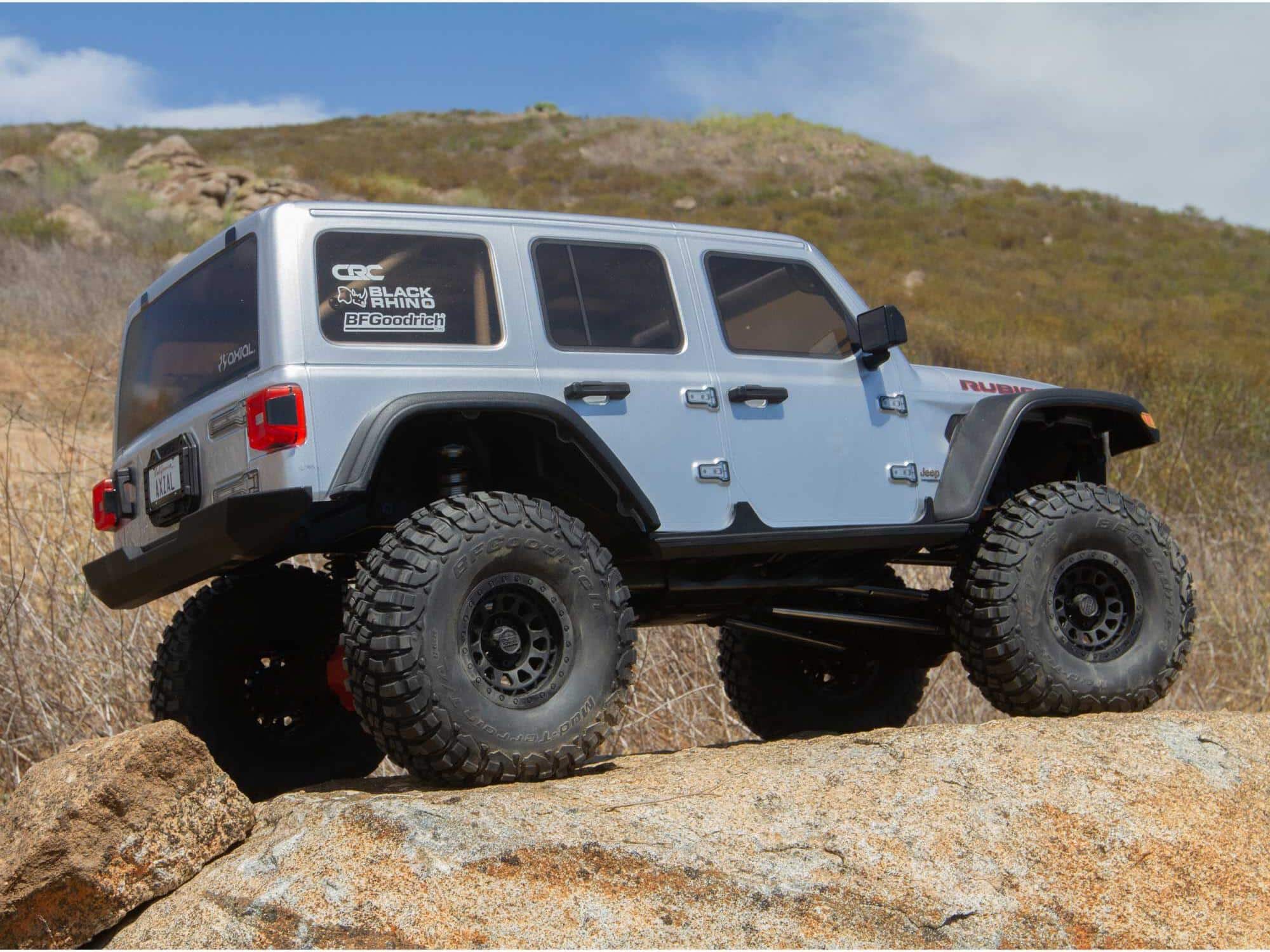

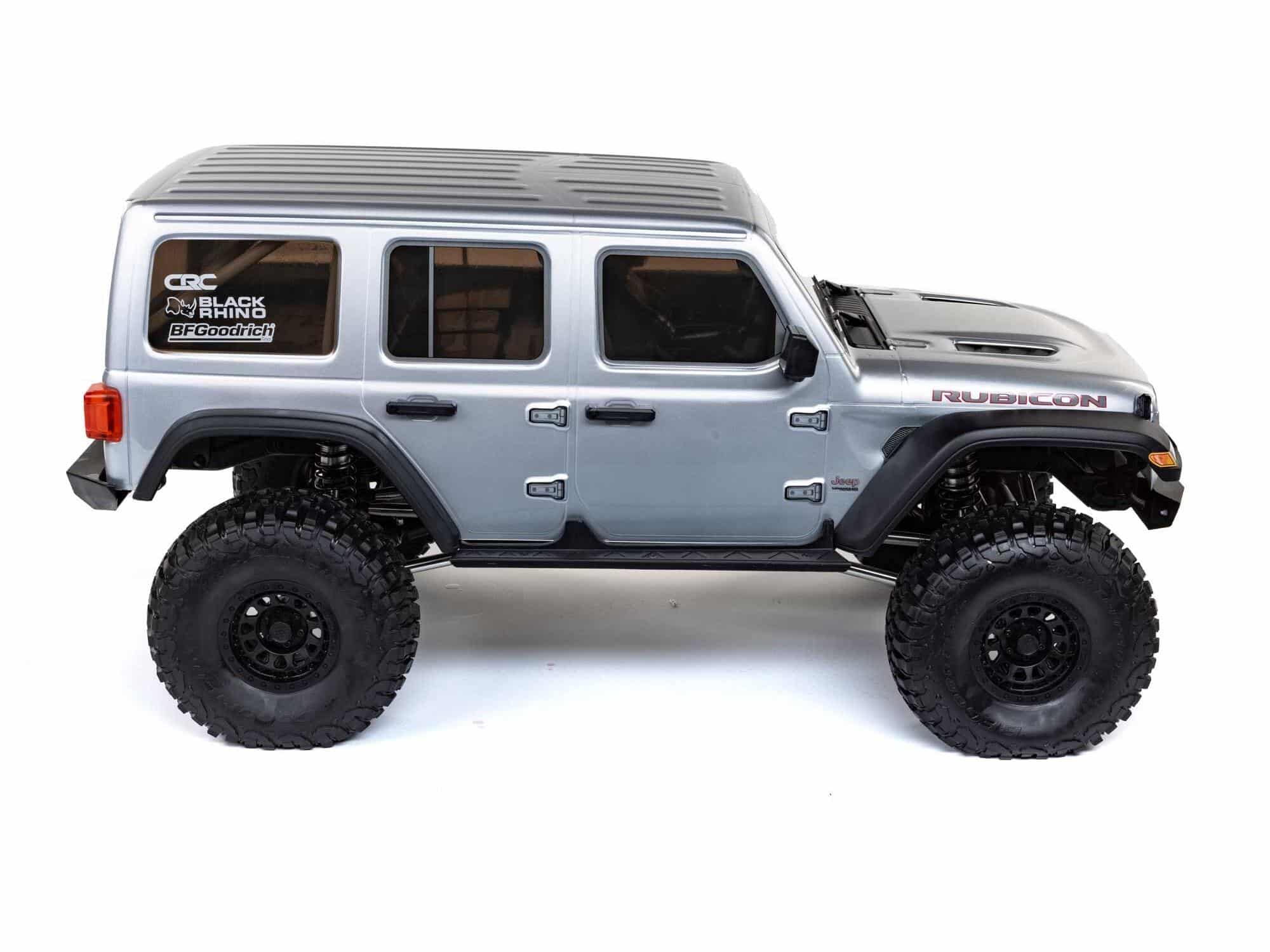

Axial 1/6th SCX6 Jeep JLU Wrangler 4WD Rock Crawler Silver AXI05000T2

Axial 1/6th SCX6 Jeep JLU Wrangler 4WD Rock Crawler Silver AXI05000T2

Fans of rock crawling, large-scale models, and Jeep vehicles alike will be thrilled with the extreme detail and high-performance functionality of the SCX6 Jeep JLU Wrangler 4WD RTR. At 1/6 scale, it takes Axial off-road adventuring to a new level.

Key Features

The first ever Axial 1/6 scale chassis design based on the proven SCX10 III
Metal gear transmission comes configured for two speeds with high and low gears
Includes AR90 “Standard” axles with a Heavy-Duty Spool
Durable three-link front and four-link rear suspension setup provides optimal handling
High-traction, 7″ tall BFGoodrich KM3 tYres mounted on Black Rhino Primm 3-piece beadlock wheels

In The Box

• (1) Axial SCX6 Jeep JLU Wrangler 1/6 Scale 4WD RTR
• (1) Spektrum DX3 Smart Transmitter with Thumb Steer
• (1) Spektrum 5-Channel DSMR Sport Receiver
• (1) Spektrum 1/6 40kg Waterproof Digital Servo
• (1) Spektrum 15kg Servo for 2-speed Shifting
• (1) Spektrum Firma Crawler 120A Sensored Brushless Smart ESC

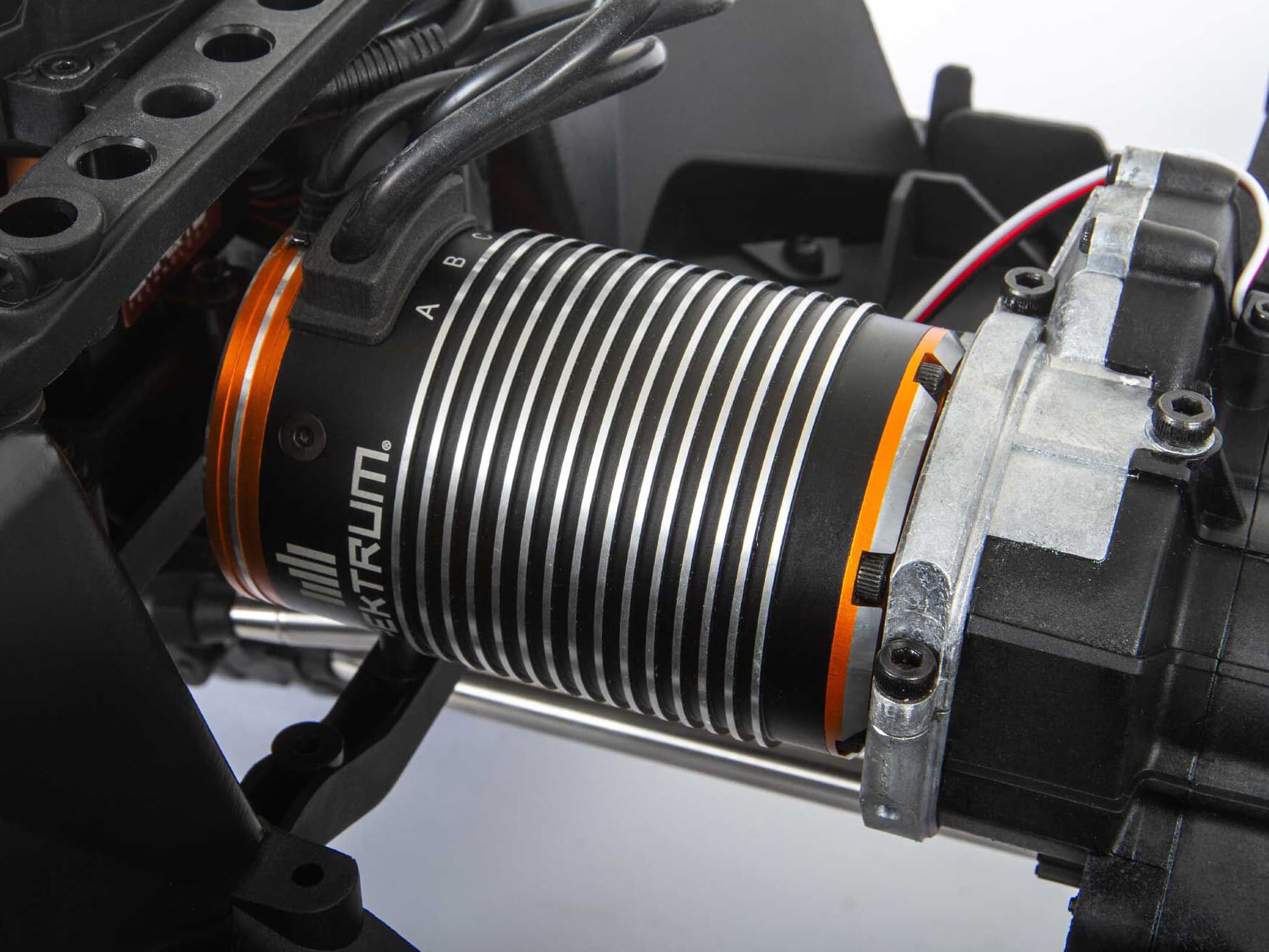

• (1) Spektrum Firma 1200Kv Sensored Brushless Motor
• (1) Servo Adapter for Large Scale Servos
• (1) Product Manual

Needed to Complete

• (1) 2S-3S Standard or “Shorty” LiPo Battery
• (1) Compatible Battery Charger

Features

• The first ever Axial® 1/6 scale chassis design based on the proven SCX10™ III
• Includes AR90 “Standard” axles with a Heavy-Duty Spool
• Metal gear transmission comes configured for two speeds with high and low gears
• Durable three-link front and four-link rear suspension setup provides optimal handling
• Replica V8 engine cover adds to the realistic appearance
• Spektrum™ DX3™ 2.4GHz DSMR® radio provides superior range, response, and interference resistance and is compatible with Smart technology
• Spektrum™ Firma™ Crawler 120A ESC feeds telemetry data to the DX3™ transmitter in real time
• Includes a powerful Spektrum™ S905 Large Scale Metal Gear steering servo (also accepts larger 1/5 scale servos with the included adapter)
• Detailed Jeep® JLU Wrangler body with LED headlights and taillights provides exceptional scale looks
• High-traction, 7″ tall BFGoodrich® KM3 tyres are mounted on Black Rhino Primm 3-piece beadlock wheels
• Battery trays adjust to fit a wide range of battery sizes
• Axial Takes Scaling To A New Level
• At 1/6 scale, the ready-to-run SCX6™ Jeep® JLU Wrangler 4WD brings a whole new dimension to RC crawling — and Axial® engineers have done it right. Whether you’re a fan of full-size
• Jeep® vehicles, rock crawling, large-scale models, or all of the above, you’ll be thrilled by the amount of realistic detail and high-performance functionality found here.

The SCX6™ Jeep® JLU Wrangler 4WD takes Axial® “scaling” to the next level. Based on the proven SCX10™ III, the SCX6™ chassis might be considered its big brother. It’s engineered for extreme durability and performance with AR90 axles. For optimal handling, the chassis has a three-link Panhard front and four-link rear suspension setup. The transmission offers high and low gears out of the box, with a Spektrum™ S614 Metal-Gear Servo included and installed for the two-speed linkage.

While the 1/6 scale size allows more room for impressive detail, the SCX6™ Jeep® JLU Wrangler 4WD still fits conveniently into the trunk of your car — and most rock gardens and hiking trails provide plenty of exciting challenges to overcome. As you navigate the trails, you’ll admire how well the Jeep® JLU Wrangler body reproduces its full-size counterpart. Even the most demanding Jeep® enthusiasts will appreciate the accuracy of the details molded throughout. When the sun goes down, LED headlights and taillights add even more realism.

Massive, 7″ tall BFGoodrich® KM3 tyres provide excellent grip and ground clearance for dirt, rocks, and all other off-road surfaces. They’re mounted on licensed Black Rhino Primm injection-molded, 3-piece beadlock wheels so that the tyres can be removed and replaced easily without gluing. Forest, desert, lake, mountains…the SCX6™ Jeep® JLU Wrangler 4WD is ready to go anywhere.

With the included Spektrum™ DX3™ radio, you’ll enjoy the superior range, response, and interference resistance of exclusive DSMR® technology. Together with the installed Firma™ Crawler 120A Smart Sensored-Brushless ESC, it also comes ready to deliver the telemetry advantages of exclusive Spektrum™ Smart technology. Install a Spektrum™ Smart LiPo battery and you can view vehicle battery capacity on the transmitter’s voltage level indicator. Outfit the DX3™ with the optional BT2000 Bluetooth module, download the free Spektrum™ Dashboard app to your smart device, and you’re ready to use more Smart real-time telemetry — without needing on-board sensors or modules.

With its 1/6 scale size, popular Jeep® styling, and unstoppable Axial® engineering, the SCX6™ Jeep® JLU Wrangler 4WD takes RC scaling to an exciting new level. Just add your choice of suitable battery and take on the rocks!

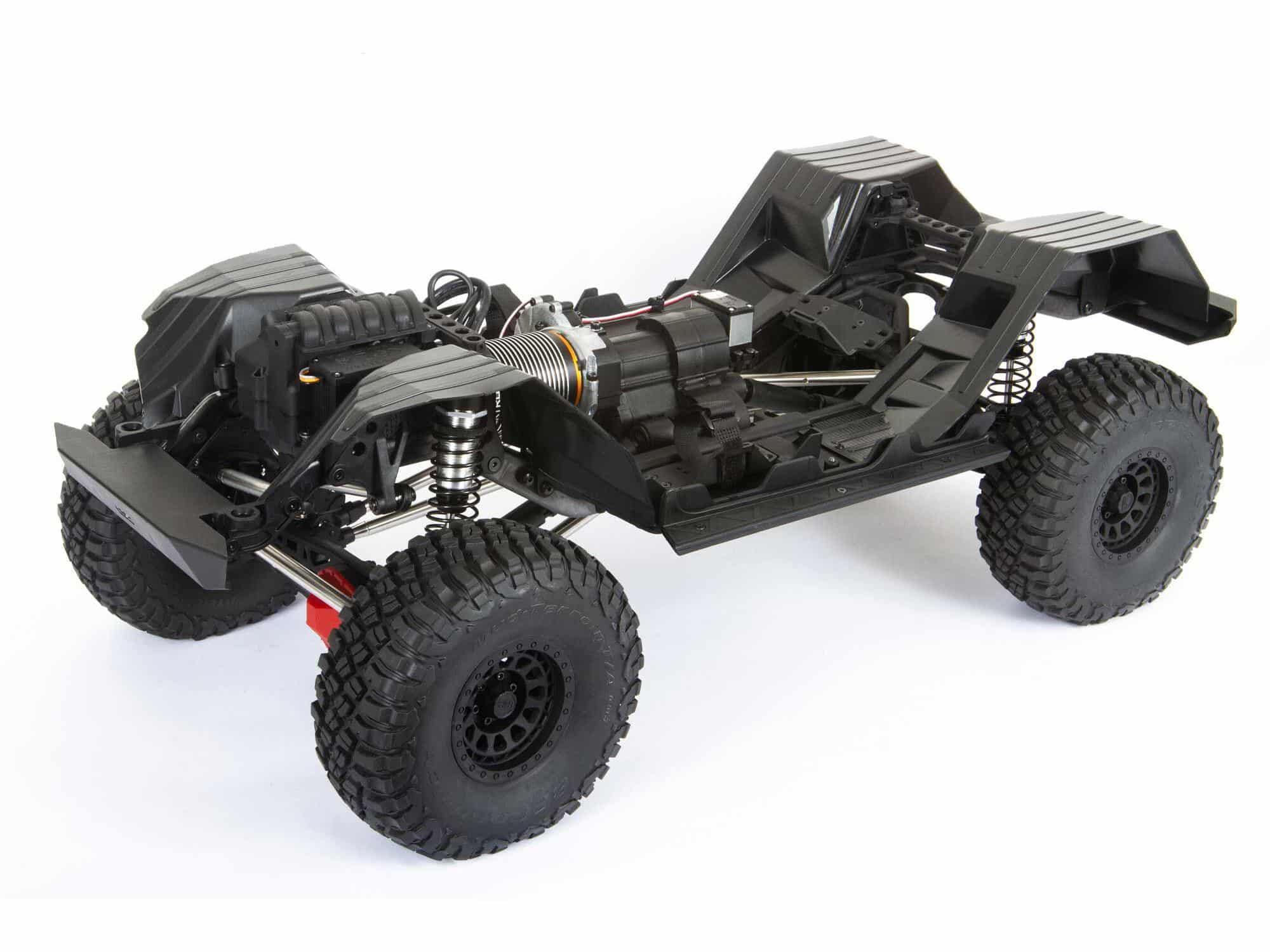

SCX6™ CHASSIS

Based on the proven SCX10™ III layout, the 1/6 scale SCX6™ takes durability, functionality, and performance to the next level with features that include a steel chassis, 4-wheel drivetrain, multi-link suspension, AR90 axles, oil-filled shocks, and more.

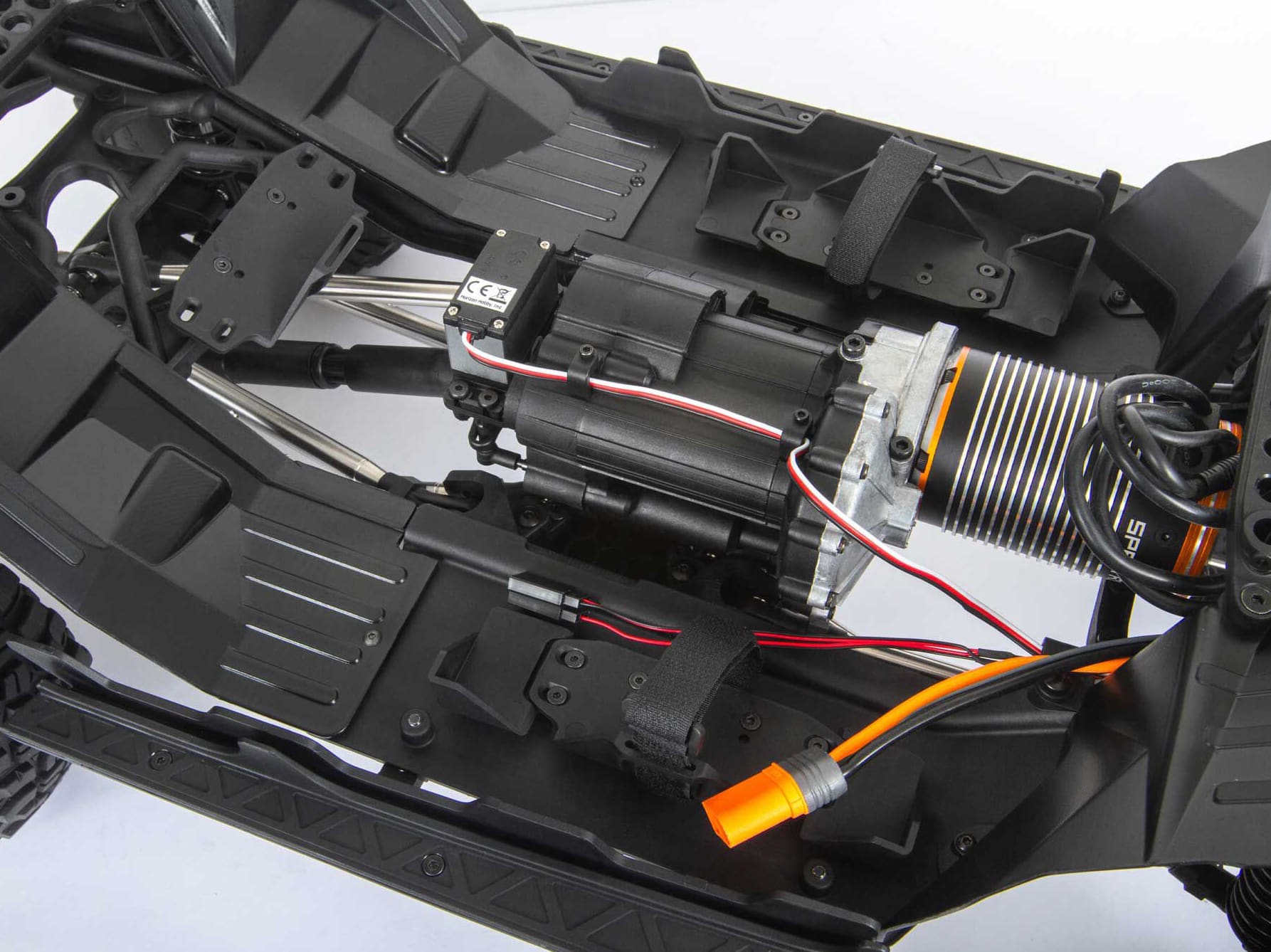

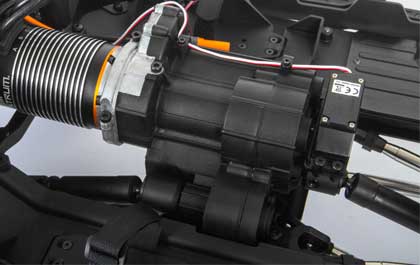

TWO-SPEED METAL GEAR TRANSMISSION

Out of the box, the Axial® SCX6™ Jeep® JLU Wrangler 4WD RTR is configured for two speeds with high and low gears. A Spektrum™ S614 Metal-Gear Servo is included for the two-speed linkage.

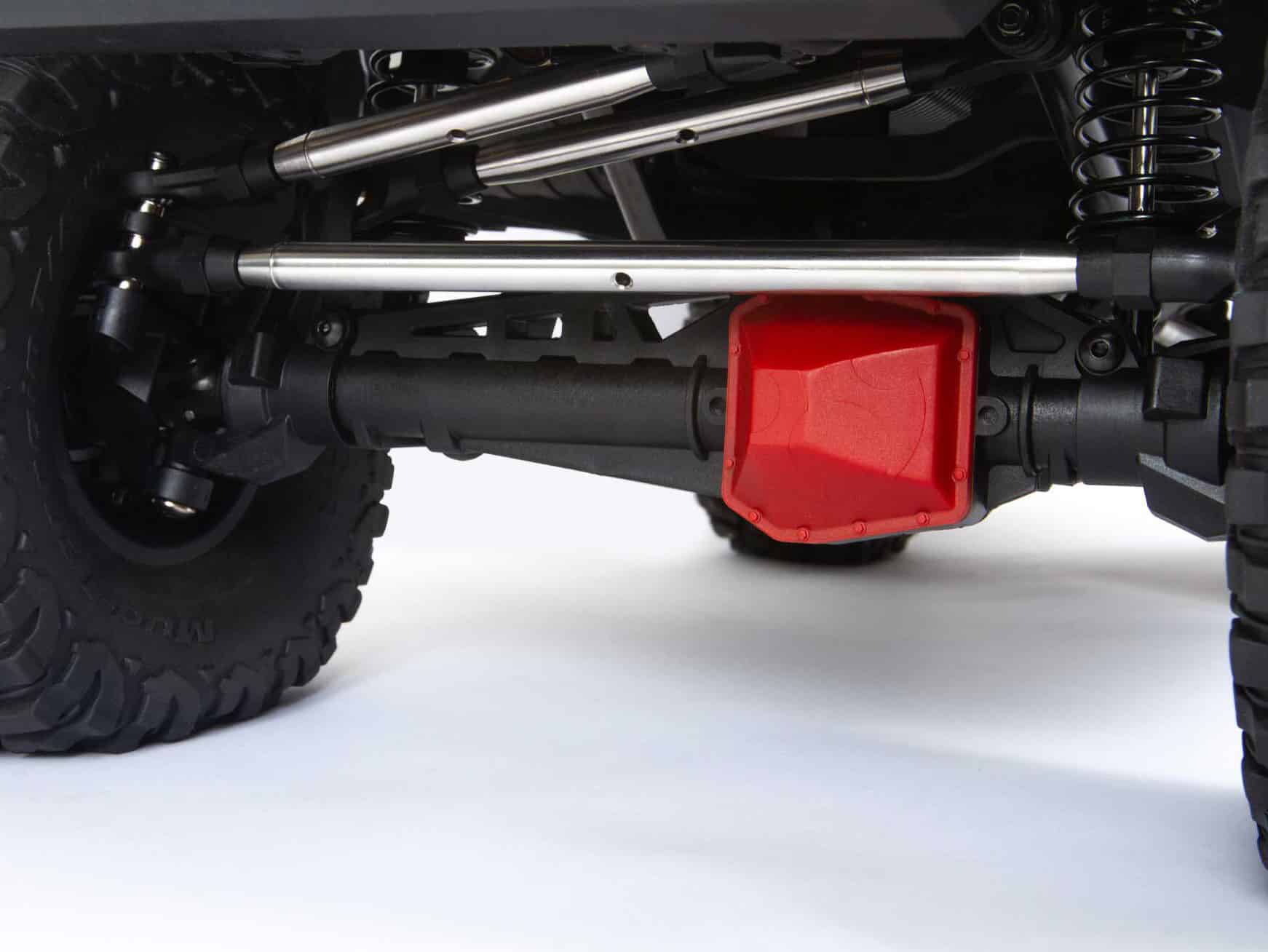

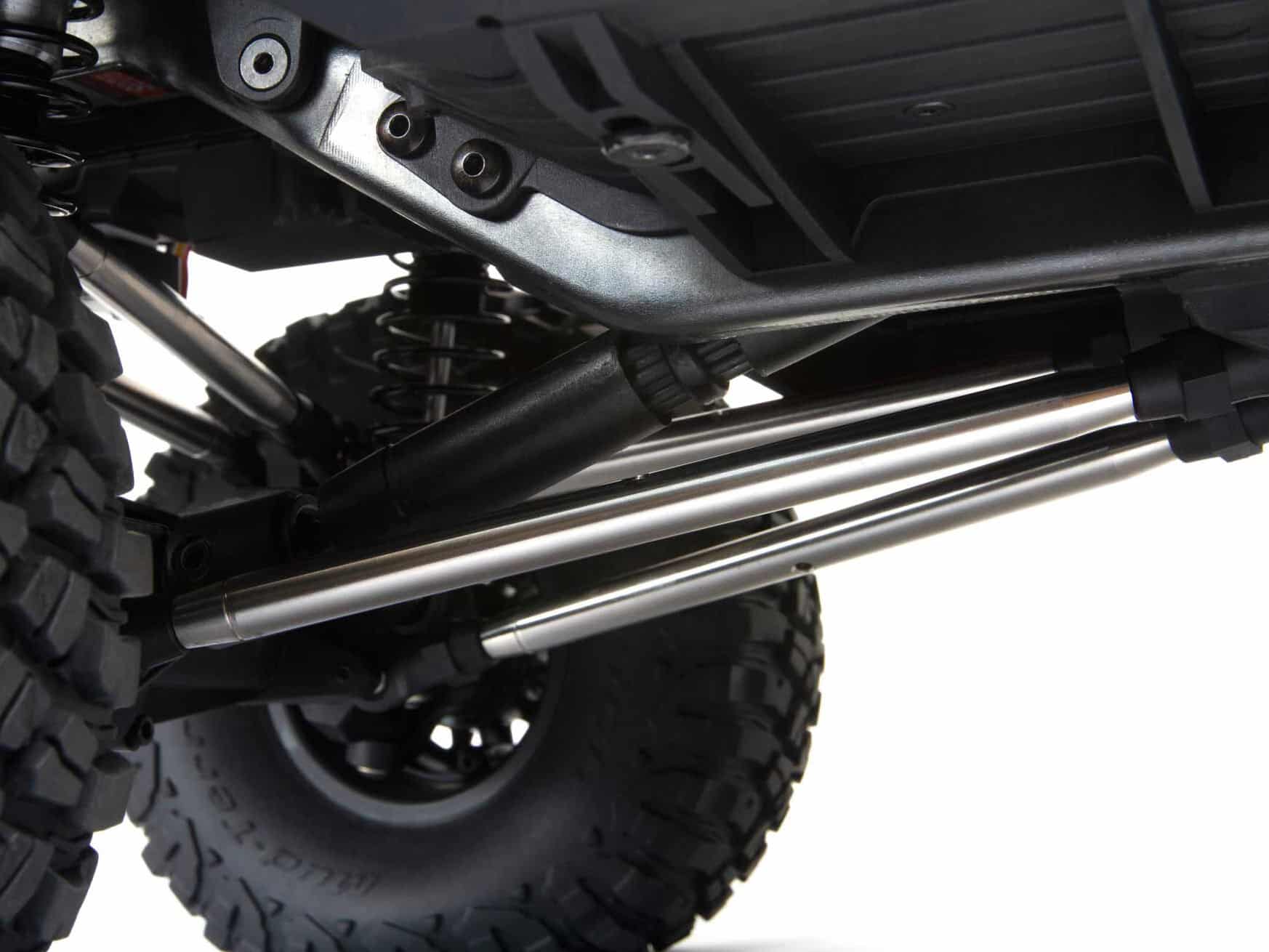

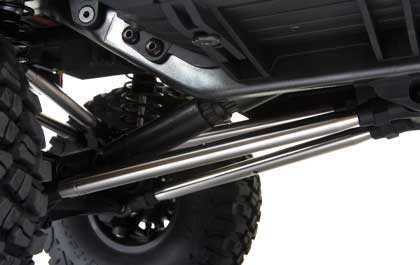

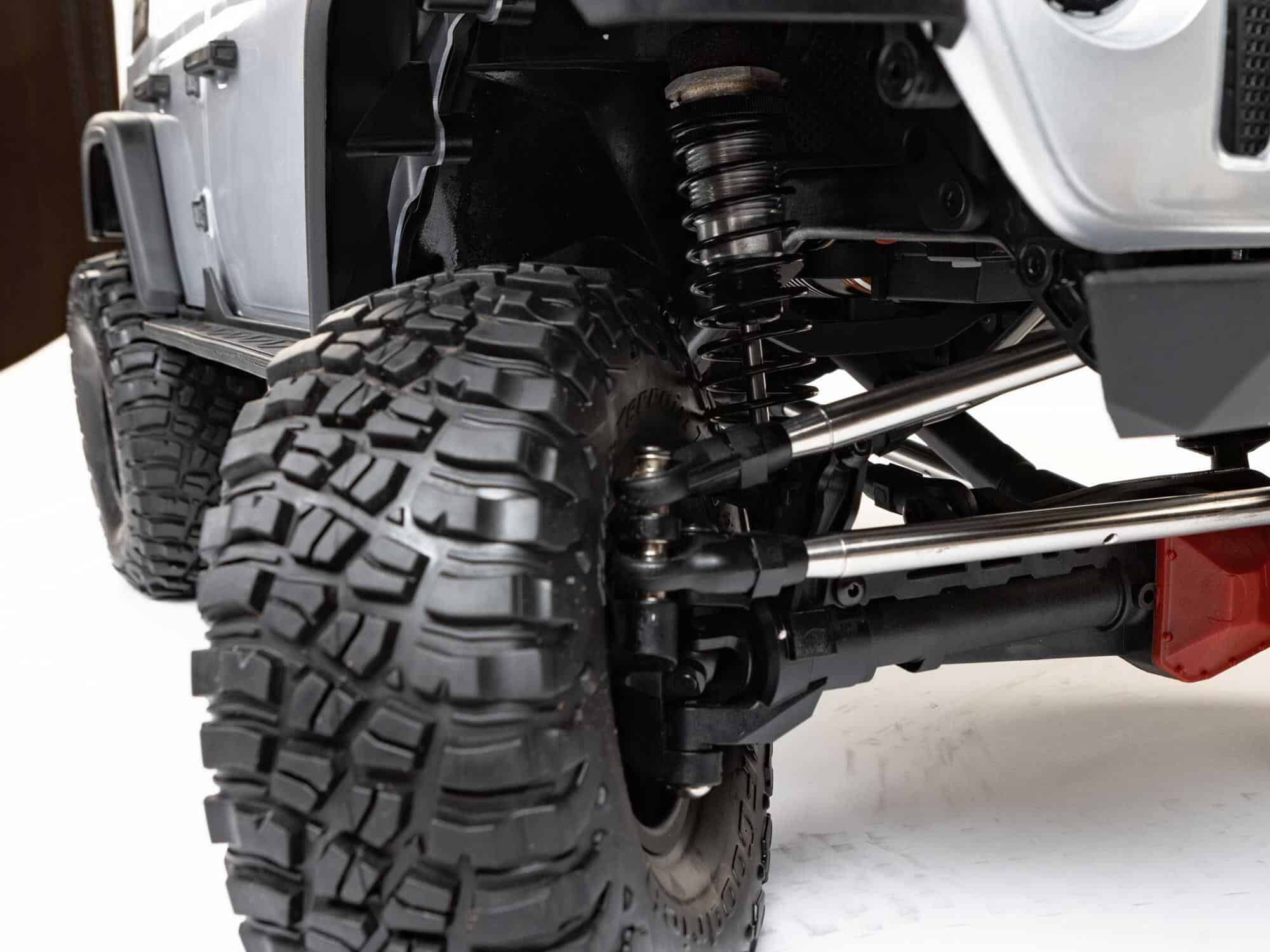

3-LINK FRONT/4-LINK REAR SUSPENSION

For optimal handling, the SCX6™ suspension features a durable three-link front and four-link rear setup.

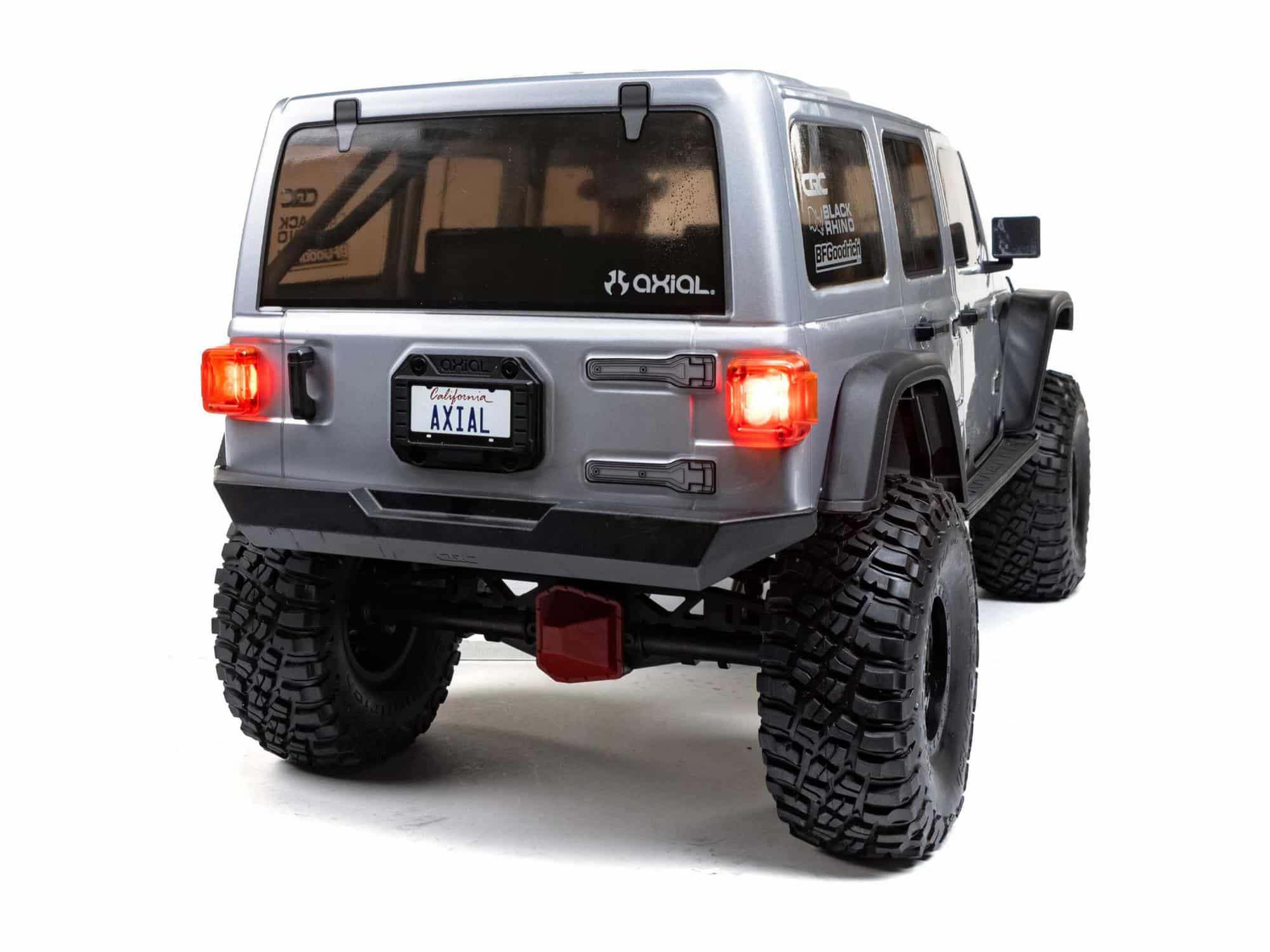

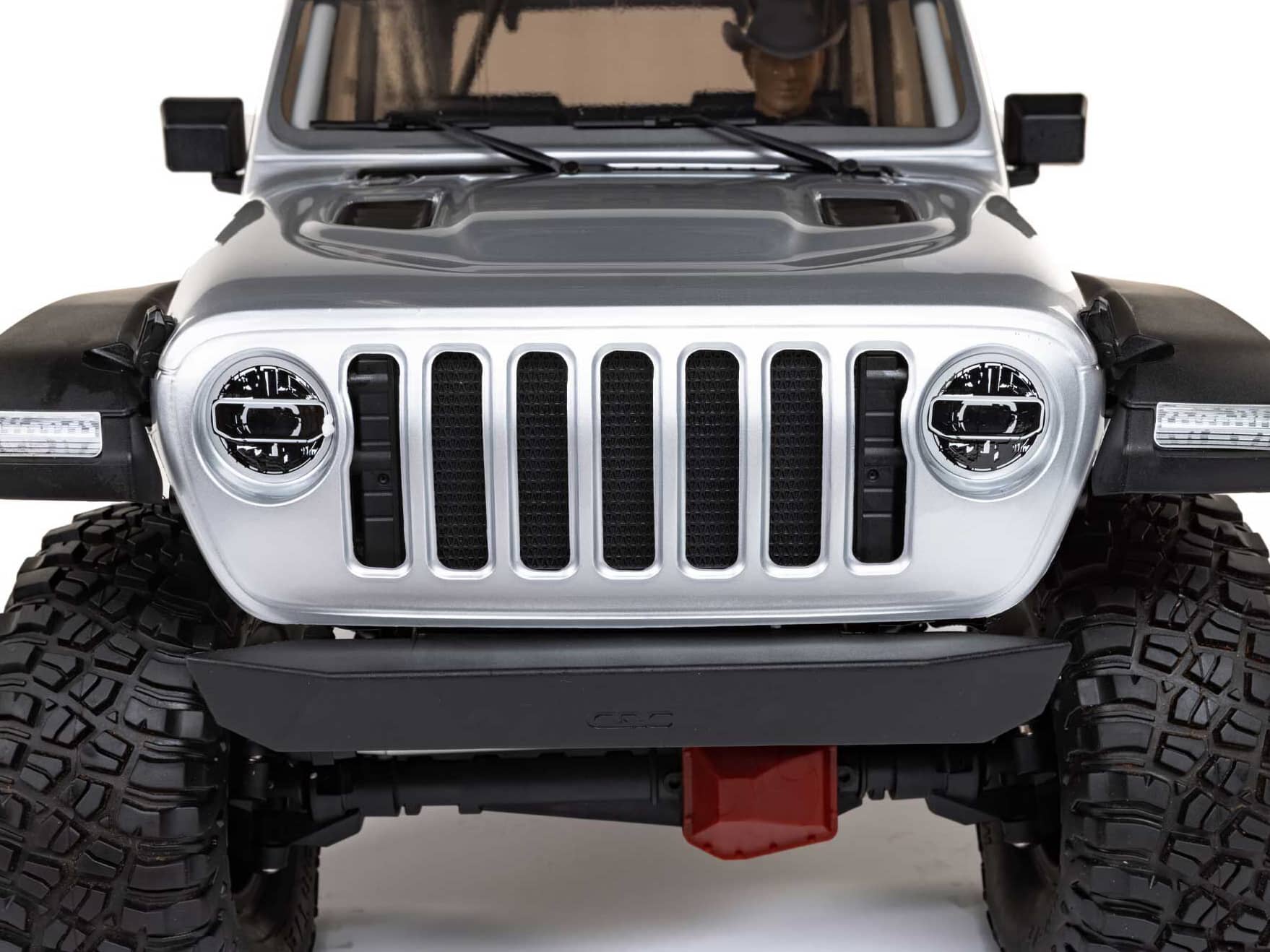

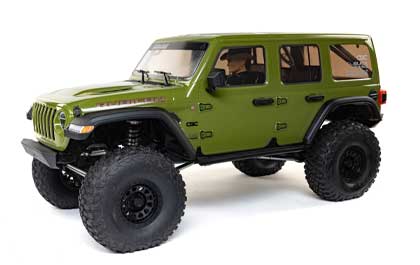

JEEP® JLU WRANGLER SCALE BODY

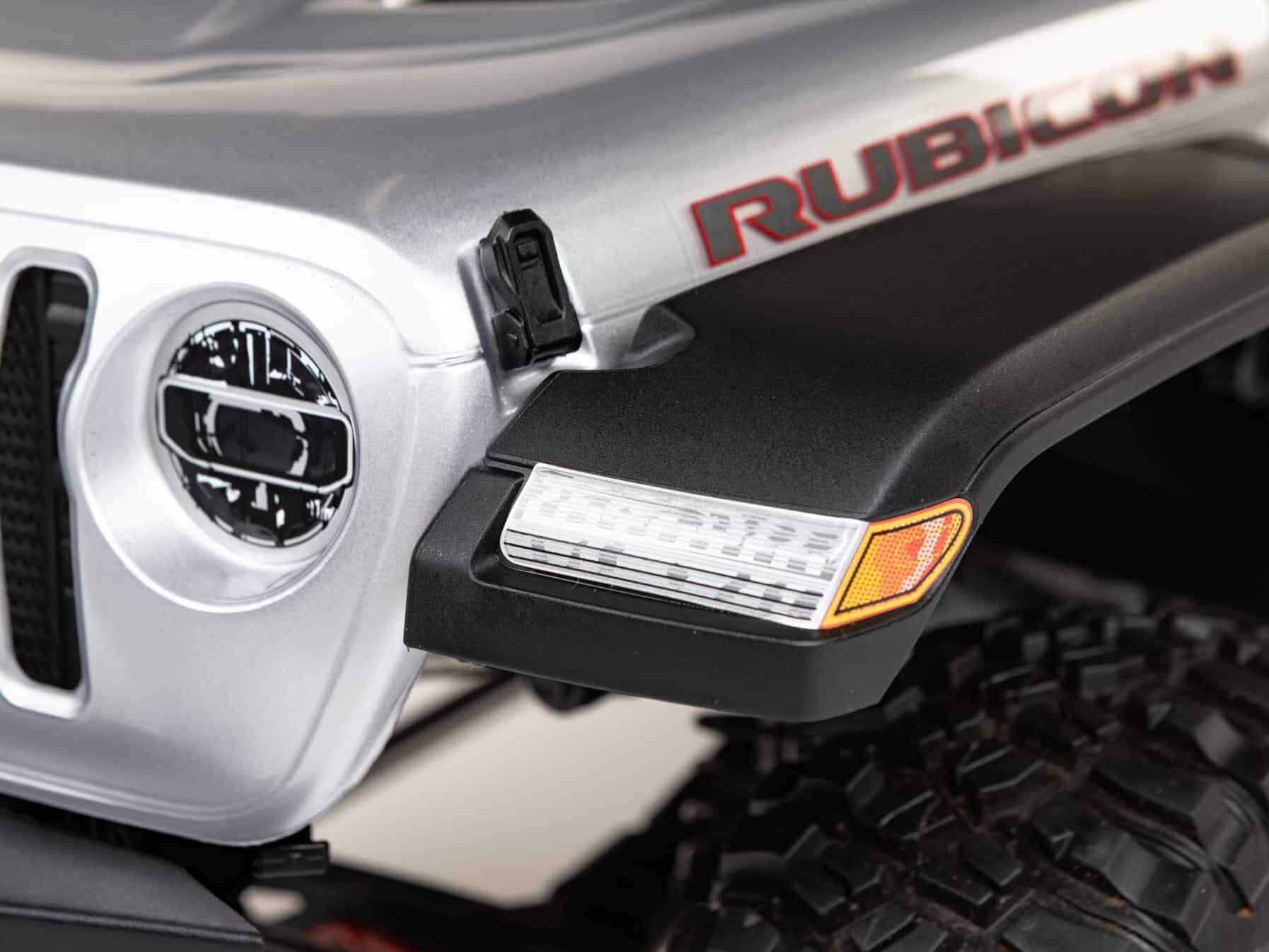

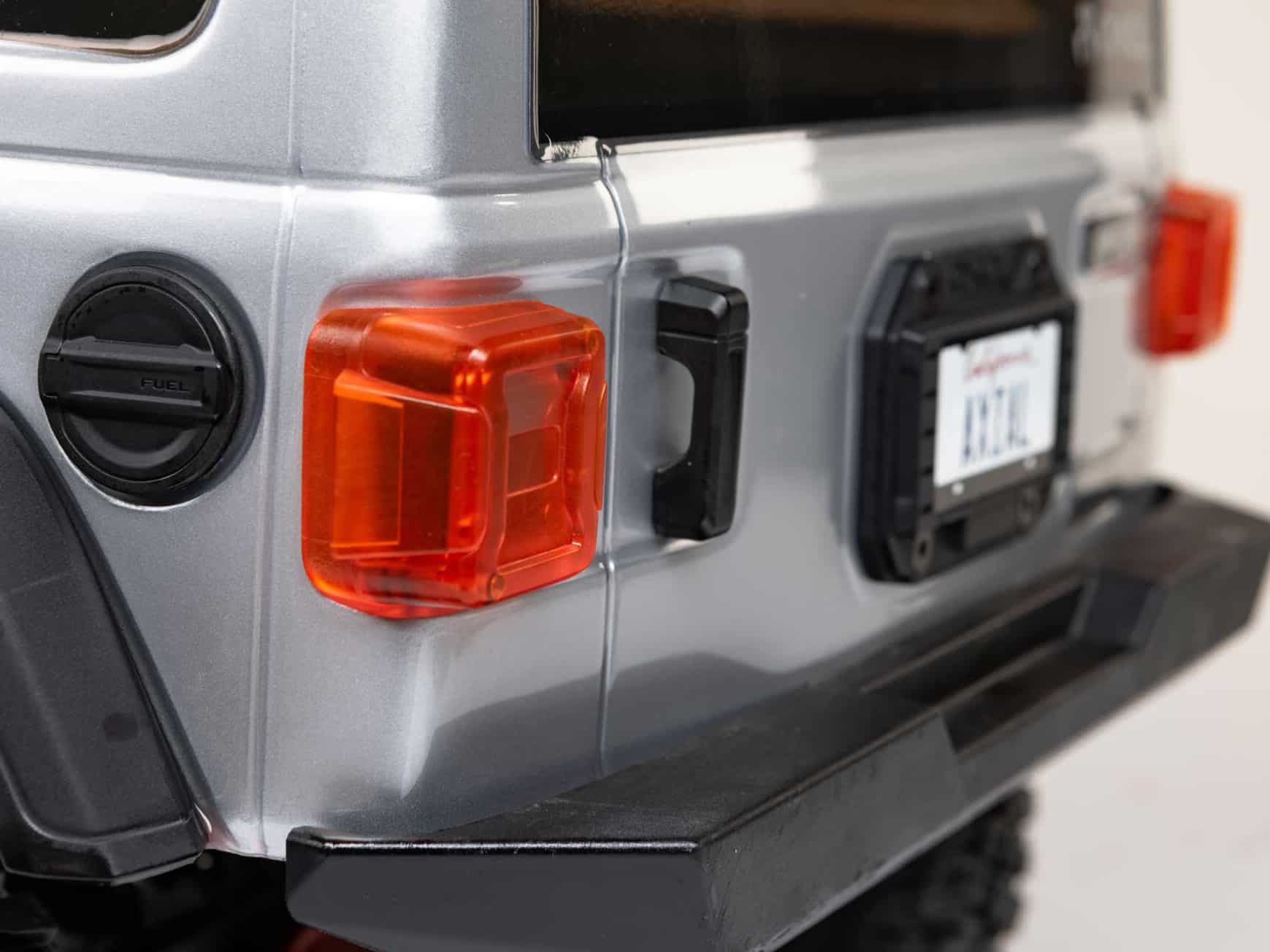

The Jeep® JLU Wrangler body mirrors its full-size counterpart, with many molded scale details throughout the interior and exterior that even the most demanding Jeep® enthusiasts will admire. LED headlights and taillights add to the realism after dark.

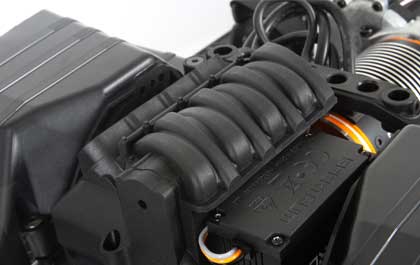

SCALE ENGINE DETAIL

A replica V8 engine covers and protects the included Spektrum™ Firma™ Smart ESC while adding to the model’s realistic appearance.

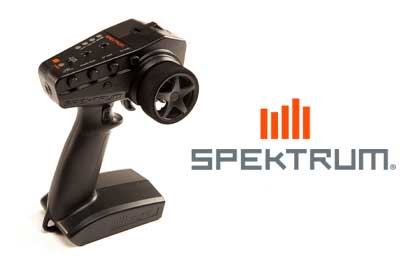

SPEKTRUM™ DX3™ 2.4GHz DSMR® TRANSMITTER

The included Spektrum™ DX3™ radio features exclusive DSMR® technology for superior range, response, and interference resistance. It’s also fully compatible with the Smart telemetry potential provided by the vehicle’s installed Spektrum™ Firma™ 120A Smart ESC.

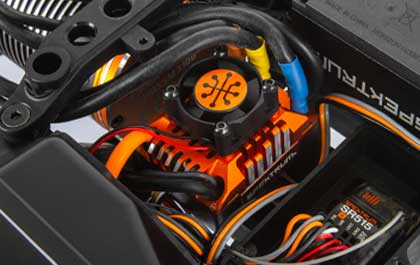

SPEKTRUM™ FIRMA™ CRAWLER 120A SENSORED BRUSHLESS SMART ESC

The factory-installed, waterproof Firma™ Crawler 120A Smart ESC delivers power and intelligence all-in-one — no additional vehicle modules or links required. This brushless ESC gives your SCX6™ Jeep® JLU Wrangler 4WD the ultimate drive while feeding important telemetry data straight to your DX3™ transmitter in real time.

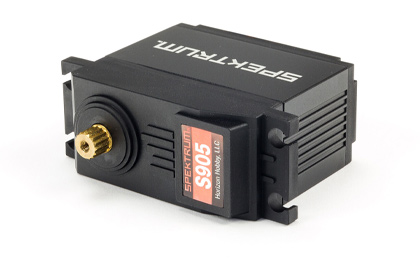

SPEKTRUM™ S905 STEERING SERVO

Included and installed, the waterproof Spektrum™ S905 Large-Scale Metal-Gear Servo produces impressive torque (537.72 oz-in at 6V, 555.50 oz-in at 7V) for responsive, dependable steering control. The chassis will also accept larger 1/5 scale servos, if desired, with the included adapter.

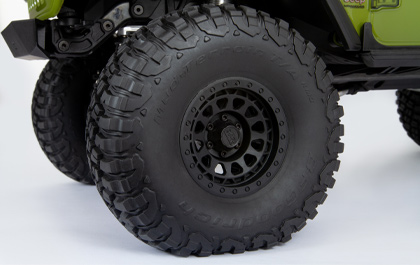

BFGOODRICH® KM3 TYRES

Massive, 7″ tall BFGoodrich® KM3 tyres provide excellent grip and ground clearance for dirt, rocks, and all other off-road trails. They’re mounted to licensed Black Rhino Primm injection-molded, 3-piece beadlock wheels so that tyres can be removed and replaced easily without gluing.

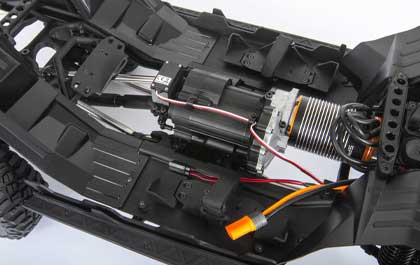

MULTIPLE BATTERY MOUNTING LOCATIONS

Battery trays are included on both the right and left sides of the chassis. You can install a single battery or add a second on the opposite side (using a parallel Y-harness, SPMXCA509) to extend run time.

Spec

• Scale 1/6th
• Weight 11.3Kg
• Height 370mm
• Length 776mm
• Width 378mm
