Tamiya XM01 PRO Chassis XM-01 58738

Tamiya XM01 PRO Chassis XM-01 58738

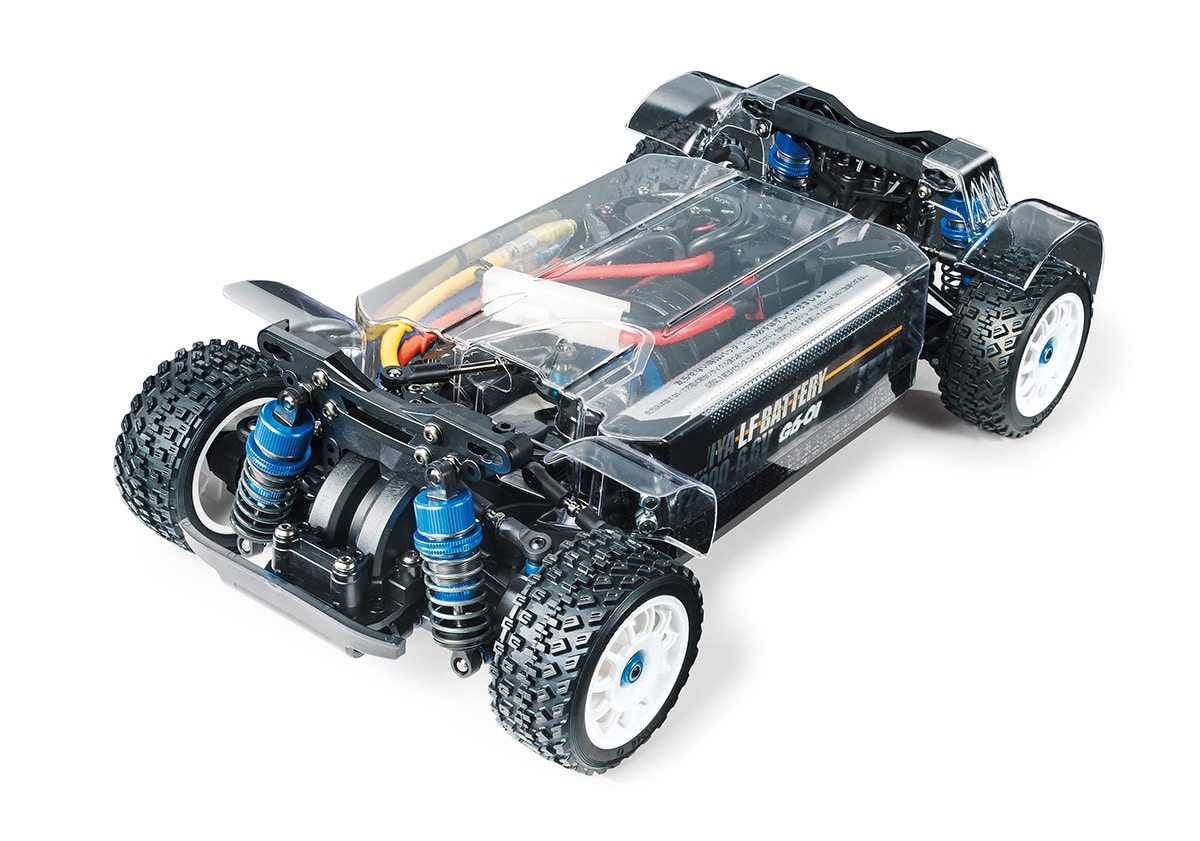

This shaft-driven 4WD chassis kit (M-chassis size) is another addition to the R/C rally line-up, and has features such as three types of wheelbase, new suspension components and a polycarbonate chassis cover. Add this chassis kit to your M-rally collection!

• Equipped with front mid-ship, longitudinal motor position.
• Changing rear section allows a choice from three wheelbases (short: 210mm, middle:225mm, long: 239mm). (ref. Image 3)
• Bathtub frame chassis and polycarbonate chassis cover plus front inside polycarbonate cover and rear section are newly-folded parts. Mud guards helps prevent dirt and dust from getting inside.
• New front C-hubs and rear uprights, plus lower suspension arms allow two types (about 8mm or 13mm) of ground clearances.
• Caster angle can be set at 5 degrees by suspension mounts. *For comparison, the XV-02 PRO chassis kit uses caster blocks which feature 6-degree caster angle.
• (XV-01 chassis: 10-degree caster angle)
• The drivetrain employs oil-filled gear differential for front and rear
• Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
• Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice versa for drive balance bias to rear.
• It features a longitudinal upright battery pack position in the centre-left for optimum balance.
• Front bumper with skid angle contributes to reduce surface contact. • Aluminium dampers are employed at the front and rear.
• M-Chassis 11-spoke racing wheels (Item 51394) are paired with 60D rally block tires (Item 51427).
• Front and rear universal drive shafts come as standard.
• Compatible with centre diff setup and separately sold slipper clutch.
• Low-profile servo is recommended. (Standard servo can be used, but it comes into contact with the front inside polycarbonate cover
• Please note that this chassis requires separately sold body, battery pack, motor, ESC and R/C equipment
