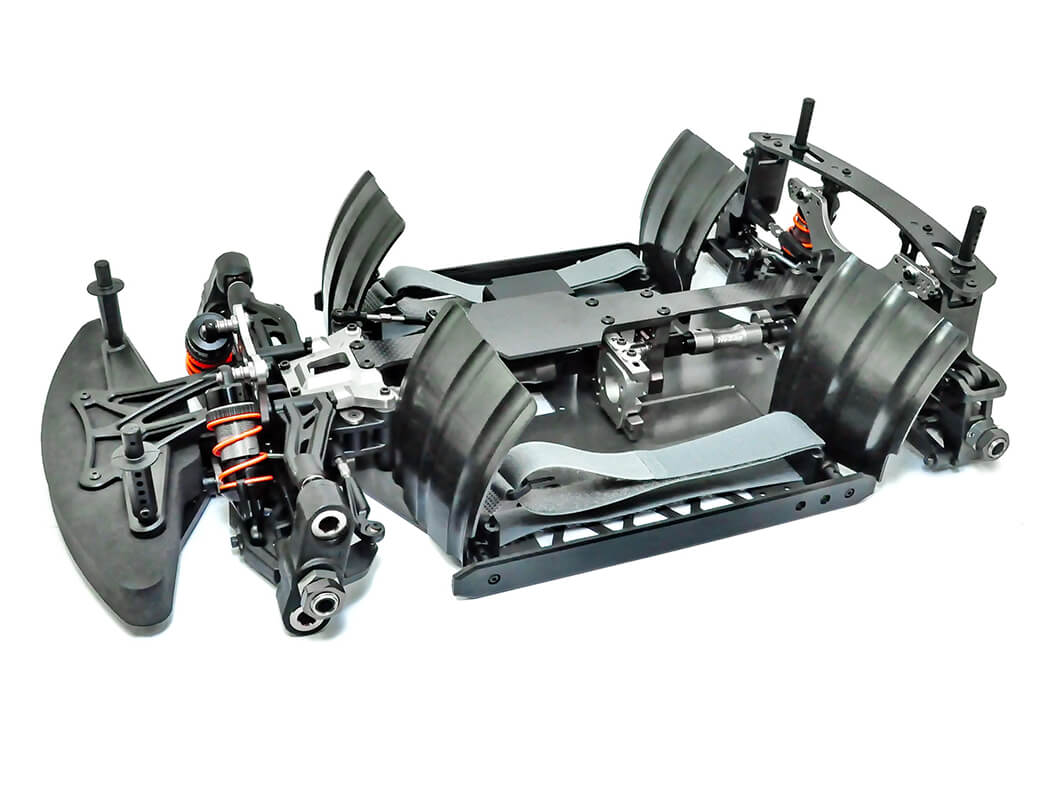

Hobao Extreme Vte2 1/8th On Road EP Roller 80% Pre-Assembled HB-VTE2-8

Hobao Extreme Vte2 1/8th On Road EP Roller 80% Pre-Assembled HB-VTE2-8

FEATURES:

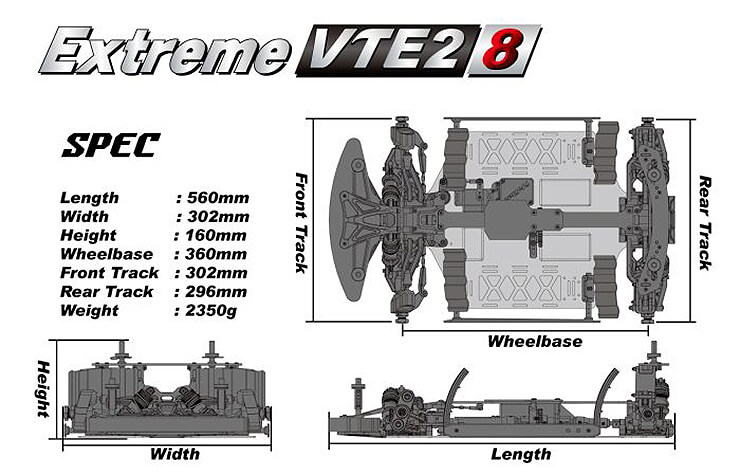

• Lightweight design, the car weight is 2360g.

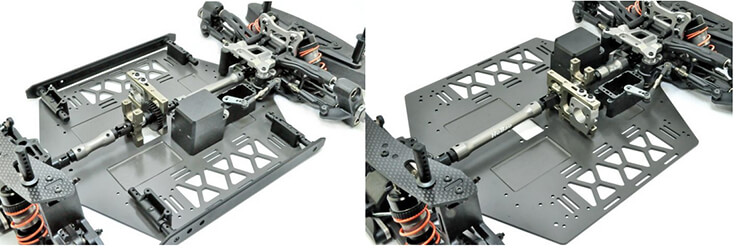

• Versatile Motor Mounting Options for Optimal Performance.
• Our innovative chassis design allows for flexible motor mounting, ensuring you achieve the perfect balance and performance for your needs.
• [Front Mounting] Ideal for motors up to 119 mm in length.
• [Rear Mounting] Accommodates motors up to 140 mm in length.

Lightweight Rear Floating Body Mount Set.
– Fitting for VTE and VTE2 series.

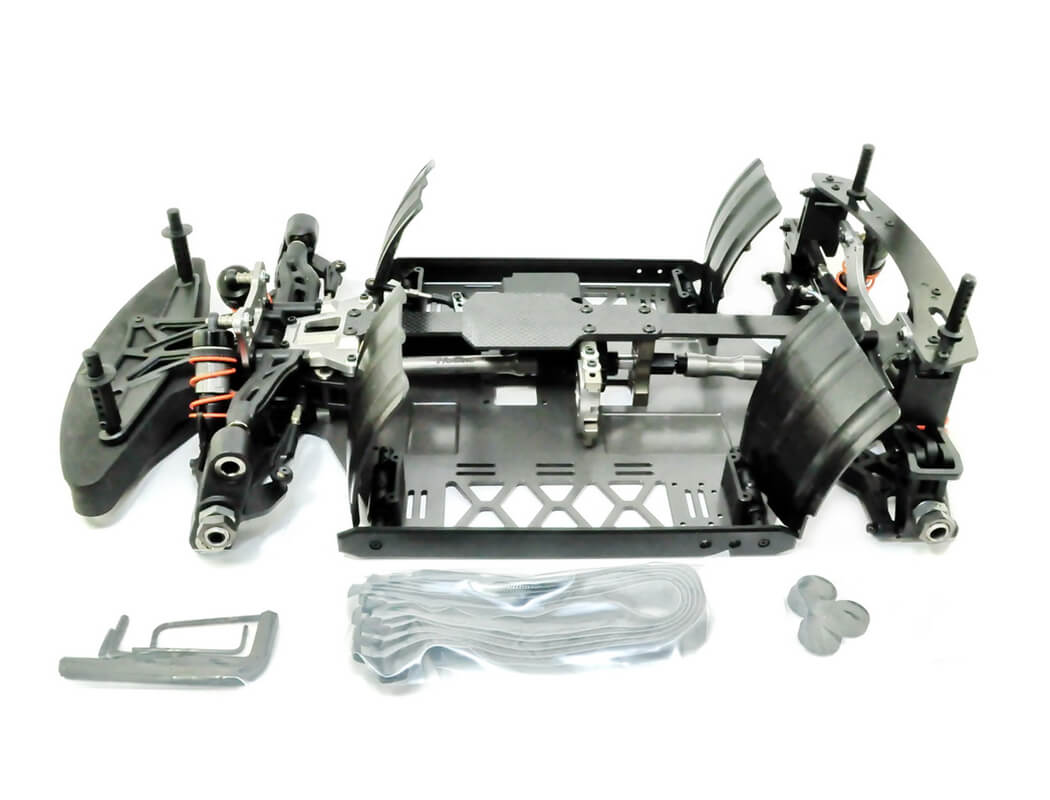

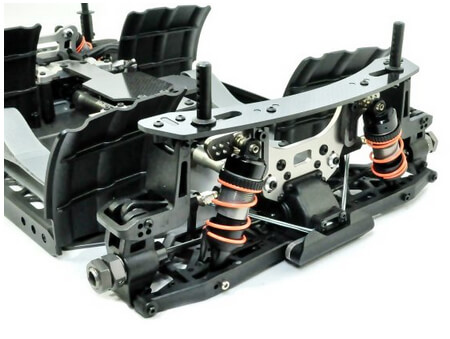

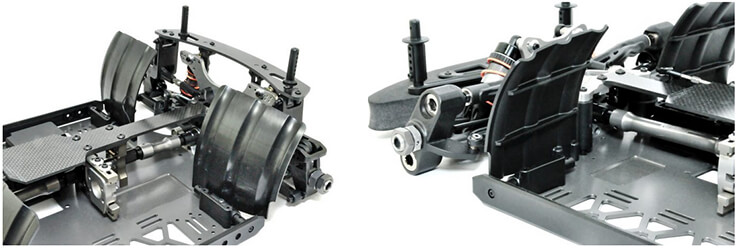

Front and Rear Splash Guards.

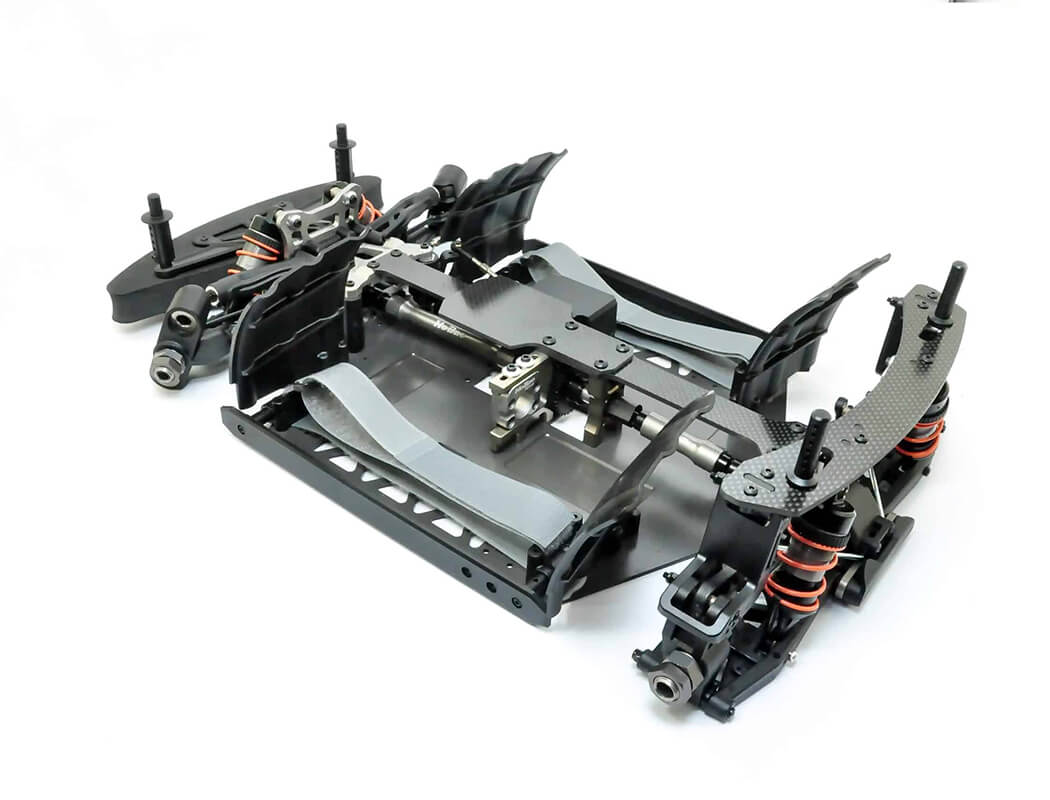

Adjustable Side Body Supports.
3-Position Adjustable Battery Stopper on Chassis for Different Sizes of Batteries

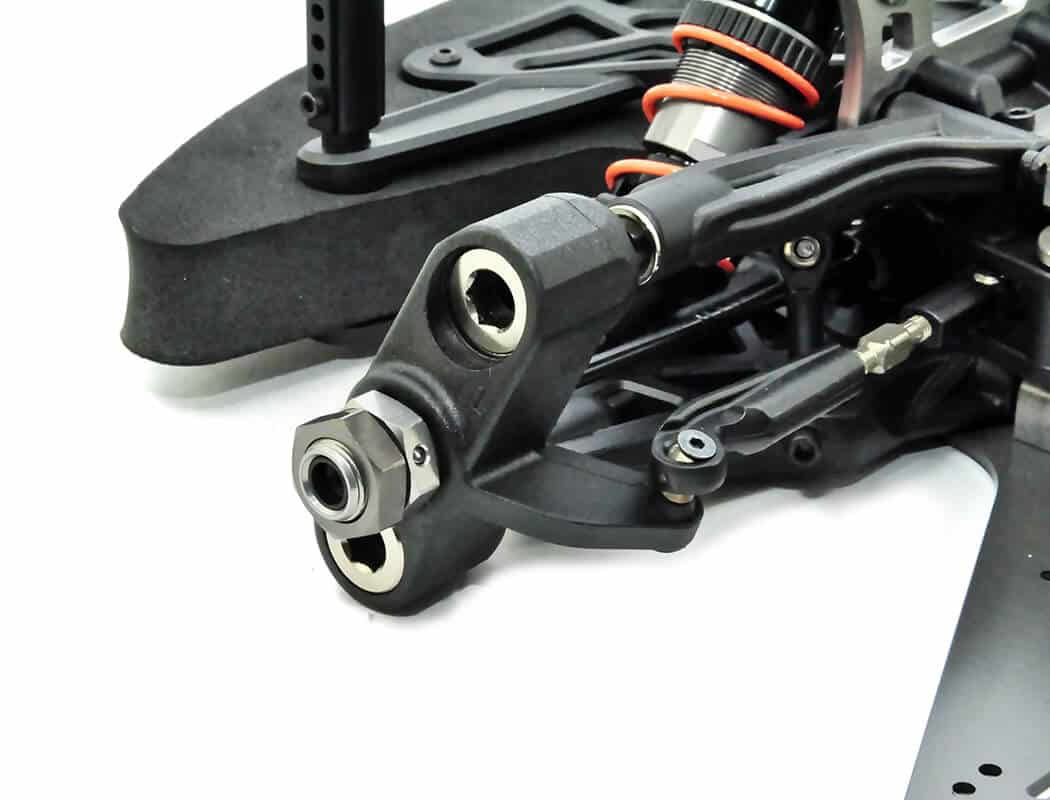

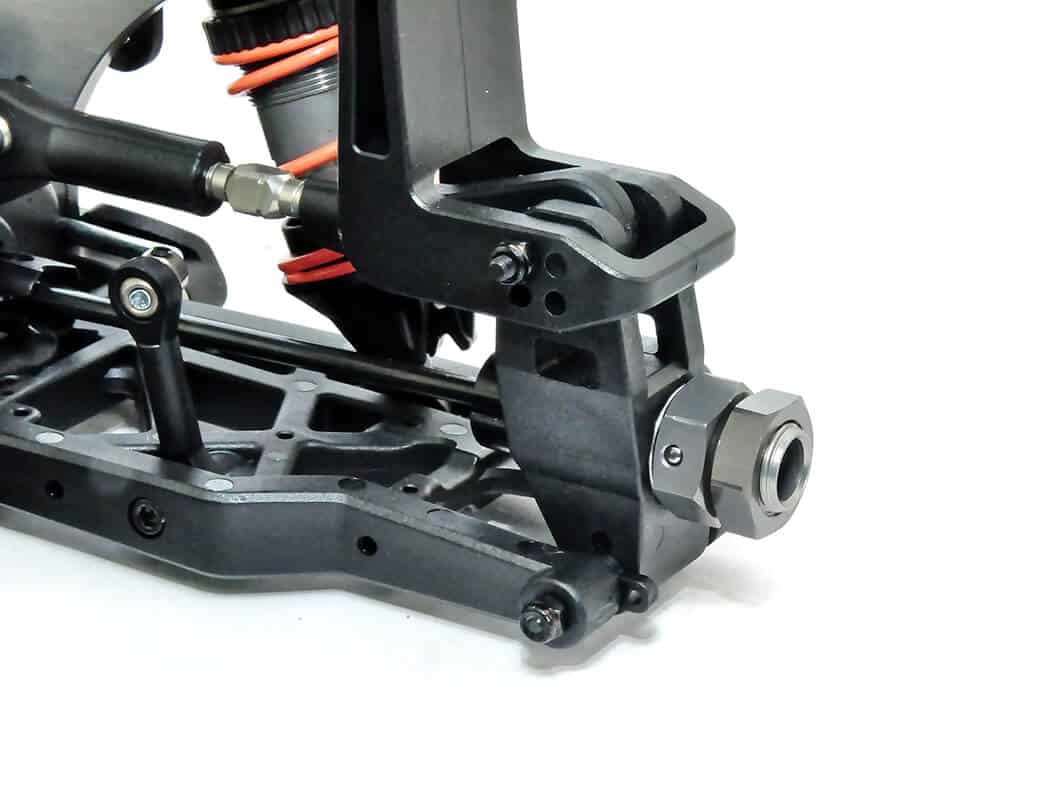

Rear Wheel Hub (Length +2mm) with Anti-Loose Wheel Nut.
Rear Suspension Mount +4mm.
– Optional rear Suspension Mount (RF) HOP-0176 and (RR) HOP-0177 with POM pills HOP-0178 and HOP-0179.

Drive: 4WD Drivetrain:
– Hardened Steel Front Universal Joint Driveshaft and Rear Dogbone.
– Optional 5.3mm Universal Driveshaft HOP-0159 & 5.0mm Rear Dogbone HOP-0161.
– New Heavy duty lightweight “Steel + Aluminum” Front & Rear Center Driveshaft.

Front & Rear Differential: Bevel Gear Type, New Anti-Leakage Differential Housing, Hardened Steel Lightweight Cup.
– Front differential filled with 500K silicone oil.
– Rear differential filled with 50K silicone oil.
– Optional 40T Ring Gear HOP-0146 and 15T Pinion Gear HOP-0147.
– Optional Bevel Gear HOP-0139.
– Optional Differential Housing : HOP-0148.

Center Spool: 34T Spur Gear (MOD 1), 8mm Shaft, Hardened Steel Cup.
– Fit for 8mm bore pinion gear.
– Max. 48T Spur Gear can used.

Aluminium Spool Mount HOP-0153.

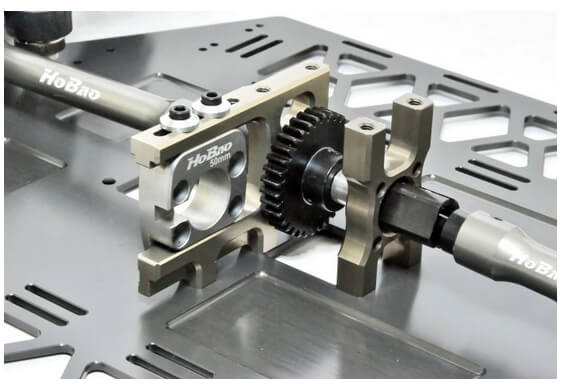

Motor Mount: CNC Aluminum, Cam Lock Style.
– Standard Part HOP-0149 for max. O.D 50mm motor.
– Optional Part HOP-0150 for max. O.D 57mm motor.

• Shocks: Oil-filled 17mm Big Bore Shock with #600 silicone oil, 4mm Diameter Shaft.
  – Spring: 0.45 kgf/cm, L= 35mm, Orange.

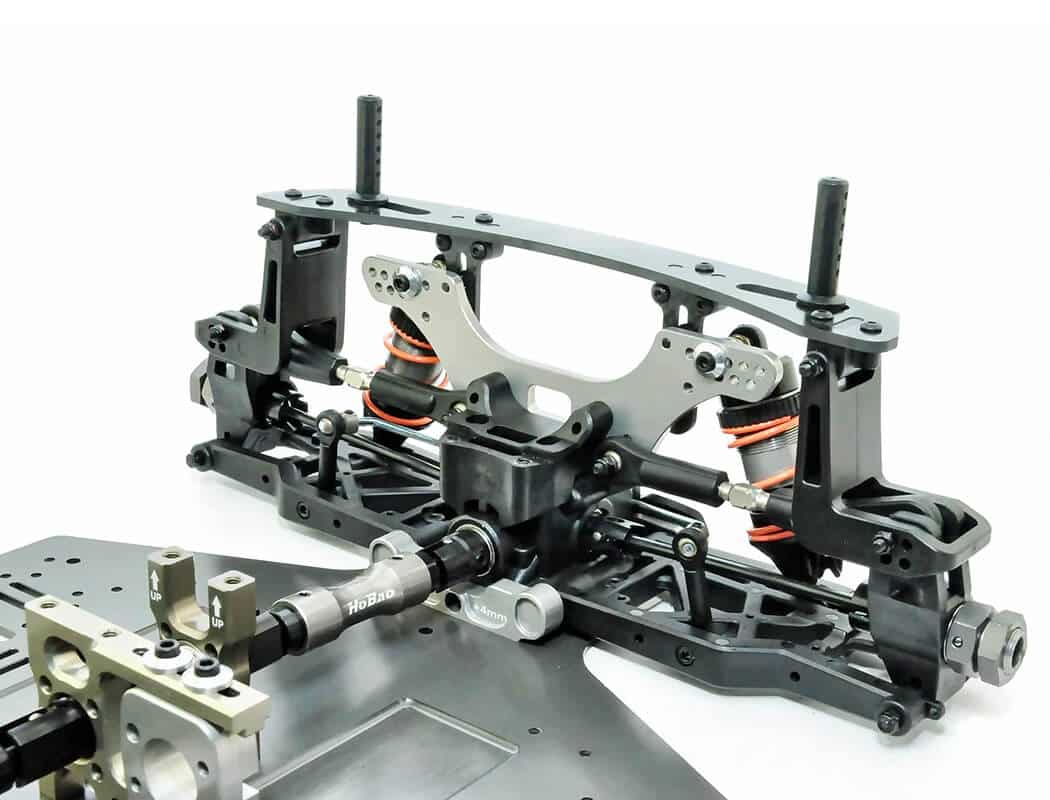

  Shock Tower: 4mm thick CNC Aluminium.
• Ball Bearing: Full Set included.

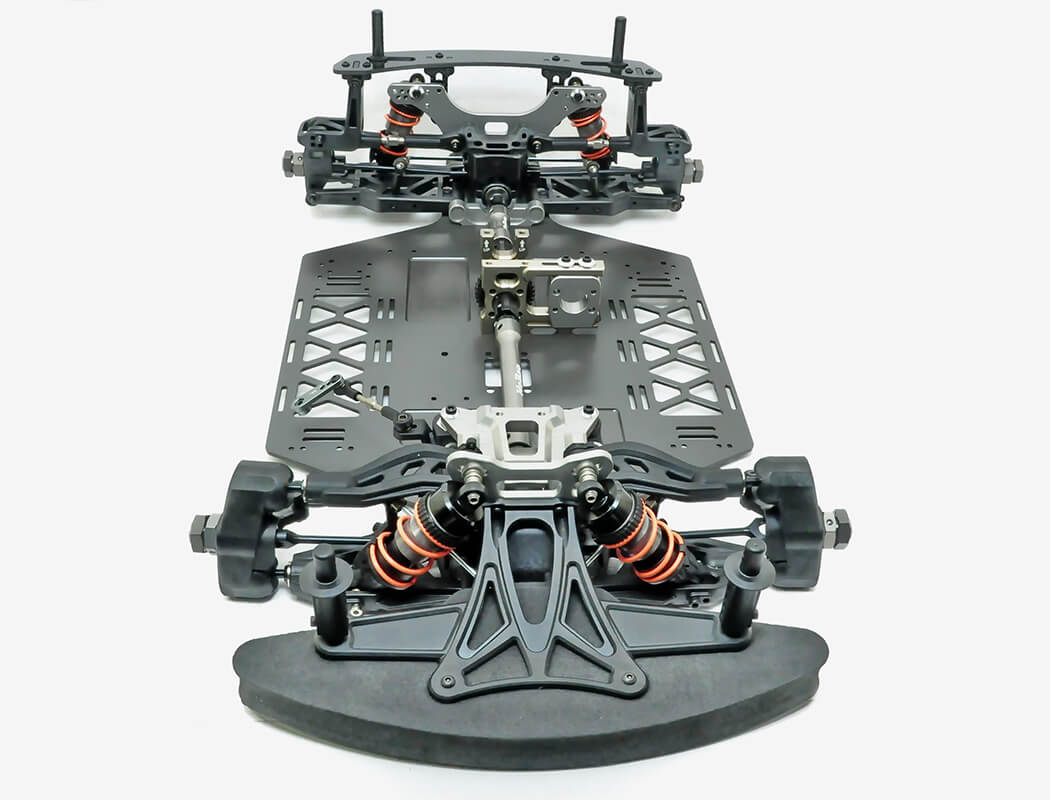

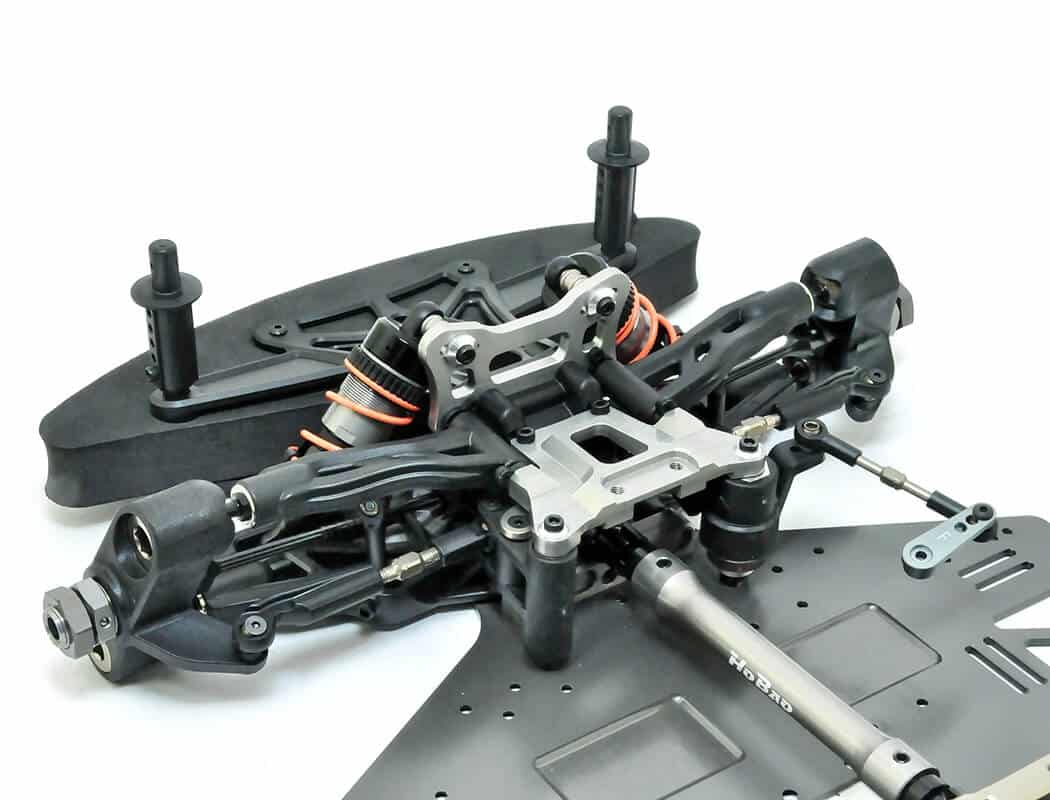

• Suspension: Front and Rear Sway Bars, Front PBS, Reinforced Composite Upper Arm and Lower Arm.
• Caster: Adjustable.
• Camber: Adjustable.
