Tamiya Fast Attack Vehicle (2011) 58496

Tamiya Fast Attack Vehicle (2011) 58496

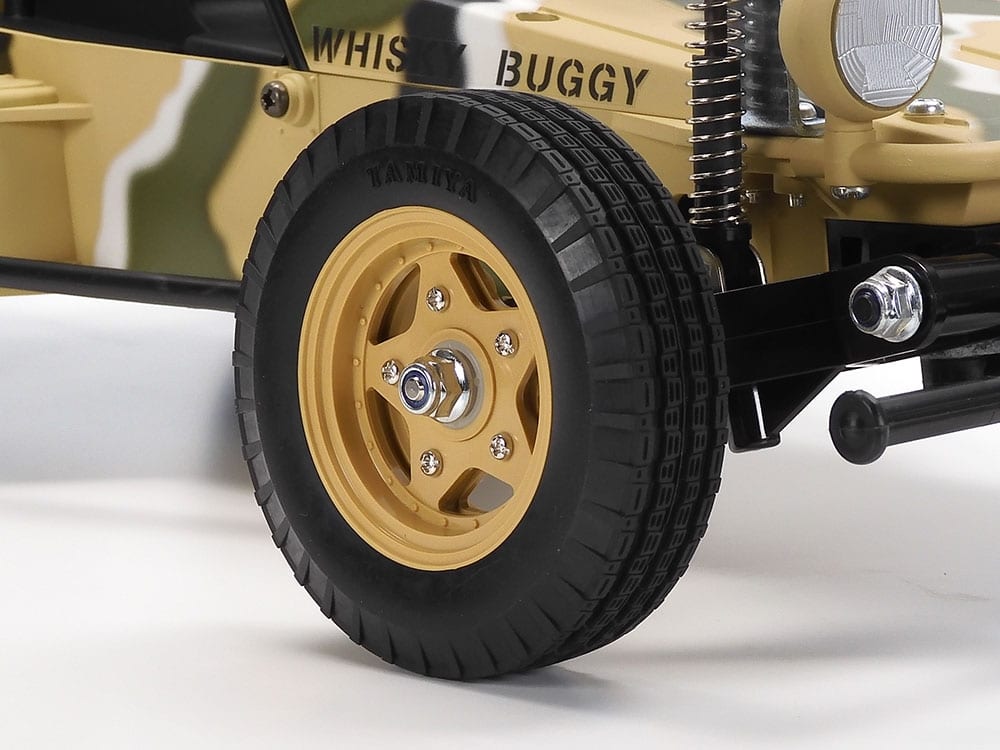

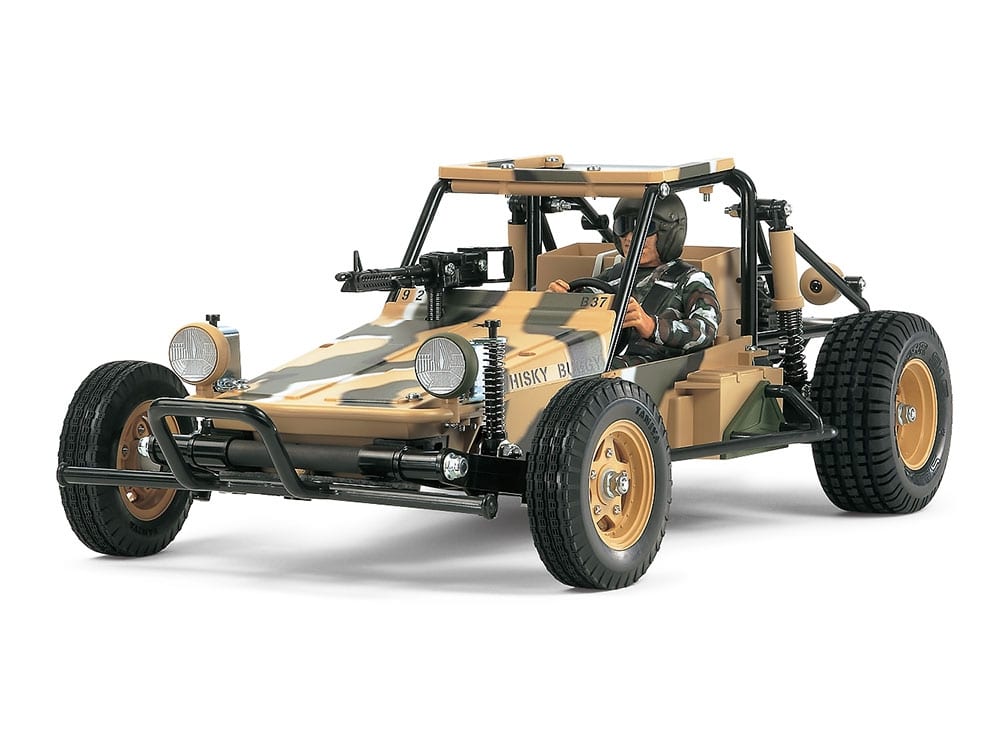

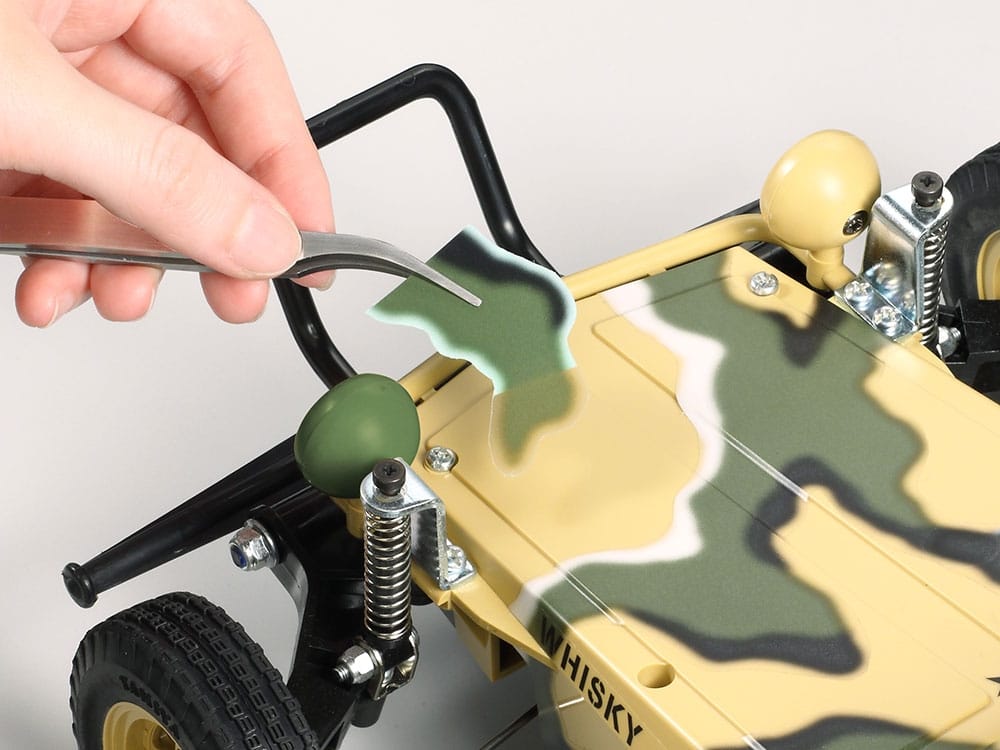

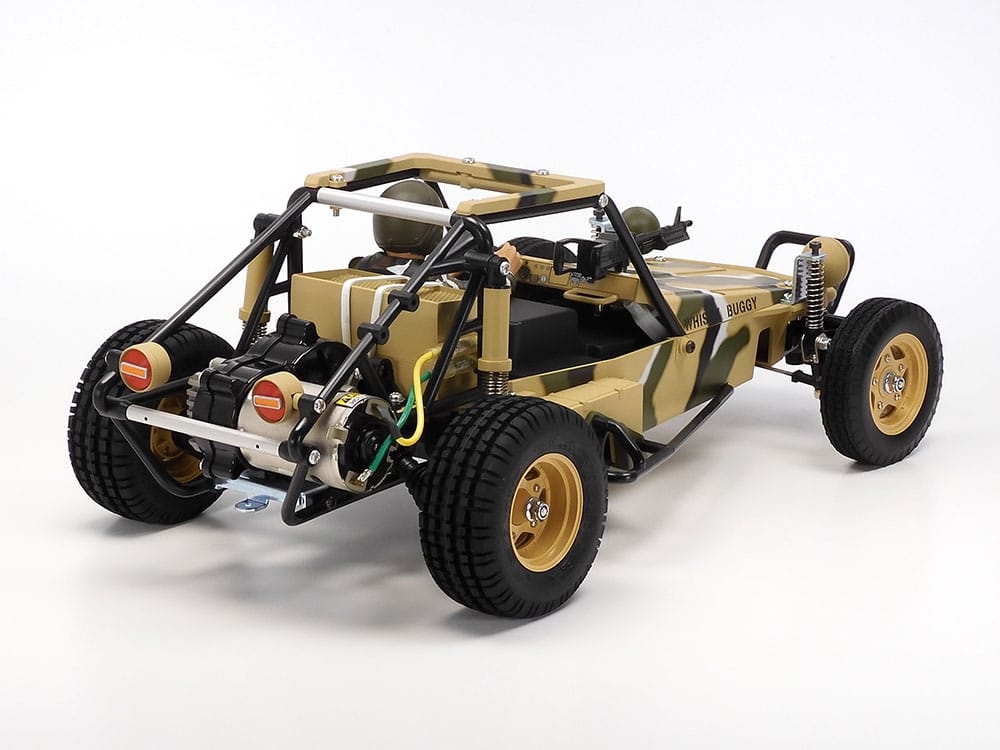

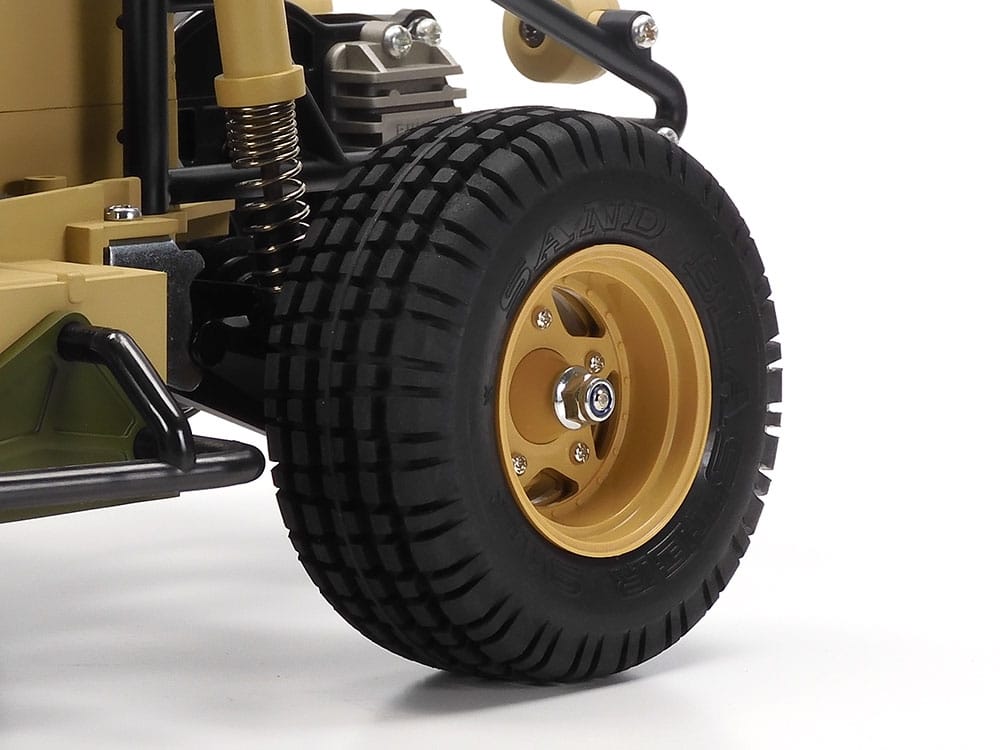

The Fast Attack Vehicle was an R/C buggy that reproduced the look of a type of special military vehicle. This re-released version features improvements to meet the modern R/C standard while maintains the same basic chassis design as the original 1984 model. It also features a realistic body, roll cage, and a driver figure as well as equipment such as a machine gun, which can all be finished with plastic model paints. In addition, the black/white/olive drab camouflage pattern can be easily depicted with kit-included stickers. Semi-pneumatic grooved front and rear tires with block-pattern tread offer superb traction on off-road surfaces.

Low & Tough Chassis

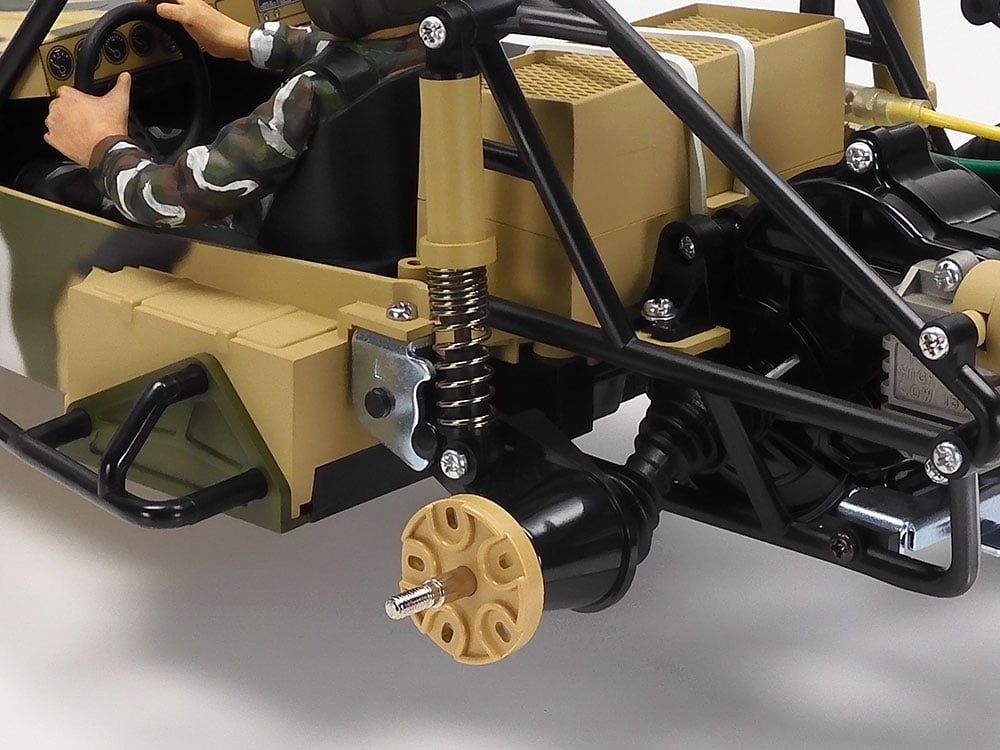

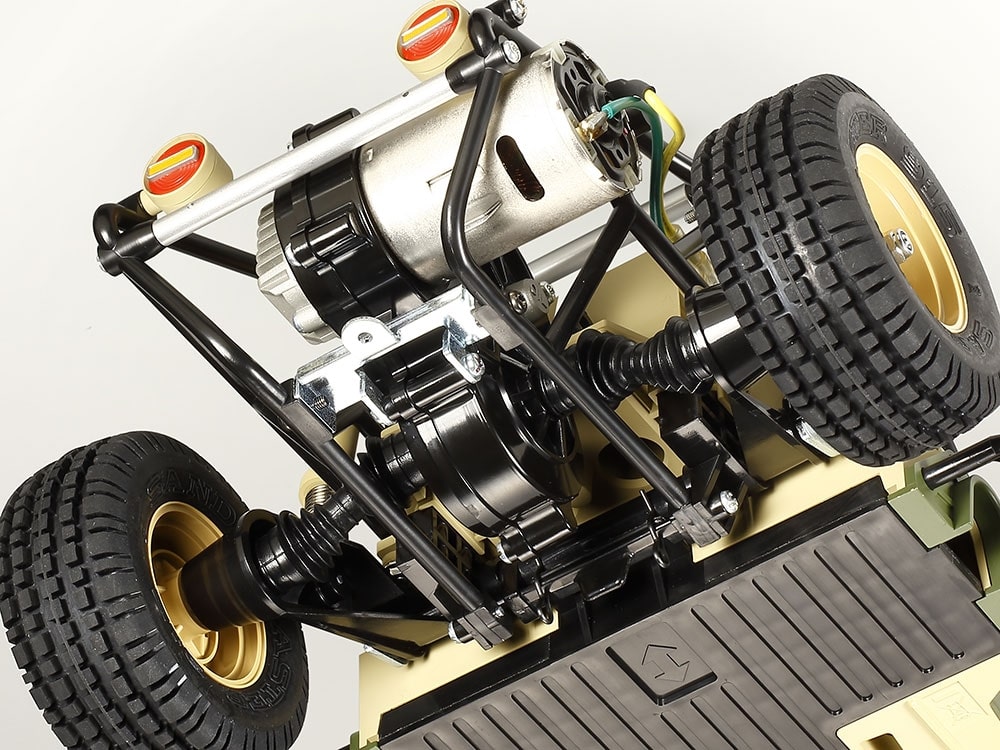

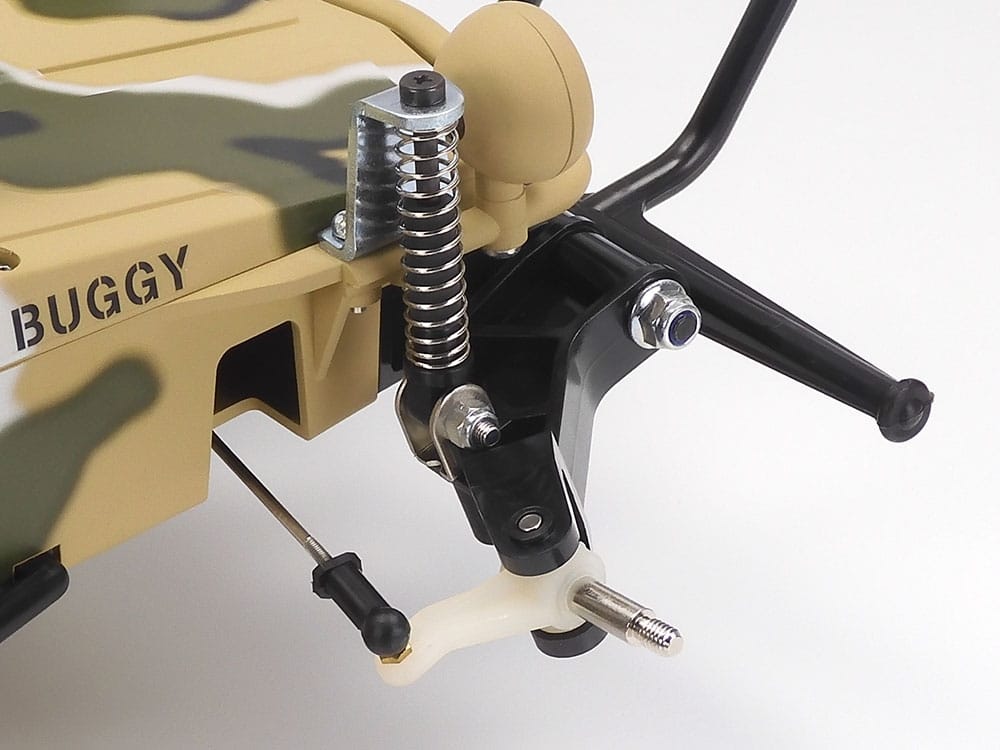

Durable lightweight ABS frame is matched with a battery case which is compatible with modern power sources such as Tamiya Racing Packs and LF batteries. 4-wheel independent suspension consists of coil springs and trailing arms, featuring 186mm-wide tread to ensure excellent off-road stability. An enclosed gearbox protects differential gears from dirt and debris and enables smooth cornering. In addition, driveshafts feature dog bone type joints and dust covers to enhance durability.

Specifications

• Length: 430mm
• Height: 150mm
• Width: 220mm
• Weight: 1,200g (excluding R/C equipment, battery, etc.)
• Wheelbase: 255mm
• Tread (F/R): 186mm
• Tire Width/Diameter: 19/74mm (Front), 35/83mm (Rear)
• ABS Resin Bathtub Chassis
• Rear-Wheel Drive
• 3-Bevel Differential Gears
• F/R Trailing Arm Suspension
• F/R Friction Dampers
• Gear Ratio＝1：7.54 or 1:9.05
• Type 540 Motor included

Required to complete:

• 2-channel radio
• Steering servo
• 7.2volt battery
• Battery charger
• Tamiya Paint

Download Manual

58496 Manual
